Travis Industries 864 ST Installation Instructions

Blower

Hide thumbs Also See for 864 ST:

Packing List:

• Rheostat Assembly (with wiring harness)

• Snap Disc

Make sure power to the fireplace has been turned off prior to installation (disable the service breaker).

Do not connect 110-120 VAC to the gas control valve or wiring system of this fireplace.

It is easier to install the blower prior to connecting the gas line.

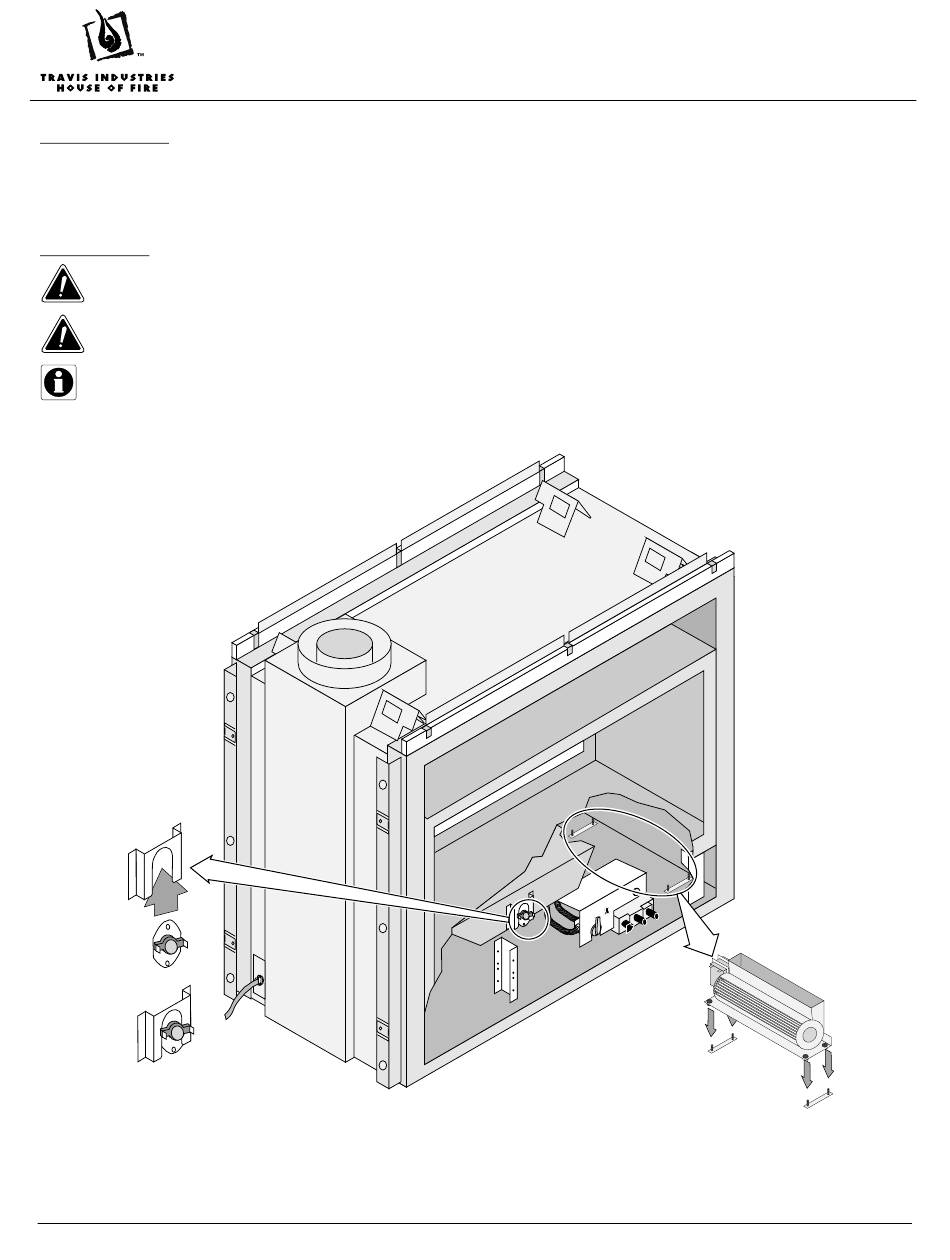

Slide the snap

disk into the snap

disk bracket.

Page 1 of 2

864 ST Blower Installation Instructions

Place the blower so the grommets on the blower base insert

over the four studs on the base of the fireplace. Make sure all

four grommets are properly located (this helps prevent

vibrations).

NOTE: The blower is held in place by gravity. If transporting the

fireplace after installing the blower, make sure it is properly

located.

11/30/07

# 99000161

• Blower Assembly

• (2) # 8 x 3/8" Black Screws (for Rheostat Assembly)

Travis Industries, Inc.
