Summary of Contents for Jumpking JKOV914SL1

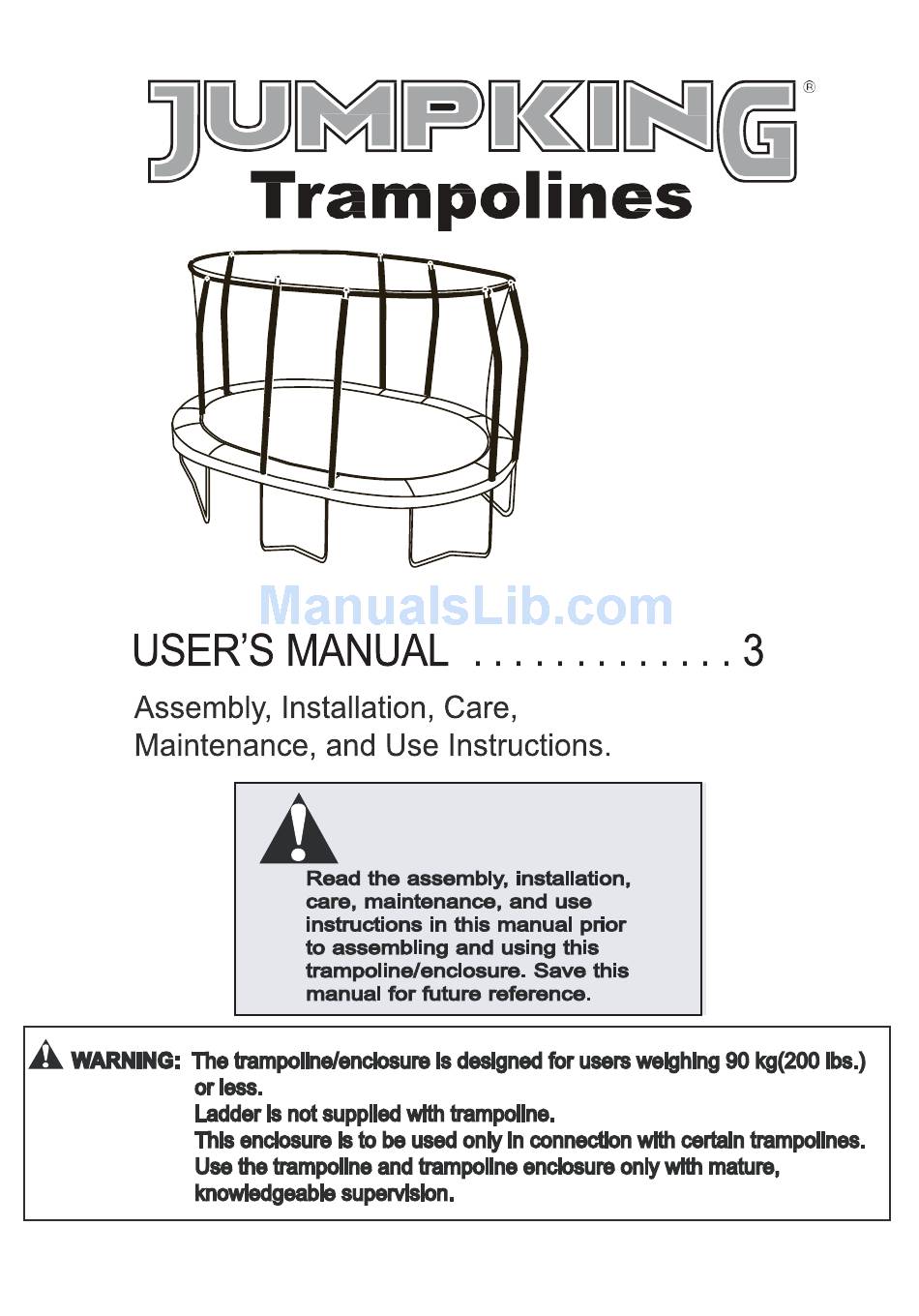

- Page 1 Model#JKOV914SL1 / JKOV914SL2 9ft x 14ft Oval Combo WARNING YJ USA Corp., 3970 Lindbergh Drive Addison, TX 75001 www.jumppod.com 1-877-927-8777...
- Page 3 9ft x 14ft Oval Combo...
- Page 4 1. Trained Spo er supervision is recommended. 2. Must place the trampoline on lawn, bark wood chip, sand or cushioning materials. 3. Maintain a free space of minimum 2500mm on all sides of the trampoline. This area should not included concrete, bitumen, brick, or other hard surfaces as these can cause serious injuries.
- Page 5 24. Learn fundamental bounces and body posi ons thoroughly before trying more advanced skills. A variety of trampoline ac vi es can be carried out by performing the basic fundamentals in various series and combina ons, performing one fundamental a er another, with or without feet bounces between them. 25.
- Page 6 19 Avoid bouncing when tired. JKOV914SL1 While keeping the head erect, focus eyes on the trampoline toward the perimeter. JKOV914SL1 The placard shown at the below must be attached to the trampoline enclosure by the owner (see assembly page 21).
- Page 7 1-877-927-8777,...
- Page 11 sharply spot.
- Page 15 Lay out all of the parts in groups : x 2 pcs 4 Toprails with T-connector with welded tube A marking. 2 Toprails with T-connector B marking. x 2 pcs 2 Toprails with T-conenctor C marking. 2 Toprails with T-connector with welded tube D marking. 2 Toprails with T-connector with welded tube E marking.
- Page 16 You will need two people for this next step. Turn over 1 x Assembly 1 (DB) and 1 x Assembly 1 (AA) Join by inserting D into T-connector A. (Make sure spring hole lines up with gap in connector) Repeat this step so you are left with 2 halves of Trampoline Carefully join the 2 halves together.
- Page 17 This diagram shows the initial order of spring attachment. ， = Bottom spring hole = Top spring hole Important: Attach the springs in the order shown in the diagram. This will help to distribute the tension, making assembly easier. Firstly, locate the 2 colored V-rings. These V-rings are to be attached at points 1 and 2 using a silver spring.
- Page 18 Lay the Frame Pad (8) on the frame. Double D-rings on the middle of pad should be fixed exactly on the right of each T-connector of frame. Do not use the trampoline without the Frame Pad (8), which is designed to reduce the likelihood of injury to the user from coming in con- tact with the trampoline frame.
- Page 19 Using the included plastic tie, attach the Safety Placard (10) to the frame near the point where jumpers will climb onto and off the trampoline. The trampoline is now fully assembled. Make sure that all parts are securely attached. Familiarize yourself and all users of the tram- Frame poline with the safety precautions, use and instructional materials, and care and mainte-...
- Page 20 Lay out Top G3 Pole (14), joint each section Top G3 Pole (14) Connector to a straight line as shown. Assemble the remaining Top G3 Pole (14) in the same way. Spread out G3 Pole and Joint each section to one straight line. Spread the Netting (16) on the trampoline bed, insert a Top G3 Pole (14) into the opening of Top Sleeve on the Netting (16).
- Page 21 Note: During steps 12 and 13, you will “sew” the lower edge of the Netting(16) to the V-rings on the bed using the Cords(18). Locate the V-ring closest to the door. Thread one end of a Cord(18) through the lower edge of the Netting(16) above the V-ring and then thread the Cord through the V-ring.
- Page 22 Stake It is possible for the trampoline/enclosure be blown about by high wind. If you anticipate high winds, the trampoline/enclosure should be moved to a sheltered location, disassembled, or tied down to the ground with ropes and stakes (not included). At least three ropes and three stakes should be used.
- Page 23 Toprail layout T-Connector+Welded tube T-Connector Bottom Enclosure pole Top Tube(With T-connector) Top Enclosure pole B marking x 2 pcs C marking x 2 pcs Self-tapping screw Top Tube(With T-connector + Welded G3 Pole (Black) tube) Hemisphere Cap ( This part has been atta- A marking x 4 pcs ched to the top of the Top Tube (12).) D marking x 2 pcs...
