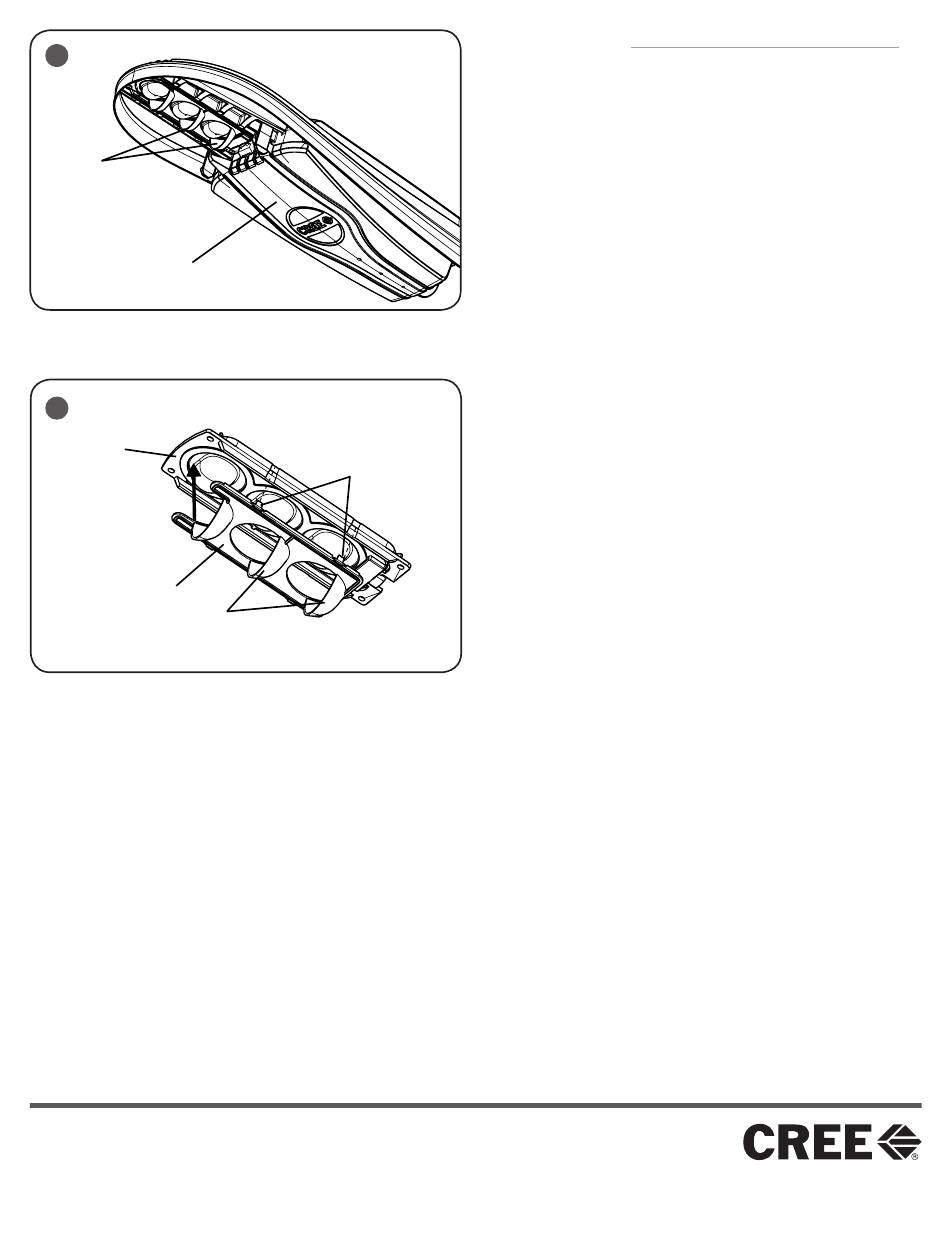

3
Eyelets
Luminaire Base
4
LED Module
Back Light Shield
Eyelets
© 2014 Cree, Inc. All rights reserved. For informational purposes only. Content is subject to change.
See www.cree.com/lighting for warranty and specifications. Cree® and the Cree logo are registered
trademarks, and XSPR™ is a trademark of Cree, Inc.
2 of 2
Back Light
Shield Tabs (4)
3 OPTIC BACK LIGHT SHIELD
STEP 1:
Ensure that the orientation of the backlight
has the eyelets pointing away from the
luminaire base and carefully place on the
surface of the LED Module. See Figure 3.
STEP 2:
Snap the Back Light Shield tabs (4) into the
LED Module. See Figure 4.
If LED Module doesn't allow for
NOTE:
tabs to snap in, place supplied double
sided tape onto the recessed rectangle
located in the middle of the back side
of the shield. Once tape is placed on the
shield, firmly press shield down onto LED
Module.
www.cree.com/lighting
LPN00259X0001A1_A
