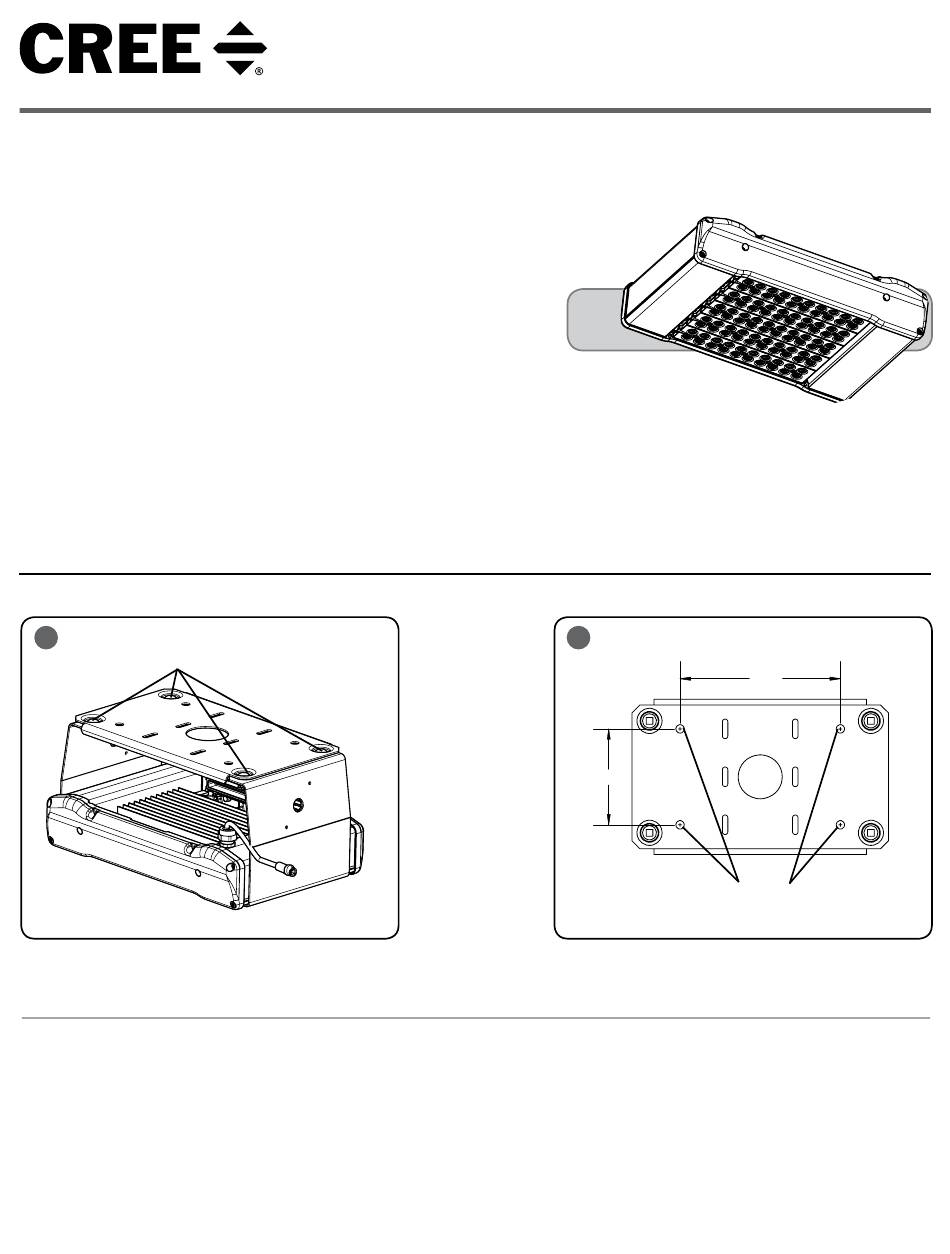

Cree EDGE XPS Transportation Series Installation Instructions

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions should always be
followed including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1. DANGER- Risk of shock- Disconnect power before installation.
DANGER – Risque de choc – Couper l'alimentation avant l'installation.
2. This luminaire must be installed in accordance with the NEC or your local
electrical code. If you are not familiar with these codes and requirements,
consult a qualified electrician.
Ce produit doit être installé conformément à NEC ou votre code électrique
local. Si vous n'êtes pas familier avec ces codes et ces exigences, veuillez
contacter un électricien qualifié.
3. Damage to luminaire will result when improper voltage is applied. Verify
luminaire is suitable for supply voltage by checking electrical label on luminaire.
SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE

TO INSTALL:

1
Mounting Bracket
Bolts (4)

MOUNTING - DIRECT MOUNT

STEP 1:
Remove the (4) nuts securing the retained Mounting Bracket Bolts to
the top of the mounting bracket. Remove the top piece of the mounting
bracket assembly from the fixture. See Figure 1.
STEP 2:
Align the mounting bracket removed in Step 2 on an appropriate
mounting surface. Using customer supplied 3/8" minimum mounting
bolts, secure the luminaire to the mounting surface. See Figure 2.
1 of 2
2
6.0
STEP 3:
Once the mounting bracket is secured to the mounting surface, re-
secure the luminaire using the nuts and screws removed in Step 2 to
180 in./lbs..
STEP 4:
Connect leads of supplied extension cordset to electrical supply per
the Electrical Connections section on the back page.
CREE EDGE
XPS Transportation Series
Tunnel Mount
INSTALLATION INSTRUCTIONS
10.0
Mounting Holes For Customer
Supplied 3/8" Mounting Bolts
CI367X04R1
™
