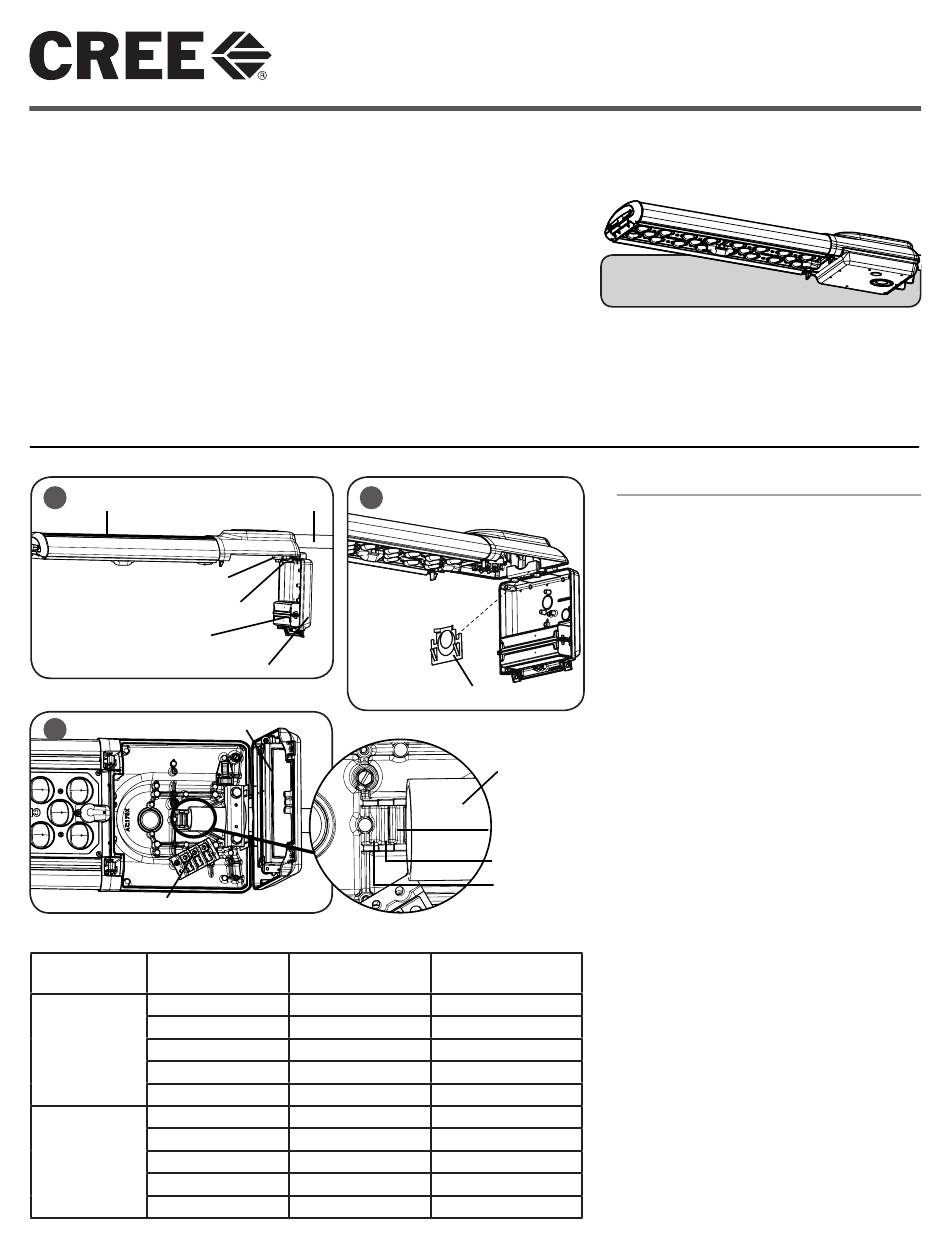

Cree LEDway Series Installation Instructions

IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed
including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. To avoid the possibility of electrical shock, turn off power supply before installation
or servicing. Installation and servicing should be performed by qualified personnel.
2. When closing cover of fixture, be sure all wires are inside housing to avoid pinching
wires.
3. If NEMA photo control is installed refer to NEMA Receptacle section for instructions.
4. Product must be installed in accordance with NEC or your local electrical code.
If you are not familiar with these codes and requirements, consult a qualified
electrician.
5. If mounting bolts are completely removed in the field they should be hand threaded
(prior to use of power tools) to ensure proper engagement of the thread when
re-installing. Failure to pre-start threads may result in cross-threading or stripping of
the bolts during reinstallation.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
TO INSTALL:
1
Heatsink
Mounting Clamp
Bracket
Mounting Bolts (2)
See Table 1
Driver
Cover in Open
Cover in Open
3
Position
Terminal Block
TABLE 1
Pipe Size Pipe Position
+5.0 degrees tilt
+2.5 degrees tilt
1.66 in O.D. 0 degrees (no tilt)
-2.5 degrees tilt
-5.0 degrees tilt
+5.0 degrees tilt
+2.5 degrees tilt
2.38 in O.D. 0 degrees (no tilt)
-2.5 degrees tilt
-5.0 degrees tilt
1 of 3
2
Pole
Position
Bolt Torque
Required (in-lbs)
400
400
400
700
850
300
300
300
300
300
Splashguard
Fitter Pipe end
3rd Stop Boss
2nd Stop Boss
Final Stop Boss
Bolt Torque
Required (N-m)
45
45
45
79
96
33
33
33
33
33
LEDway® Series
High Output LED Street Light
Includes: Single and Double Modules
INSTALLATION INSTRUCTIONS
STANDARD MOUNTING
STEP 1:
DO NOT remove splashguard from fixture. If
mounting fixture to 1.25 IP pipe (1.66 O.D.),
there is no need to modify the splashguard. If
mounting fixture onto 2.0 IP pipe (2.38 O.D.),
remove the knockout of the splashguard
thru the rear opening of the fixture while the
fixture is closed. See Figure 2.
STEP 2:
To open cover, hold fixture by heat sink
with the light bars facing down and hinges
facing away. Simultaneously pull latches
and the cover to swing open. Splashguard
may dislodge from fixture, but should be
repositioned once ready to mount. See
Figure 1.
STEP 3:
Slide fixture on to pole through opening on
the rear of housing and through splashguard.
STEP 4:
To level fixture, use bubble level located inside
housing. Adjust leveling of fixture from side
to side. To level from front to back, slide pole
to different step in upper housing. Each step
changes the angle in 2.5° increments. See
Figure 3.
STEP 5:
Once desired position is achieved, tighten
(2) mounting bolts to the appropriate torque
values specified in TABLE 1. See Figure 1 (use
9/16" wrench socket).
IMPORTANT - DO NOT exceed these
torque levels on the mount bolts. Exceeding
recommended torque value resulting in
excessive deformation of mounting bracket
will cause stripping of mount hardware which
could lead to an unsafe mounting condition.
STEP 6:
Reference "Electrical Connections" section
for completing electrical connections.
LPN00207X0001A0
