Cree RSWL Installation Instructions

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions should always be
followed including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1. DANGER- Risk of shock- Disconnect power before installation.
DANGER – Risque de choc – Couper l'alimentation avant l'installation.
2. This luminaire must be installed in accordance with the NEC or your local
electrical code. If you are not familiar with these codes and requirements,
consult a qualified electrician.
Ce produit doit être installé conformément à NEC ou votre code électrique
local. Si vous n'êtes pas familier avec ces codes et ces exigences, veuillez
contacter un électricien qualifié.
3. If NEMA photo control is installed refer to NEMA
®
instructions.
4. If mounting bolts are completely removed in the field they should be hand
threaded (prior to use of power tools) to ensure proper engagement of the
thread when re-installing. Failure to pre-start threads may result in
cross-threading or stripping of the bolts during reinstallation.
SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE
TO INSTALL:
Mounting
Adjustment
1
Bracket
Steps
Pole
Mounting Bracket Bolts

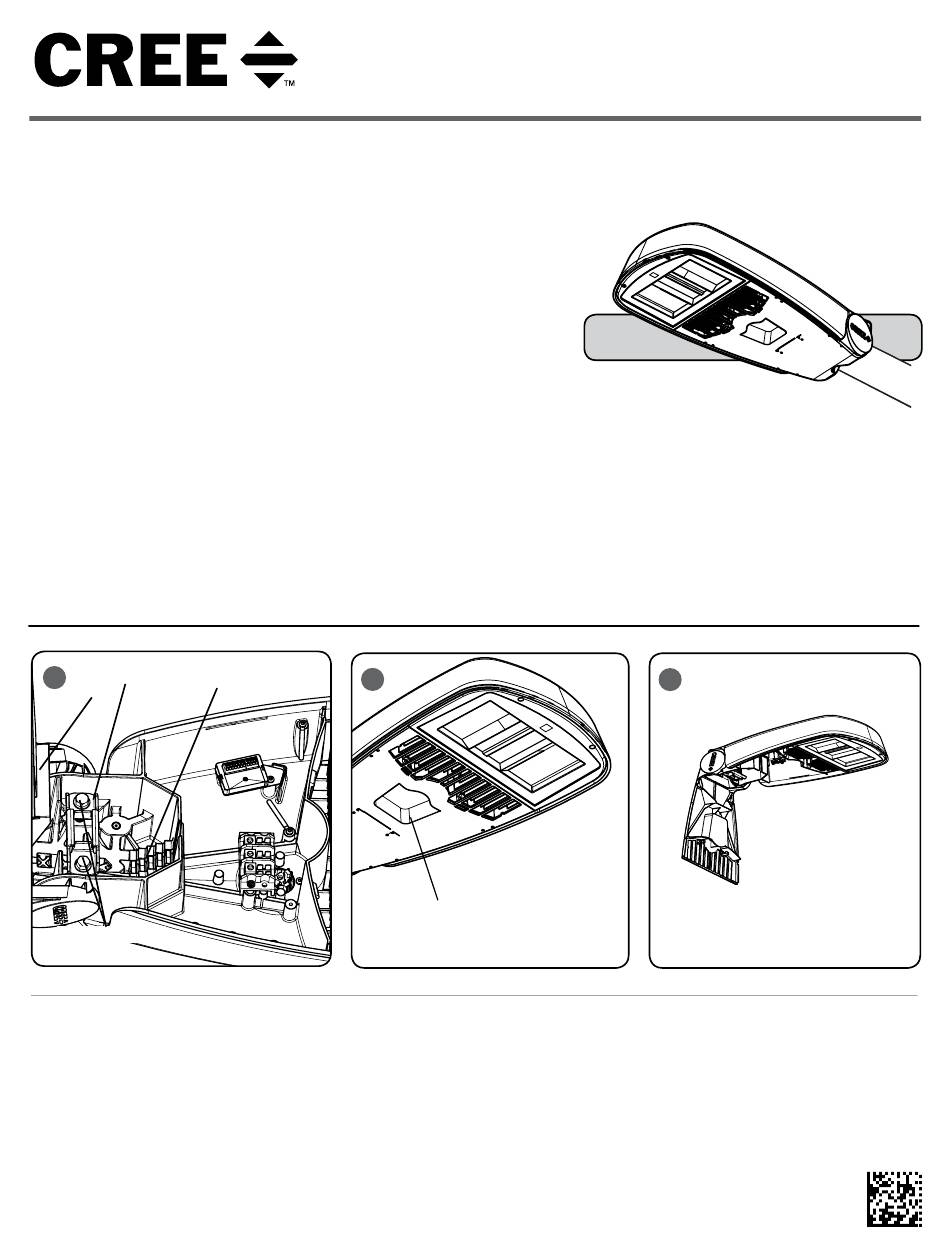

LUMINAIRE INSTALLATION
STEP 1:
Slide fixture on to a minimum 8" tenon,
through opening on the rear of housing. See
Figure 1.
STEP 2:
Once desired position is achieved, open cover
by holding fixture and pulling the handle and
allow the cover to swing open. See Figure 2
and 3.
1 of 3
Receptacle section for
®
2
Cover's Handle
STEP 3:
To level fixture, use bubble level located
inside housing. Adjust leveling of fixture from
side to side by rotating fixture on pole. To
level from front to back, slide pole in or out
to different step in upper housing. Each step
changes the angle in 2.5 increments
STEP 4:
NOTE: When tightening bolts make sure
to alternate between bolts to keep bracket
straight.
RSW Series
LED Street and Area Light
Includes:
INSTALLATION INSTRUCTIONS
3
Tighten mounting bolts to the appropriate
torque values specified in TORQUE VALUES
table on page 2. See Figure 1 (use 9/16"
socket wrench).
STEP 5:
Reference Electrical Connections section for
completing electrical connections.
LPN00295X0006A0_A
RSWL
