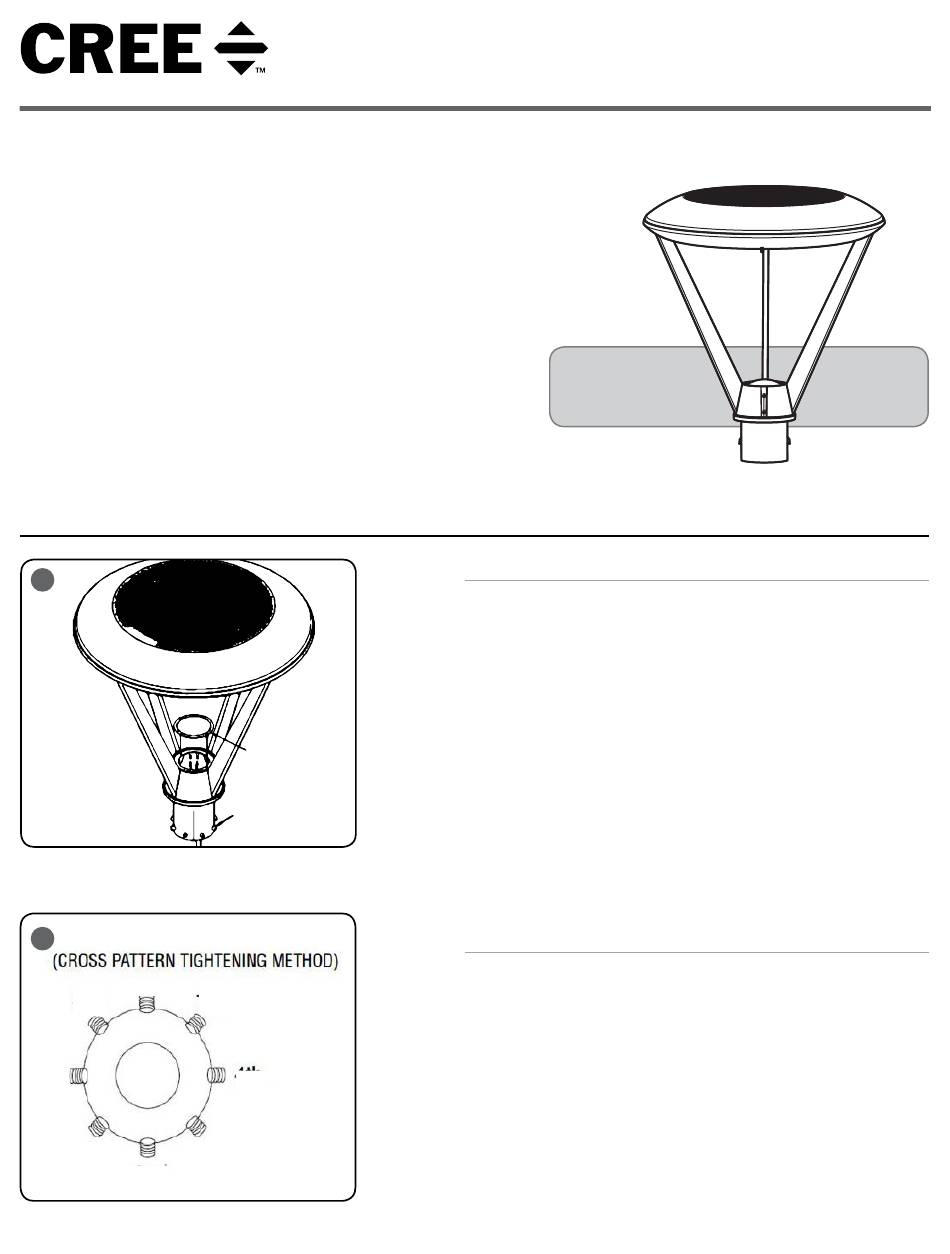

Cree Edge ARE-EDR-R4 Installation Instructions

Ed area round post top mount

Advertisement

Quick Links

IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always
be followed including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1.
To reduce the risk of electrical shock, turn off power supply before
installation or servicing.
2.
This luminaire must be installed in accordance with the NEC or your
local electrical code. If you are not familiar with these codes and
requirements, consult a qualified electrician.
SAVE THESE INSTRUCTIONS FOR FUTURE
NOTES:
1.
This carton contains complete fixture and fitter assembly.
2.
Tenon mount fixtures used on aluminum or reinforced fiberglass poles
must be mounted on 3" (77 mm) O.D. tenons.
3.
Tenon mount set screws should be tightened to 120 in-lbs (13 N-m)
TO INSTALL:
1
2
6
th
3
1
rd
8
th
5
th
2
nd
1 of 2
REFERENCE
Hub Cover
3/8" Set Screws
st
4
th
7
th
TENON MOUNT
STEP 1:
Remove hub cover located at the top of the hub by removing the two Phillips
screws. See Figure 1.
STEP 2:
Feed supply conductors through base of hub. Strain relief may be provided by
tying a knot in conductors.
STEP 3:
Slid hub over the tenon (2-3/8 to 3") of pole until hub is resting on top of
tenon.
STEP 4:
Secure fixture to pole tenon by tightening the 3/8" set screws. Tighten set
screws by alternating from one side of the hub to the other, following the
cross pattern tightening method in Figure 2, until all set screws have been
tightened to 120 in-lbs (13 N-m).
STEP 5:
Replace hub cover from Step 1 after completing electrical connections
section.
DIRECT MOUNT TO 5" ROUND POLE
STEP 1:
Remove hub cover located at the top of the hub by removing the two Phillips
screws. See Figure 1.
STEP 2:
Feed supply conductors through base of hub. Strain relief may be provided by
tying a knot in conductors.
STEP 3:
Slide hub into 5 inch pole until hub is resting on top of pole.
STEP 4:
Secure fixture to pole by tightening the center mounting bolt to
140 in.lbs (16N•m).
STEP 5:
Replace hub cover from Step 1 after completing electrical connections
section.
Cree Edge
LED Area Round Post Top Mount
Includes: ARE-EDR-R3, R4, R5
INSTALLATION INSTRUCTIONS
CI088X03R4
