Cree OSQ HO Series Installation Instructions

Led area light bird spike

Advertisement

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions should always be
followed including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1.
DANGER- Risk of shock- Disconnect power before installation.
DANGER – Risque de choc – Couper l'alimentation avant l'installation.
SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE
TO INSTALL:
1
2
Clip
1 of 2
Clips (4)
Clip
Insert Here
Insert Here
OSQ HO Series
INSTALLATION INSTRUCTIONS
INSTRUCTIONS D'INSTALLATION
BIRD SPIKES

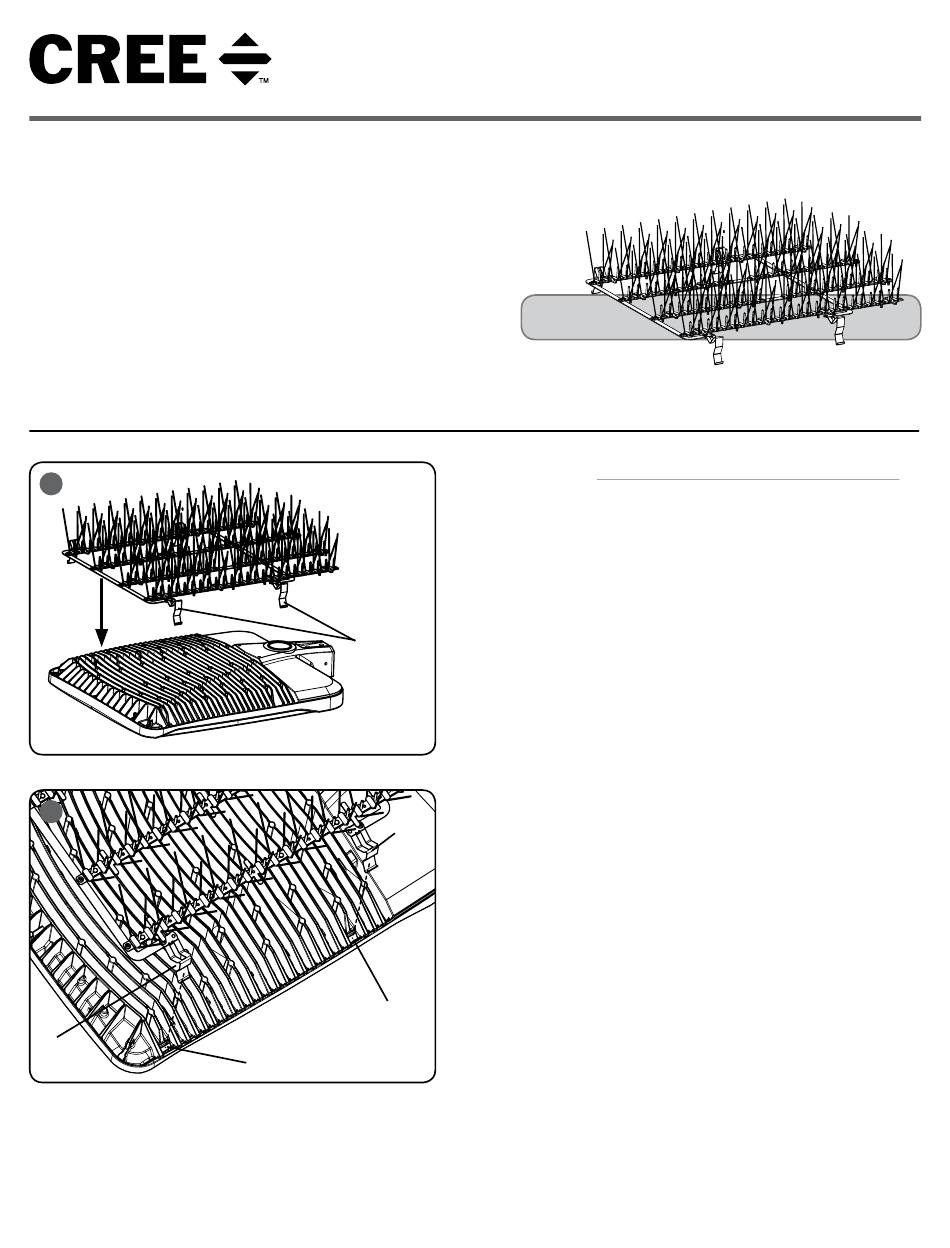

STEP 1:

Bring the Bird Spike assembly to the top of the
Figure 1.
luminaire. See

STEP 2:

Locate the 4 clips on the Bird Spike and insert each clip
into the hole on the top side of the housing shown in
Figure 2.

STEP 3:

Push down on the raised flat surface of the clip to
extend the clip to the under edge of the housing. See
Figure 3 on the back page.

STEP 4:

Pull clip flush with housing bottom ridge. (clips do not
automatically engage housing ridge by themselves. See
Figure 4
.
on the back page

STEP 5:

Release raised flat surface of clip to engage clip. See
Figure 5
.
on the back page
LED Area Light
Bird Spike
