Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
Instruction No
Instruction No
Version
Version
9491340
9491340
1.0
1.0
A8901430
A8901430
© Volvo Car Corporation
Part. No.
Part. No.
Roof box
Roof box
Roof box- 9491340 - V1.0
Page 1 / 10
Advertisement
Related Manuals for Volvo Dynamic 65
Summary of Contents for Volvo Dynamic 65

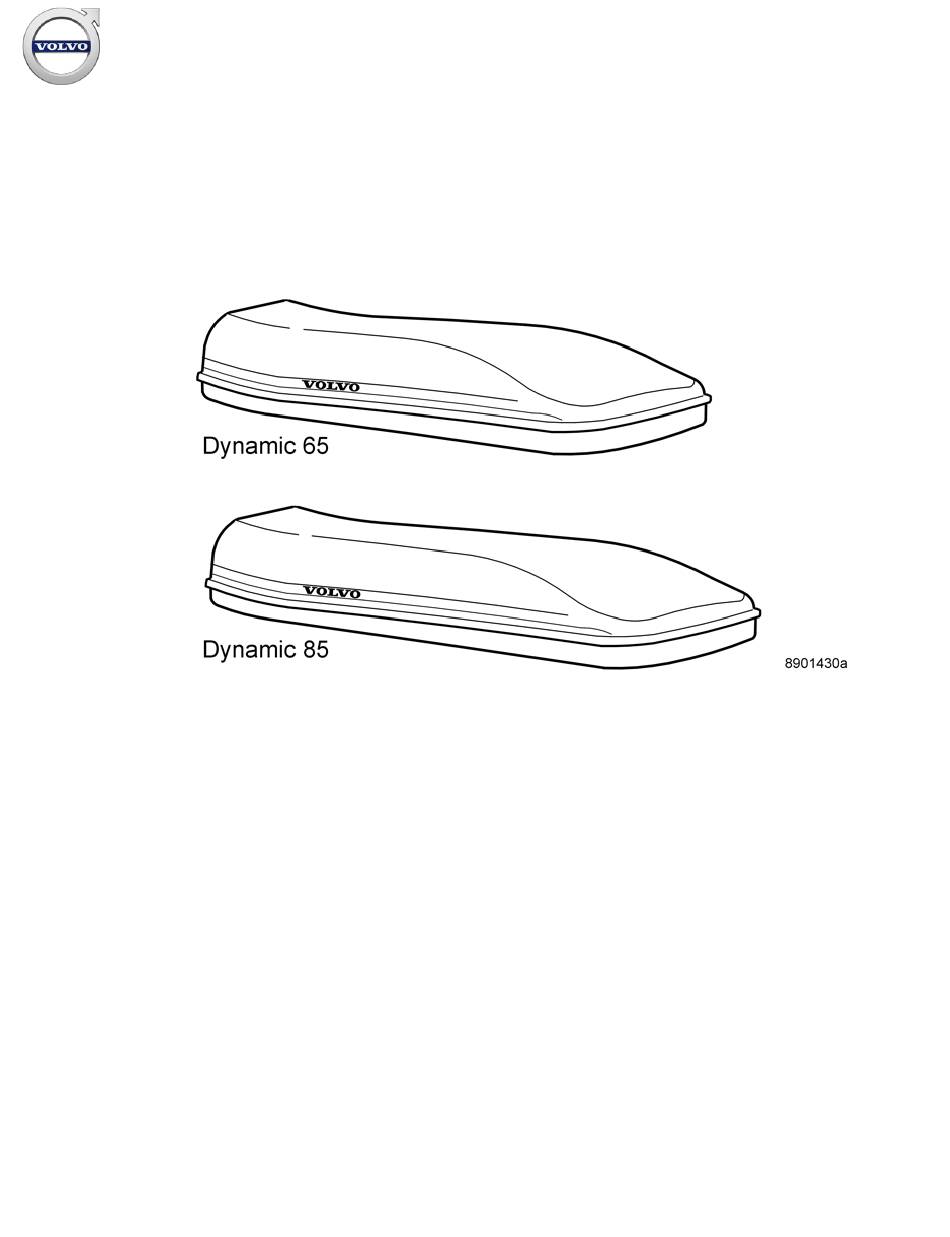

- Page 1 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Instruction No Instruction No Version Version Part. No. Part. No. 9491340 9491340 Roof box Roof box A8901430 A8901430 © Volvo Car Corporation Roof box- 9491340 - V1.0 Page 1 / 10...
- Page 2 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden B8901445 © Volvo Car Corporation Roof box- 9491340 - V1.0 Page 2 / 10...
- Page 3 Explanatory text is also given for more complicated steps. In the event of any problems with the instructions or the accessory, contact your local Volvo dealer. Note! Be aware of the changed height and driving characteristics of the car with load carriers and box. Always secure loads.
- Page 4 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Place the roof box on the load carriers parallel to the car. Ensure that neither the roof box or the load carrier obstruct the tailgate. Note! Applies to V40: The roof box can be used together with the roof antenna and roof spoiler.
- Page 5 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Position the locking handle (C) in each securing plate in the vertical position. Insert the first U-bracket (D) upwards through the grommets (B). B8900865 Press the center section of the securing plates downward, pressing against the indicated pressure point (K) beside the lock handle (C).
- Page 6 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Fold down the lock handle (C) to the horizontal position. This requires a force of approximately 50 N (11 lbf), there should be considerable tension. If this is not the case the U-bracket installation must be repeated.
- Page 7 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden B8901439 B8901440 Transporting other goods © Volvo Car Corporation Roof box- 9491340 - V1.0 Page 7 / 10...
- Page 8 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Transporting other goods Remove the ski holders by turning the clamp bolts to the open position. The clamp bolts are left in the roof box tensioner units. Use the straps supplied to secure the loads.
- Page 9 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Roof box may not be loaded with more than 75 kg (165 lbs). The load should be distributed as illustrated. Note! Do not load car with more than the maximum roof load.
- Page 10 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Removing the roof box Open the roof box (see step ) and remove the load and ski holders. Fold down the safety bracket (E), open the locking handle (C) and fold it to the vertical position. Press down the center of the securing plate in the roof box with one hand.
