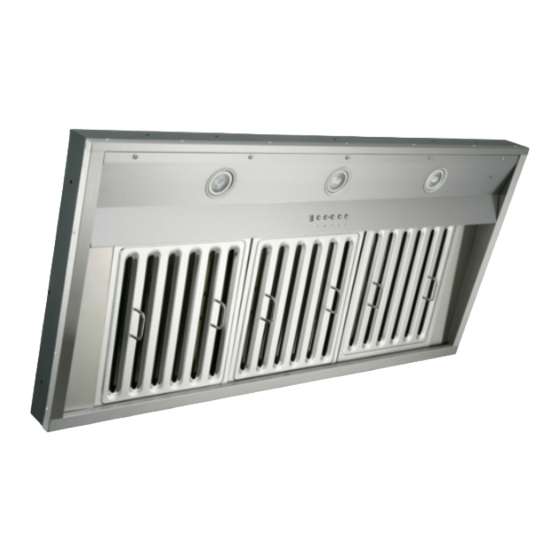

- Page 1 KOBE Range Hoods Model No. IN2636SQB-1200-1 IN2648SQB-1200-1 PREMIUM IN26 SERIES INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
- Page 2 IMPORTANT READ THIS FIRST READ BEFORE INSTALLATION 1. Carefully check all contents of package(s). 2. Thoroughly inspect the unit for any shipping damages, cosmetic damages or defects. 3. Have a certified contractor/electrician test the unit before installation. IF THERE IS ANY PROBLEM: 1.
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................1 COMPONENTS OF PACKAGE ....................3 INSTALLATION ......................... 4 OPERATING INSTRUCTIONS ....................7 MAINTENANCE ......................... 9 SPECIFICATIONS ........................10 MEASUREMENTS & DIAGRAMS .....................11 PARTS LIST ..........................14 CIRCUIT DIAGRAM ........................16 TROUBLE SHOOTING ......................17 WARRANTY ..........................18 WARRANTY INFORMATION FORM ..................20... -
Page 4: Important Safety Instructions
KOBE RANGE HOODS’ authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 6: Components Of Package
COMPONENTS OF PACKAGE (Must keep all material for returns or refunds) Range Hood Box {A} KOBE Range Hood {B} Warranty Registration Card {C} Quick Reference Guide {D} Baffle Filter x 2 (36”), x 3 (48”) {E} Oil Tunnel {F} Stainless Steel Spacer x 2 (For 36” & 48”) -
Page 7: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation Before Installation To calculate installation, please refer to TABLE 1. (All calculation in inches.) - FOR BUILT-IN / INSERT - TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36") C = Height of Counter Top to Wood Frame Bottom (Minimum 27"... - Page 8 Figure 1 Preparation Before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1. A straight, short vent run will allow the hood to perform more efficiently.
- Page 9 Figure 4 Duct Work Installation steel 8” round pipe to connect the ductwork above to the exhaust of the hood. The hood is preinstalled with a rectangular to 8” round transition (Refer to Figure 4). Use duct tape to make all joints secure and air tight.
-
Page 10: Operating Instructions
OPERATING INSTRUCTIONS Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as needed. Button Control Power Control Light Control Decrease Fan ECO Mode Control Speed Increase Fan ECO Mode Icon Speed Power Control To turn the hood ON/OFF, press the power button once. - Page 11 ECO Mode Control ECO Mode is set to turn the fan on QuietMode™ setting for 10 minutes every hour to remove excess moisture, microscopic particles and odors for better kitchen air quality. ECO Mode is independent from the power control and delay shutoff. ECO Mode can be activated while fan is running on or off.
-
Page 12: Maintenance
MAINTENANCE For optimal performance, clean the range hood surface and baffles regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. *** Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2. -
Page 13: Specifications
SPECIFICATIONS MODEL / SIZE IN2636SQB-1200-1 / 36” IN2648SQB-1200-1 / 48” COLOR Commercial Grade Stainless Steel CONSUMPTION / AMPERE 580W / 5.0A VOTAGE 120V 60Hz NUMBER OF BLOWERS BLOWER TYPE Single Horizontal Squirrel Cage EXHAUST Top Transition Rectangular to 8” Round CONTROLS Electronic Control (5 Buttons) with LED Display 3-Minute Delay Shut-Off... -
Page 14: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS All ( ) are in millimeter. All inch measurements are converted from millimeters. Inch measurements are estimated. MODEL NO.: IN2636SQB-1200-1 (36”) IN2648SQB-1200-1 (48”) Side View Top View... - Page 15 Bottom View MODEL NO: IN2636SQB-1200-1 (36”) MODEL NO: IN2648SQB-1200-1 (48”)
- Page 16 Front View MODEL NO: IN2636SQB-1200-1 (36”) MODEL NO: IN2648SQB-1200-1 (48”)
-
Page 17: Parts List
PARTS LIST MODEL NO.: IN2636SQB-1200-1 (36”) IN2648SQB-1200-1 (48”) DESCRIPTION MODEL/SIZE PART NO. Exhaust Plate L1-0505-0004 IN2636SQB-1200-1 10-2636B-1200-1 Hood Casing IN2648SQB-1200-1 10-2648B-1200-1 Processor Board L1-0404-6001-D Capacitor x2PCS L1-0401-0120-24 Motor Transformer L1-0402-6120-40D Motor Bracket L1-0233-2642-1 IN2636SQB-1200-1 B101-2636-28-12 Oil Tunnel IN2648SQB-1200-1 B101-2648-28-12 Blower System (Right) L1-0302-0120-590RE Blower System (Left) L1-0302-0120-590RE... - Page 18 MODEL NO.: IN2636SQB-1200-1 (36”) IN2648SQB-1200-1 (48”)
-
Page 19: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO. : IN2636SQB-1200-1 (36”) IN2648SQB-1200-1 (48”) -
Page 20: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the Installation, unit’s power is ON. Use a voltage meter to both motors check the power supply. and lights are The wire connection is not secure. Check and tighten wire connection. -
Page 21: Warranty
TWO-YEAR LIMITED LABOR WARRANTY ON KOBE PREMIUM SERIES: For two years from the date of your original invoice from a KOBE authorized dealer, we will repair any parts or components free of charge that failed due to manufacturing defects. KOBE reserves the right to replace, rather than repair the product free of charge at our sole discretion. - Page 22 THIS WARRANTY WILL BE VOIDED WHEN: 1. Improper installation and failure to follow installation instructions. 2. Any repair, alteration, modification not authorized by KOBE. 3. Duct alteration, modification and connection. 4. Incorrect electric current, voltage or wiring. 5. Improper usage of the product such as commercially, outdoor or other usage other than its intended purpose which is residential indoor usage only.
-
Page 23: Warranty Information Form
For warranty service or spare parts purchase in US, contact: KOBE Service Center Email (best): customer.service@koberangehoods.com Phone: 1-626-775-8880 ext. 103 Toll Free: 1-877-BUY-KOBE (289-5623) For warranty service or spare parts purchase in Canada, contact: Email (best): customer.service@koberangehoods.com Phone: 1-626-775-8880 ext. 103... - Page 24 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
