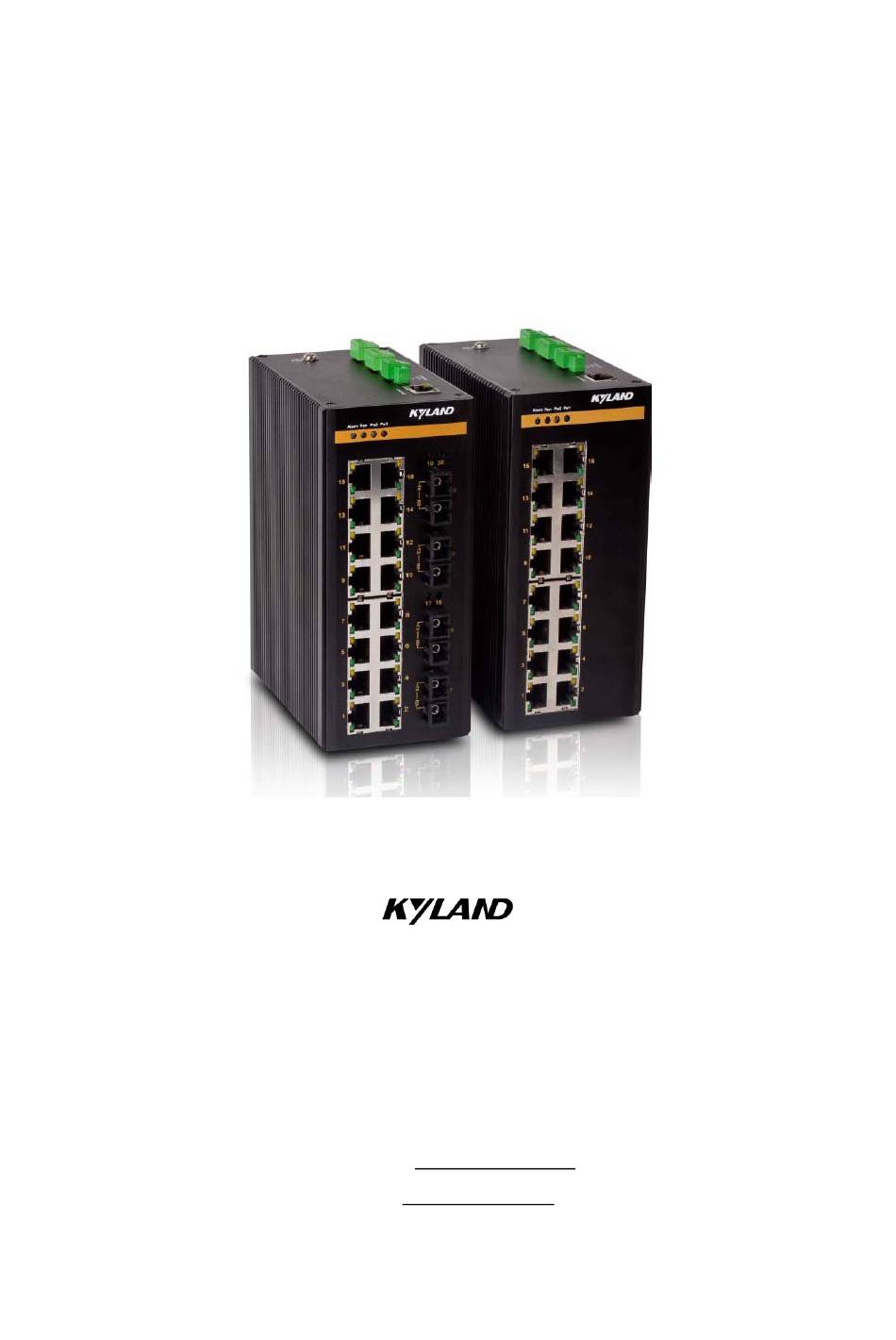

- Page 1 SICOM3016 Industrial Ethernet Switch Hardware Installation Manual Kyland Technology Co., Ltd. Publication Date: Mar. 2013 Version: V3.0 FAX: +86-10-88796678 Website: http://www.kyland.com E-mail: support@kyland.com...
- Page 2 SICOM3016 Industrial Ethernet Switch Hardware Installation Manual Disclaimer: Kyland Technology Co., Ltd. tries to keep the content of this manual as accurate and as updated as possible. This document is not guaranteed to be error-free, and we reserve the right to amend it without notice to users.
- Page 3 Notice for Safety Operation The product performs reliably as long as it is used according to the guidance. Artificial damage or destruction of the device should be avoided. Before using the device, read this notice carefully for personal and equipment safety. Please keep the manual for further reference. Kyland is not liable to any personal or equipment damage caused by violation of this notice.
- Page 4 Dispose of the device in accordance with relevant national provisions, preventing environmental pollution. In the following cases, please immediately shut down your power supply and contact your Kyland representative: Water gets into the equipment. Equipment damage or shell damage. ...
-
Page 5: Table Of Contents
Contents 1 Product Overview ........................1 2 Structure and Interface ......................2 2.1 Front Panel ........................... 2 2.2 Top Panel ..........................3 3 Mounting ..........................5 3.1 Dimension Drawing ....................... 5 3.2 Mounting Modes and Steps ....................6 3.2.1 DIN-Rail Mounting ......................6 3.2.2 Panel Mounting ....................... -
Page 6: Product Overview
Product Overview 1 Product Overview SICOM3016 includes a series of high-performance industrial Ethernet switches developed by Kyland particularly for industrial applications. SICOM3016 is applicable to harsh and hazardous industrial environments due to its high-performance switching engine, solid closed housing, fanless but heat dissipation-capable single-rib shaped chassis, power overload, reverse polarity connection, and redundancy protection. -
Page 7: Structure And Interface
Structure and Interface 2 Structure and Interface Caution: It is recommended to purchase the port dustproof shield (optional) to keep ports clean and ensure switch performance. 2.1 Front Panel Figure 1 Front Panel of SICOM3016-4S/M-16T... -
Page 8: Top Panel
Structure and Interface Table 2 Description of Front Panel of SICOM3016-4S/M-16T Identifier Description Alarm Alarm LED Running LED PWR2 Power 2 LED PWR1 Power 1 LED 1-16 Sixteen 10/100Base-T(X) Ethernet ports 10/100Base-T(X) Ethernet port speed LED (yellow) 10/100Base-T(X) Ethernet port connection status LED (green) 17-20 100Base-FX Ethernet port connection status LED 17-20... - Page 9 Structure and Interface Alarm terminal block Console Console port Grounding screw Top Panel 2 (applicable to 110DC and 220AC/DC) Figure 3 Top Panel 2 Table 4 Description of Top Panel 2 Identifier Description Power terminal block Alarm terminal block Console Console port Grounding screw...
-
Page 10: Mounting
Mounting 3 Mounting 3.1 Dimension Drawing Figure 4 Dimensions for DIN-Rail Mounting (unit: mm) Figure 5 Dimensions for Panel Mounting (unit: mm) Caution: As part of the heat dissipation system, the switch housing becomes hot during operation. Please use caution when coming in contact and avoid covering the switch housing when the switch is running. -
Page 11: Mounting Modes And Steps
Mounting 3.2 Mounting Modes and Steps The series switches support DIN-rail and panel mounting. Before installation, make sure that the following requirements are met. 1) Environment: temperature (-40℃ to 85℃), ambient relative humidity (5% to 95%, non-condensing) 2) Power requirement: The power input is within the voltage range of the switch. 3) Grounding resistance: <5Ω... -
Page 12: Panel Mounting
Mounting Dismounting Step 1: As shown in the following figure, press the device downward and move the device in direction 1 until the bottom of the device is detached from the DIN rail. Step 2: Pull the device upward and move the device in direction 2 until the device is removed from the DIN rail completely. - Page 13 Mounting Figure 8 Panel Mounting Panel Dismounting Step 1: Loosen the four screws with a screwdriver. Pull the device upward until the four screws are in the Ф6.5 positions in the following figure. Then remove the plate for panel mounting from the four screws to detach the device from the wall or inner wall of the cabinet.
-
Page 14: Connection
Connection 4 Connection 4.1 10/100Base-T(X) Ethernet Port 10/100Base-T(X) Ethernet port is equipped with RJ45 connector. The port is self-adaptive. It can automatically configure itself to work in 10M or 100M state, full or half duplex mode. The port can also adapt to MDI or MDI-X connection automatically. You can connect the port to a terminal or network device with a straight-through or cross-over cable. -
Page 15: 100Base-Fx Ethernet Port
Connection Wiring Sequence Figure 11 Connection Using Straight-through/Cross-over Cable Note: The color of the cable for RJ45 connector meets the 568B standard: 1-orange and white, 2-orange, 3-green and white, 4-blue, 5-blue and white, 6-green, 7-brown and white, and 8-brown. 4.2 100Base-FX Ethernet Port 100Base-FX Ethernet port is equipped with FC/ST/SC connector, and each port consists of TX (transmit) port and RX (receive) port. -
Page 16: Console Port
Connection device is powered on. 4.3 Console Port SICOM3016 provides a console port on the top panel. Connect the 9-pin serial port of a PC to the console port of the switch with an RJ45-DB9 console cable. Then you can configure, maintain, and manage the switch by running Hyper Terminal in Windows OS of a computer. -
Page 17: Grounding
Connection 4.4 Grounding Grounding protects the switch from lightning and interference. Therefore, you must ground the switch properly. You need to ground the switch before it is powered on and disconnect the grounding cable after the switch is powered off. The switch provides a grounding screw on the top panel for chassis grounding. - Page 18 Connection Figure 16 3-Pin 3.81mm-Spacing Plug-in Terminal Block (socket) The following table lists the pin definitions of the 3-pin 3.81mm-spacing plug-in terminal block. Table 7 Pin Definitions of 3-Pin 3.81mm-Spacing Plug-in Terminal Block DC Definition AC Definition PGND PGND 3-Pin 7.62mm-Spacing Plug-in Terminal Block The device uses a 3-pin 7.62mm-spacing plug-in terminal block to connect to 110DC or 220AC/DC power input.
- Page 19 Connection Wiring and Mounting Step 1: Ground the device properly according to section 4.4. Step 2: Remove the power terminal block from the device. Step 3: Insert the power wires into the power terminal block according to Table 7 or Table 8 and secure the wires.
-
Page 20: Alarm Terminal Block
Connection 4.6 Alarm Terminal Block The device provides an alarm terminal block on the top panel for alarm output. 2-Pin 3.81mm-Spacing Plug-in Terminal Block When connected to 24DC or 48DC power input, the device uses a 2-pin 3.81mm-spacing plug-in terminal block for alarm. - Page 21 Connection Electrical parameters of the relay: Max Switch Voltage: 250VAC/220VDC Max Switch Current: 2A Max Switching Power: 60W Dielectric Strength: 2KV Wiring and Mounting Step 1: Remove the alarm terminal block from the switch. Step 2: Secure the wires for alarm into the alarm terminal block in the required sequence. Step 3: Insert the alarm terminal block into its socket.
-
Page 22: Leds
LEDs 5 LEDs Table 9 LEDs State Description 3-pin Power 1 is connected and operates properly. 3.81mm-spacing plug-in terminal Power 1 is not connected or operates abnormally. block Power 1 LED 3-pin The power is connected and operates properly. 7.62mm-spacing plug-in terminal The power is not connected or operates abnormally. -
Page 23: Switch Access
Switch Access 6 Switch Access You can access the switch in any of the following ways: 6.1 Access through Console Port Step 1: Connect the console port of the switch to the 9-pin serial port of a PC with the delivered RJ45-DB9 console cable. - Page 24 Switch Access Note: To confirm the communication port in use, right-click [My Computer] and select [Property]. Click [Hardware] → [Device Manager] → [Port] to view the communication port. Step 5: Set port parameters (Bits per second: 9600, Data bits: 8, Parity: None, Stop bits: 1, and Flow control: None), as shown in the following figure.
-
Page 25: Access Through Telnet
Switch Access 6.2 Access through Telnet Step 1: Connect the network port of the PC to the RJ45 port of the switch with an RJ45-RJ45 cable. Step 2: Enter "telnet IP address" in the Run dialog box. For example, if the IP address of the switch is 192.168.0.2 (default IP address of a Kyland switch), enter "telnet 192.168.0.2"... -
Page 26: Basic Features And Specifications
Basic Features and Specifications 7 Basic Features and Specifications Power Requirements Power Identifier Rated Voltage Range Maximum Voltage Range 24DC 24VDC 18-36VDC 48DC 48VDC 36-72VDC 110DC 110VDC 77-154VDC 220AC/DC 100-240VAC, 50/60Hz; 220VDC 85-264VAC/120-300VDC 3-pin 3.81mm-spacing plug-in terminal block (redundant power supply) Terminal block 3-pin 7.62mm-spacing plug-in terminal block (single power supply) Rated Power Consumption...
