IRENIS HDE-265 HDMI Encoder User's Manual
Introduction
IRENIS HDE-265 HDMI HD Encoder is used for high-definition video signal (720P / 1080P, etc.) encoding and network transmission,
using the latest and high-efficient high-definition digital video compression technology H.265, with the characteristics of reliable,
high-definition, low bit rate and low latency. Input the HDMI high-definition video signal to conduct the encoding process, after
compression processing of DSP chip, output the standard TS network stream, the launch of product fills the gap in this
industry, which is a direct replacement for the traditional capture card or software coding method, using hard-coded, the system
is more stable, and image quality is more perfect, which can be used in a wide variety of needs for high-definition video and high-
resolution and high frame rate acquisition-based IP network transmission, its powerful scalability makes it more easily to respond
to the needs of different industries and can be used as live video encoder. Industrial controlled, precision design, small size, easy
installation, the power is less than 5W, which is more energy and more stable.

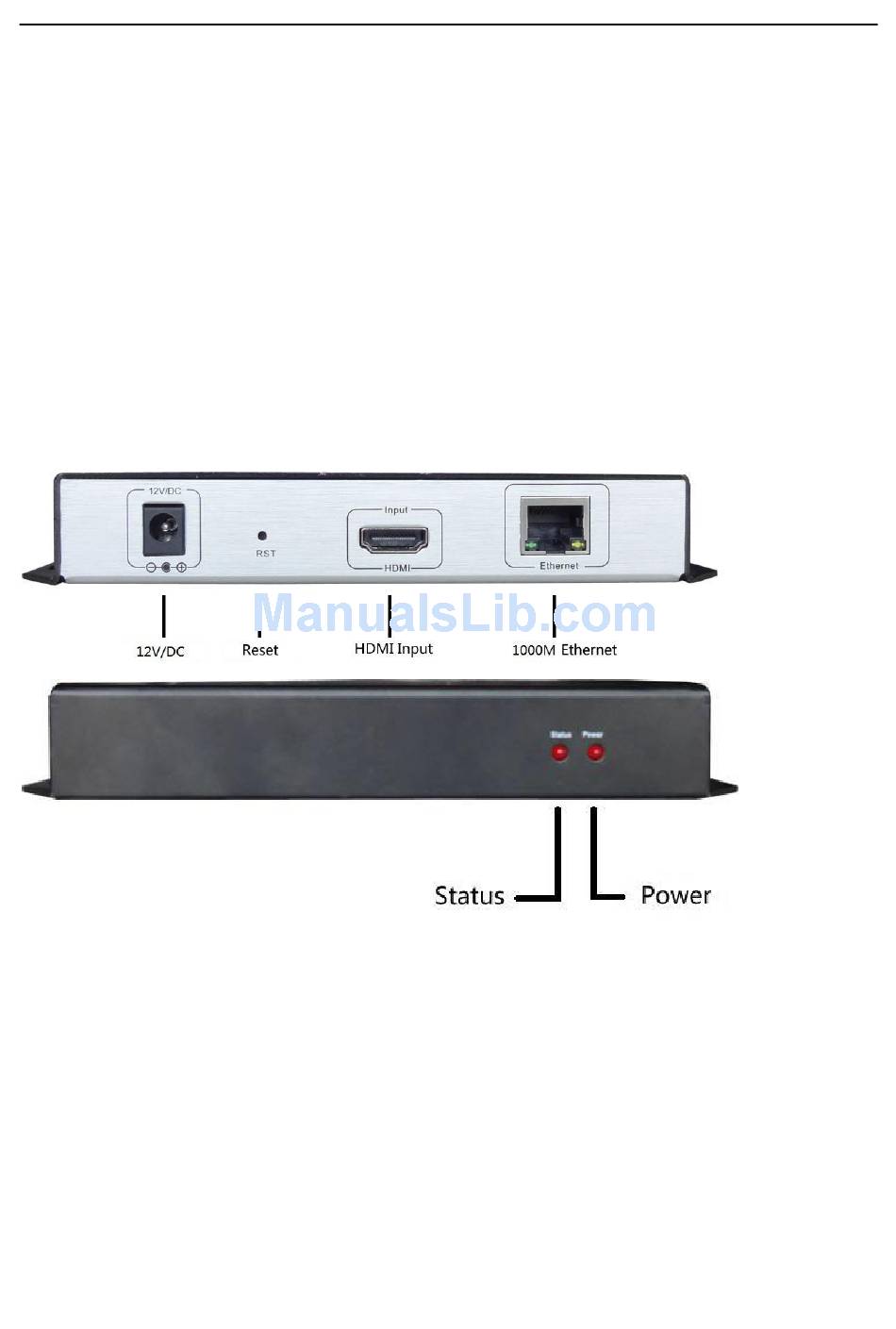

Interfaces
1)
Power input ----- 12V / DC input, using 12V1A power supply, if it is 5V input, chose 5V / 2A.
2)
Initialization button------it is used to reset the device, when turned on, press and hold for 10 seconds, the device IP will back to
factory IP, 192.168.0.31
3)
HD video input ------ it is used for HDMI signal input.
4)
1000M network port ------ 1000M Ethernet interface.
5)

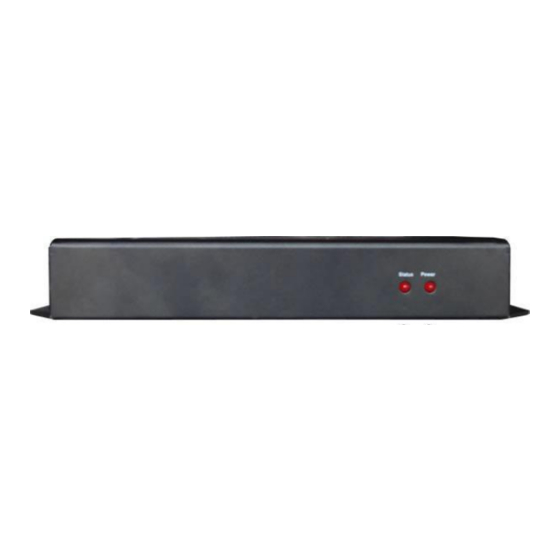

Status indication ------- if there is internet connection, the display light is on, when there is no network, the light is off. At reset,
if the light is not on after 10 seconds, the device is restarted.
6)
Power indication--- to indicate if the power is normal
