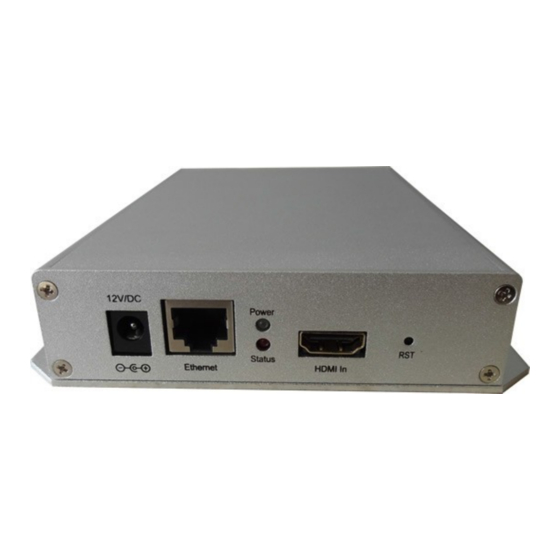

Irenis HDE-264 User Manual

H.264/h.265 (hevc) iptv encoder & streamer series
Hide thumbs Also See for HDE-264:
Table of Contents

Advertisement

Quick Links

H.264/H.265 (HEVC)
IPTV ENCODER & STREAMER
SERIES
OVERVIEW AND QUICK START

USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDE-264 and is the answer not in the manual?

Questions and answers

Related Manuals for Irenis HDE-264

Summary of Contents for Irenis HDE-264

  • Page 1: User Manual

    H.264/H.265 (HEVC) IPTV ENCODER & STREAMER SERIES OVERVIEW AND QUICK START USER MANUAL...

  • Page 2: Application Example

    IRENIS Encoder & Streamers | User Manual APPLİCATİON EXAMPLE: Author: Rri, August 2017, Version: V1.3 - 2 -...
  • Page 3 IRENIS Encoder & Streamers | User Manual Thank you for choosing our products. Please contact us if you have any question – see last page This manual applies to the following models: (depending on changes in model types and ranges this is a subject to change w/o further notice) H.264 Video Encoder Series...
  • Page 4 IRENIS Encoder & Streamers | User Manual H.264 HDMI+VGA decoder • H.264Baseline/High/Main Profile decoding • MJPEG/JPEG Baseline decoding VHE-264 • Audio decoding MPEG1 Audio Layer 2 • Support Network interface full-duplex mode 100M • 1 channel HDMI/vga/audio output • Support up to 1080P/60hz HD video output •...
  • Page 5 IRENIS Encoder & Streamers | User Manual 4 channels HDMI + CVBS H.264 video encoder • Support H.264Baseline Profile / H.264Main Profile / H.264High Profile • Support up to 720P, 1080P HD video input ADE-4264 • Support HDCP protocol and HD blue-ray •...
  • Page 6 IRENIS Encoder & Streamers | User Manual 19” 1 RU Encoder Series H.264 Video Encoder into 1 RU case with HDMI input+BNC input+Independent Audio ADE-1264 • Support 1080P@60fps • Single channel IP output • Support HTTP,RTMP,RTSP,UDP,ONVIF protocol • Support unicast and multicast H.265 Video Encoder into 1 RU case with...
  • Page 7 IRENIS Encoder & Streamers | User Manual H.265 (HEVC) Video Encoder Series One channel H.265 HDMI video encoder • Support H.264BP/MP/HP • Support H.265 Main Profile • Support up to 720P, 1080P HD video input • Support HDCP protocol and HD blue-ray HDE-265 •...
  • Page 8 IRENIS Encoder & Streamers | User Manual H.264/H.265 Wireless Video Encoder Series 1 channel SDI input encoder • Connect the internet by Wifi or ethernet port • 1 Channel SDI input; SWE-264 • 1 channel SDI loop output. • Same specification as SDE-264 1 channel H.265 SDI video encoder with 1...

  • Page 9: Product Overview

    IRENIS Encoder & Streamers | User Manual Default Values admin The factory default administrator account: The factory-default user password: admin The factory default IP address: 192.168.0.31 or 192.168.1.168 Please change these account settings according to your local policy and network. -> Do not forget to safe and backup the configuration.

  • Page 10: Interface Description

    IRENIS Encoder & Streamers | User Manual APPLICATIONS • IPTV • Digital Signage • Video Conference • Hotel IPTV System • Live Broadcast Feeds • Campus IPTV System • IP Recording System • Medical video broadcast and recording system •...
  • Page 11 IRENIS Encoder & Streamers | User Manual 4.4 HDMI CVBS HD Encoder： 4.5 The interfaces of H.265 HDMI encoder and WIFI encoder are similar： 4.6 The interfaces of H.265 SDI encoder and WIFI encoder are similar： 4.7 The interfaces of H.264VGA encoder and WIFI encoder are similar：...

  • Page 12: Web Server Settings

    IRENIS Encoder & Streamers | User Manual WEB SERVER SETTINGS Step 1: Reset & initialization Connect the power supply to turn on the encoder and use a pin to press RST on the encoder for min. 10 seconds (better 15), it will be restarted and initialized. The default Route IP of the WEB-IF is 192.168.0.31 or 192.168.1.168 (...
  • Page 13 IRENIS Encoder & Streamers | User Manual So please change it to English using the submenu upper right corner use the 2 item: You are entering the STATUS window: You'll get more information if scrolling down: The sub-menus are at the bottom.
  • Page 14 IRENIS Encoder & Streamers | User Manual Enter Network settings submenu (bottom-menu): DHCP might not be a good idea because your local network router would handover an IP Address from his pool which you can only get by entering the router itself.
  • Page 15 IRENIS Encoder & Streamers | User Manual Enter the SYSTEMS Menu to reboot your device and to enable the new settings or do a SW-update: configure a planned scheduled restart: Or upgrade the Firmware and initialize a reboot: Author: Rri, August 2017, Version: V1.3...
  • Page 16 IRENIS Encoder & Streamers | User Manual Do not forget to re-adjust your PC/LAPTOP IP-Settings to your local network addresses if you changed the IP address. Re-enter into the unit's WEB-IF by using the new address. Author: Rri, August 2017, Version: V1.3...

  • Page 17: Status Display

    IRENIS Encoder & Streamers | User Manual STATUS DİSPLAY Input status: when you input the HD signal source, it will show resolution of video input, if it’s blank here: No video input detected . Main-stream Status: Showing the resolution of the main-stream you set and multicast address.
  • Page 18 IRENIS Encoder & Streamers | User Manual NETWORK SETTINGS - WIFI You can set the network with either Ethernet or WIFI. Only devices with WIFI support can use a WLAN connection. Instruction of wifi network Setup: 3 different settings can be chosen A.
  • Page 19 IRENIS Encoder & Streamers | User Manual The Default IP of the device is 192.168.0.32 (depending on model) . If IP setting has been forgotten after changing, you can RST= reset it to default IP following the reset to default settings procedure like explained before.

  • Page 20: Mai̇n Stream Setti̇ng

    IRENIS Encoder & Streamers | User Manual MAİN STREAM SETTİNG: Enc type: h.264 & h.265 (is optional dep. on model)  Note: h.264 version can only use h.264 codec, h.265 model can both Profile: baseline profile / main profile / high profile ( note: h.265 version choose main ...
  • Page 21 IRENIS Encoder & Streamers | User Manual Main - Stream protocol settings: HTTP: /main enable/disable HTTP port: 1-65535 optional RTSP: /main enable/disable RTSP port: 1-65535 optional Multicast IP: 232.255.42.42 disable/RTP/UDP optional Multicast port: 1-65535 optional RTMP server IP: can be set according your streaming media server values...
  • Page 22 IRENIS Encoder & Streamers | User Manual Note: For TS URL, HLS URL, RTSP URL, the Network IP address of the device is the Unicast distribution address. You do not need to fill in this addrerss by yourself becasue its already related to the GbE network IP.
  • Page 23 IRENIS Encoder & Streamers | User Manual MAİN STREAM LİVE VİEW: You can play the stream address by your computer if you installed i.e. the VLC Player software or use an IPTV STB by setup the RTSP or HTTP stream addresses: Easiest way: copy and paste the URL from the main window and open VLC –...
  • Page 24 IRENIS Encoder & Streamers | User Manual You can check the video information if you like by VLC: Author: Rri, August 2017, Version: V1.3 - 24...

  • Page 25: Osd Settings

    IRENIS Encoder & Streamers | User Manual Second stream Live View: You can play the stream address by your computer if you installed the Video Lan Client (VLC , freeware for almost all plattforms) similar to the shown procedure above.
  • Page 26 IRENIS Encoder & Streamers | User Manual Tex1: input the content of the text you want to display These features are varying depending on model and versions. or a prepared picture according to the values given in the WEB-IF for uploading to the unit: looks like there is a translation issue of the upload-button ;-)
  • Page 27 IRENIS Encoder & Streamers | User Manual example: Picture quality setting (dep. on model) Brightness: 0-100 is optional (to adjust the brightness of the image) Contrast: 0-100 is optional (to adjust the contrast of the image) Hue: 0-100 is optional (to adjust the hue of the image)
  • Page 28 This doesn't mean to restart your encoder! – It means your Receiver should be tuned again to the stream (i.e. switch or reload the channel on your Irenis IPTV SetTopBox to re-initialize the decoding process) Author: Rri, August 2017, Version: V1.3...
  • Page 29 IRENIS Encoder & Streamers | User Manual SECOND (SUB) STREAM OUTPUT SETTINGS Note: The method of the setting is nearly the same with mainstream code setting: sub-Stream has some slightly different setup: Because the RTMP Server can only obtain a stream once from the same address.
  • Page 30 IRENIS Encoder & Streamers | User Manual Please asure the corresponding picture settings if downscaling i.e. from 16:9 to 5:4 would squeeze the picture: CVBS ENCODING SETTINGS (DEP. ON MODEL) Author: Rri, August 2017, Version: V1.3 - 30...

  • Page 31: Audio Encoding Settings

    IRENIS Encoder & Streamers | User Manual AUDIO ENCODING SETTINGS Audio bitrates: 48k, 64k, 128k, 160k, 192k, 256k Audio type: AAC (depending on model) and more... Audio digital gain: 2x, 4x, 8x, used to adjust volume Audio input mode: digital/analog...
  • Page 32 IRENIS Encoder & Streamers | User Manual WIFI SETTING HİNTS Hint shown above: If you want to configure the HD encoder, you need to set the fixed IP of the computer first . See chapter above – similar to Ethernet Settings.
  • Page 33 IRENIS Encoder & Streamers | User Manual TECHNICAL SPECIFICATIONS (DEP. ON MODEL) Video Input HDMI, SDI, CVBS according to the chosen model Resolution 1920×1080_60i/60P, 1920×1080_50i, 1280×720_60p, 1280×720_50p and below Encoding H.264/AVC Main Profile/High Profile ; H.265/HEVC Baseline Profile; Audio AAC Data Rate 0.8 Mbps ...
  • Page 34 IRENIS Encoder & Streamers | User Manual IRENIS GmbH reserves the right to revise this publication and make changes in its content from time to time, whereby it shall not be obligatory for IRENIS GmbH to provide notification of such revision or change.
