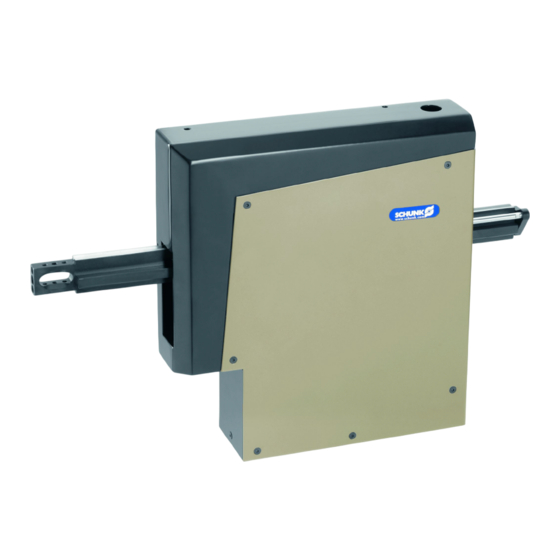

Pick and place unit
Table of Contents

Advertisement

Quick Links

Translation of the original manual
Assembly and Operating Manual
PPU-P
Pick and Place Unit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPU-P and is the answer not in the manual?

Questions and answers

Summary of Contents for SCHUNK PPU-P

  • Page 1 Translation of the original manual Assembly and Operating Manual PPU-P Pick and Place Unit...
  • Page 2 Imprint Copyright: This manual is protected by copyright. The author is SCHUNK GmbH & Co. KG. All rights reserved. Any reproduction, processing, distribution (making available to third parties), translation or other usage - even excerpts - of the manual is especially prohibited and requires our written approval.
  • Page 3: Table Of Contents

    4.4.1 Mounting of base plate mounting kit AS-PPU-P...-GPL ...... 25 4.4.2 Mounting of optional anti-fall device ASP-P........... 25 4.4.3 Mounting of energy hose mounting kit AS-PPU-P...-ES...... 26 4.4.4 Mounting of adapter plate mounting kit AS-PPU-P...-APL ..... 27 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 4 End positions, air connections, sensor IN, deflection pulley, centering sleeve.. 54 Other wearing parts ...................  56 Translation of original declaration of incorporation .......... 57 Annex to Declaration of Incorporation...............  58 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 5: General

    Dangers for persons! Non-observance can lead to irreversible injury and even death.  CAUTION Dangers for persons! Non-observance can cause minor injuries. CAUTION Material damage! Information about avoiding material damage. 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 6: Applicable Documents

    Designation Type Magnetic switch • Exact type designation of the compatible sensors see catalog. • Information on handling sensors is available at schunk.com or from SCHUNK contact persons. 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 7 Machine Directive. Prevents payload from falling from the stand-by position in case of pressure loss. Designation ID number Anti-fall device ASP-P010 0314703 Anti-fall device ASP-P030 0314708 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 8: Warranty

    1.3 Scope of delivery The scope of delivery includes • Pick and Place Unit PPU-P in the version ordered • Assembly and Operating Manual • Accessory pack 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 9: Basic Safety Notes

    • Structural changes should only be made with the written approval of SCHUNK. 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 10: Spare Parts

    • Ensure that no strong magnetic fields impair the function of the product. Contact your SCHUNK partner if the product is to be used in strong magnetic fields. 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 11: Personnel Qualification

    • Wear protective gloves and safety goggles when handling hazardous substances. • Wear close-fitting protective clothing and also wear long hair in a hairnet when dealing with moving components. 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 12: Notes On Safe Operation

    • When handling heavy weights, use lifting equipment to lift the product and transport it by appropriate means. • Secure the product against falling during transportation and handling. • Stand clear of suspended loads. 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 13: Malfunctions

    • If the energy supply is connected, do not move any parts by hand. • Do not reach into the open mechanism or movement area of the product during operation. 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 14: Protection During Handling And Assembly

    Falling and violently ejected components can cause serious injuries and even death. • Take appropriate protective measures to secure the danger zone. • Never step into the danger zone during operation. 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 15: Protection Against Dangerous Movements

    • The effectiveness of the potential equalisation must be verified by executing regular safety measurements. 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 16: Notes On Particular Risks

    Possible danger of injury due to residual energy in the attachments! Uncontrolled motion of the individual parts of the module is possible during disassembly! Before decommissioning, ensure that no residual energy • remains in the system. 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 17: Technical Data

    * in permissible center of gravity range, Attachment of loads  21] ** at nominal operating pressure More technical data is included in the catalog data sheet. Whichever is the latest version. 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 18: Anti-Fall Device

    * If the digital input signals are wired directly to the PLC input module, make sure that this does not exceed a maximum cycle time of 5 ms. Due to the speed of the PPU-P, the PLC cannot record any input signals and if the cycle time is exceeded, malfunctions may occur.
  • Page 19: Assembly

    Mounting material Item Designation PPU-P 10 PPU-P 30 Screw ISO 4762 M8 / 2x M10 / 4x Cylindrical pin ISO 8734 Ø5m6 / 2x Ø6m6 / 2x 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 20 Always observe screw tightening torques! Select the suitable screw tightening torque for mounting of the loads on the unit in accordance with the generally applicable directives for screw connections 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 21: Attachment Of Loads

    When mounting loads, only the maximum permissible • moments can be applied to the cantilever arm – no forces! 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 22 Load PPU-P 10 PPU-P 30 [Nm] permissible range of the center of mass of the load Dimension PPU-P 10 PPU-P 30 A [mm] B [mm] C [mm] 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 23: Air Connections

    The lengths of the hoses from the valve to the unit affect the cycle time! The hose lengths have to be as short as possible! Hose lengths Hose lengths PPU-P 10 PPU-P 30 Maximum permissible length [m] Recommended [m] 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 24 Compressed air connection C / D: Actuation of horizontal drive (C-Retract / D-Extend) Compressed air connection A Actuation for raising vertical drive Compressed air connection B: Actuation for lowering of vertical drive 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 25: Mounting Of Accessories

    Rod lock assembly option Item Designation ID number PPU-P 10 PPU-P 30 1* M5 air connection 5520567 1306449 Rod lock 9955686 9954333 * Must be provided by customer 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 26: Mounting Of Energy Hose Mounting Kit As-Ppu-P

    Mount Cable protection sleeve (pre-mounted) Threaded hose coupling (pre-mounted) Metal lock nut Screw DIN 4762 Screw DIN 4762 M4 x 8 / 2x M5 x 12 / 2x 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 27: Mounting Of Adapter Plate Mounting Kit As-Ppu-P

    PPU-P 10 PPU-P 30 Horizontal adjustment range Each 12 mm Each 18 mm Vertical adjustment range Each 15 mm Each 20 mm Maximum vertical difference 8 mm 10 mm 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 28 The key is integrated in the front wall of the cover. CAUTION The key is designed only for low tightening torques. 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 29: Adjustment Of Horizontal End Positions

    Set the end position to the desired position by turning the Ø adjusting screws (1) and (3). Tighten clamping screws (2). Ø If necessary, repeat the process at the 2nd end position. Ø 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 30: Adjustment Of Vertical End Positions

    Place the end position in the desired position by turning the Ø sleeve (2). Tighten the attachment screws (1). Ø If necessary, repeat procedure for the 2nd end position. Ø 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 31: Mounting And Adjustment Of Sensors

    CAUTION The sensor positions are not preadjusted. All sensors must be adjusted during the start-up procedure, Mounting and adjustment of sensors IN  32] and Commissioning  38]. 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 32: Mounting And Adjustment Of Sensors In

    Sensor for rear end position (home position) --> extension arm returned Sensor for front end position --> extension arm extended Switching point for horizontal drive Switching point for vertical drive 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 33 Set the UH sensor at a distance of X to the upper end position, Ø Mounting and adjustment of sensors IN  32]. Secure position by tightening the sensor. Ø 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 34: Mounting And Adjustment Of Optional Sensors Mms

    Unscrew the front cover plate from the cover. Ø Tilt sensor slightly to insert it into the monitoring groove. Ø Adjust sensor to desired monitoring position and fasten with set Ø screw. 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 35: Adjustment And Replacement Of Shock Absorbers

    Unscrew the front cover plate from the cover. Ø Loosening the lock nut Loosen the lock nut on the shock absorber. Ø Turn shock absorber to the desired position. Ø Tighten lock nut. Ø 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 36: Replacement Of Shock Absorbers

    Check the position of the end position and correct if necessary Ø Adjustment of vertical end positions  30]. Readjust shock absorber if necessary Ø Adjustment of shock absorbers  35]. 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 37: Adjustment Of Regulator Valves

     39] complies with the mimimum times and the maximum number of cycles is not exceeded. CAUTION If the cycle times are exceeded, the device can be overloaded and it can occur mechanical damages. 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 38: Handling And Operation

    For this purpose, allow the unit to operate in standard sequence, If necessary, readjust shock absorbers and regulator valves. Ø Adjustment of the unit is now complete. ✔ 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 39: Actuation / Operation

    Handling and operation 5.3 Actuation / operation 5.3.1 Standard sequence Actuation diagram for standard Pick&Place sequence 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 40 Unit in front end position Ø Actuation of valve B → A (lower → raise) Start return stroke of Pick&Place cycle Cantilever arm moves vertically upward 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 41: Sequence With Actuation Of Stand-By Position

    Position of the stand-by position is not defined exactly. For the location area of the cantilever arm in the stand-by positions Sequence with actuation of stand-by position  43]. 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 42 Handling and operation Actuation of stand-by positions 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 43 • Horizontal: Cantilever arm retracted pressurized connection: (C) stand-by position • Vertical: Cantilever arm lowered pressurized connection: (B) • Sensor allocation: (VE) PPU-P in back end position Actuation of valve B → A (lower → raise) Ø Move to back stand-by position Cantilever arm moves vertically upward Sensor reaches switching point UH Ø...
  • Page 44 Stand-by time: Execution of additional motions (gripping, etc.) + Ø external start, if applicable either • continue with standard sequence Standard sequence  39] • for actuation of the front stand-by position sequence as follows 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 45 – Horizontal: Cantilever arm retracted pressurized connection: (C) – Vertical: Cantilever arm lowered pressurized connection: (B) – Sensor allocation: (VE) Stand-by time: Execution of additional motions (gripping, etc.) + Ø external start, if applicable 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 46: Troubleshooting

    Inner diameters of compressed air lines are of sufficient size in relation to compressed air consumption. Flow rate of valve is sufficiently large relative to the compressed air consumption. 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 47: Rough Sequence

    Mounting and adjustment of sensors  31] Proximity switch defective or set incorrect. Change sensor. Cable breakage. Change sensor. Replace connection cable extension (provided by the customer) if necessary. 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 48: Maintenance

    Lubricants/Lubrication points Lubricant point Lubricant Lubrication points guidance Isoflex-Topas NCA 52 All seals Bore hole at the piston 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 49: Pistons And Seals

    Lubrication points of the guides Lubricate horizontal and vertical guide at the specified Ø lubrication points. Recommended lubrication intervals for guides Size PPU-P 10 / 30 Interval [Mio. cycles] 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 50: Replace Clamping Cartridge

    Unscrew rod (2) from thread and remove it from the hole. Ø Remove clamping cartridge (3). Ø Assemble clamping cartridge, as described in chapter "Mounting of Assembly optional anti-fall device ASP-P..." Mounting of optional anti-fall device ASP-P...  25]. 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 51: Spare Parts

    Spare parts 8 Spare parts 8.1 Cover Item Designation Amount Wear parts Cover, complete Countersunk screw Torx DIN 965 A2 M3x5 End cap 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 52: Horizontal Drive

    Washer DIN 125 A 4.3 rostfrei Screw ISO 4762 4x M3 x 8 4x M4 x 8 Screw ISO 4762 2x M4 x 8 2x M5 x 10 Nut DIN 934 M4 rostfrei 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 53: Vertical Drive

    Screw ISO 4762 M4 x 10 Screw ISO 4762 1x M4 x 12 1x M6 x 14 Screw ISO 4762 1x M5 x 10 1x M6 x 16 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 54: End Positions, Air Connections, Sensor In, Deflection Pulley, Centering Sleeve

    Spare parts 8.4 End positions, air connections, sensor IN, deflection pulley, centering sleeve 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 55 121 Inductive proximity switch IN incl. Counter nut 146 Screw ISO 4762 2x M5 x 14 2x M6 x 16 149 Screw ISO 4762 4x M5 x 16 4x M6 x 20 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 56: Other Wearing Parts

    Guide systems / Guide rail Cantilever arm Guide rail 10 Guide rail 13 Slide II 31 Stop plunger 35 Plunger nut Stop kinematics 111 Compression spring 122 Lock washer 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 57: Translation Of Original Declaration Of Incorporation

    Person authorized to compile the technical documentation: Robert Leuthner, Address: see manufacturer's address Lauffen/Neckar, May 2020 p.p. Ralf Winkler, Manager for development of gripping system components 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 58: Annex To Declaration Of Incorporation

    1.3.2 Risk of break-up during operation 1.3.3 Risks due to falling or ejected objects 1.3.4 Risks due to surfaces, edges or angles 1.3.5 Risks related to combined machinery 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 59 Risk of slipping, tripping or falling 1.5.16 Lightning Maintenance 1.6.1 Machinery maintenance 1.6.2 Access to operating positions and servicing points 1.6.3 Isolation of energy sources 1.6.4 Operator intervention 1.6.5 Cleaning of internal parts 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
  • Page 60 Supplementary essential health and safety requirements for machinery intended for underground work Supplementary essential health and safety requirements for machinery presenting particular hazards due to the lifting of persons 06.00 | PPU-P | Assembly and Operating Manual | en | 389323...
