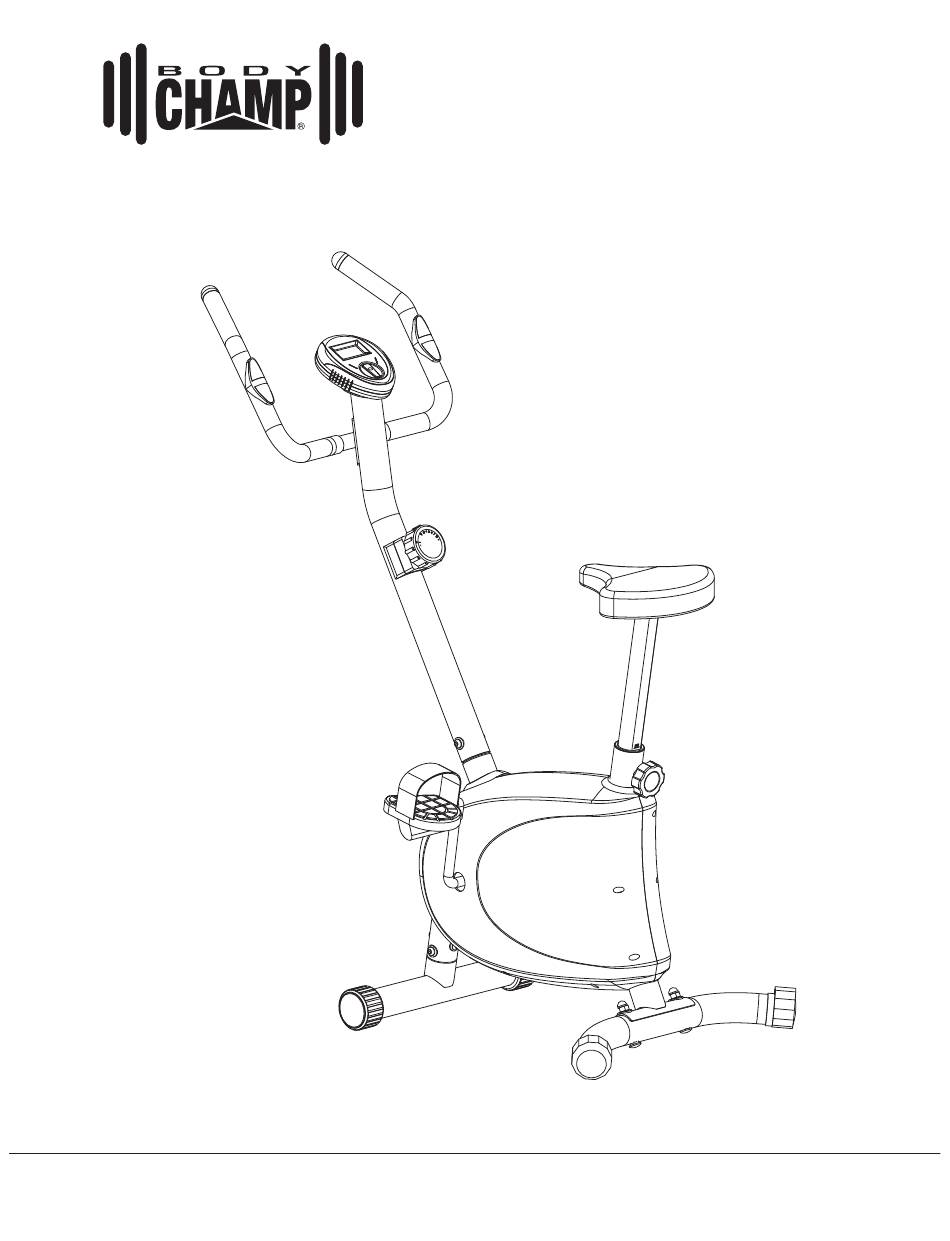

- Page 1 BRU 108/178 UPRIGHT BIKE Cardio Trainer * This item is for consumer use only and it is not meant for commercial use. OWNE R’S MANUA L...
- Page 2 This page intentionally left blank...
-
Page 3: General Information
General Information Safety Storage and Use Before you undertake any exercise program, Your product is intended for use in clean please be sure to consult with your doctor. dry conditions. You should avoid storage in Frequent strenuous exercise should be excessively cold or damp places as this may approved by your doctor and proper use lead to corrosion and other related problems. - Page 4 Hardware & Tool List The following hardware is used to assemble your unit. Please take a moment to familiarize yourself with these items. some of these parts may have already been pre-assembled on your unit. PLEASE NOTE: Bolts #34. Screw (M5x10 mm) #08.
-
Page 5: Parts Listing
Parts Listing The following parts list describes all of the parts illustrated on the exploded diagram on the following page. Please note, most of these parts are already pre-assembled on your unit. Description Main Frame Front Stabilizer Rear Stabilizer Seat Post Front Post Handlebar End Cap for Front Stabilizer... -
Page 6: Exploded Diagram
Exploded Diagram The following diagram is provided to help you familiarize yourself with the parts and hardware that will be used during the assembly process. Please note that not all of the parts and hardware you see here will be used while you are assembling the machine because some of these items are already pre-installed. - Page 7 Assembly Instructions A s s e m b l y S t e p 1 Hardware Required A.) Front & Rear Stabilizer Assembly Remove the Bolts (#08) and Arc Washers (#09) that are pre- assembled on the Front Stabilizer (#02) and set them aside for now.
- Page 8 Assembly Instructions Hardware Required A s s e m b l y S t e p 2 Seat Post Assembly First, remove the pre-assembled Nylon Nuts (#19) and Washers (#20) from the Seat (#21) and set them aside for now. Next, attach the Seat Post (#04) to the bottom of the Seat (#21) as shown in the illustration below using the previously removed #19.
- Page 9 Assembly Instructions Hardware Required A s s e m b l y S t e p 3 Tension Controller Assembly Please remove the pre-assembled Screw (#23) and Arc Washer (#24) from the Tension Controller (#25) and set them aside for now.
- Page 10 Assembly Instructions Hardware Required A s s e m b l y S t e p 4 Monitor Assembly Remove the Screws (#34) that are pre-assembled on the Monitor (#30) and set them aside for now. Connect the Monitor Wire (Middle) (#33) to the Monitor Wire (Upper) (#36).
-
Page 11: Safety And Maintenance
Safety & Maintenance SAFETY & WARNINGS • Make sure all nuts, bolts, and screws are tightened prior to use. • Be sure that all adjustment locking devices and safety devices are properly engaged prior to use! • Never over-tighten the above-mentioned devices and parts to avoid damage to the unit. •... -
Page 12: Computer Operation
Computer Operation DISTANCE SPEED ODOMETER CALORIES TIME SCAN PULSE 0:00 FUNCTION MARK: A: Auto Scan O: Odometer (Total Distance) S: Current Speed C: Calories Burned ♥ D: Distance Traveled : Pulse Rate T: Elapsed Time BATTERY INSTALLATION/REPLACEMENT: 1. Lift off the battery cover and place two SIZE-AAA batteries into the battery housing on back of monitor with the +/- sides installed correctly. -
Page 13: Specifications
Computer Operation Calories Press the button until the ARROW points to “C” to display the calorie consumption/calories burned. ♥ Pulse Rate Press the button until “ ” appears to show your heart rate (Pulse) in beats per minute. Place the palms of your hands and grip lightly on both the contact pads and the monitor will display your heartbeat rate in beats per minute (BPM) on the LCD display. -
Page 14: Troubleshooting
Troubleshooting (AFTER COMPLETE ASSEMBLY) Solution Troubleshoot Area If the computer is not picking up your hand pulse signal (or you are getting HAND PULSE SIGNAL inaccurate readings), please adjust the following: Slightly moisten/dampen the palms with water so the sensors can detect a pulse signal. - Page 15 PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE USE & REFERENCE. DO NOT DISCARD. WARNING: SERIOUS INJURIES AND EVEN DEATH CAN OCCUR IF THE PROPER SAFETY PRECAUTIONS ARE NOT FOLLOWED. The diagram below highlights and reviews many of the important Safety and Warning labels also found on the unit.
-
Page 16: Proof Of Purchase
Proof of purchase Model Number BRU178/108 version:5-21-2012 BRU178/108...
