Panasonic ST4 Series Instruction Manual page 31

3. Insert the connector of ST4-A□ to the connector 2 of ST4-CCJ05-WY, and
turn the fixing ring to fix it.
Connector 2 of ST4-CCJ05-WY
4. Insert the connector of ST4-A□ to the connector 3 of ST4-CCJ05-WY, and
turn the fixing ring to fix it.
In case of connecting the sensor more, insert the connector 1 of ST4-CCJ05-WY
to the connector 3 of ST4-CCJ05-WY, and turn the fixing ring to fix it.
After that, repeat the precedures 3 and 4.
5. Use a M5 small pan head screw
(please arrange separately) to
mount ST4-CCJ05-WY.
The tightening torque should be
0.7N·m or less.
<Removing method>
1. Loosen the fixing rings and pull out
the connectors by holding the fix-
ing rings.
© Panasonic Industrial Devices SUNX Co., Ltd. 2016
Fixing ring
Fixing ring
Fixing ring
Fixing ring
● Before removing the connectors, make sure that the fixing rings
are fully loosen. If the connectors are forcibly pulled out with the
fixing rings tightened, the connectors may be damaged.
● When mounting ST4-CCJ05-WY, if it is tightened with excessive
force by the M5 small pan head screw, it may break.

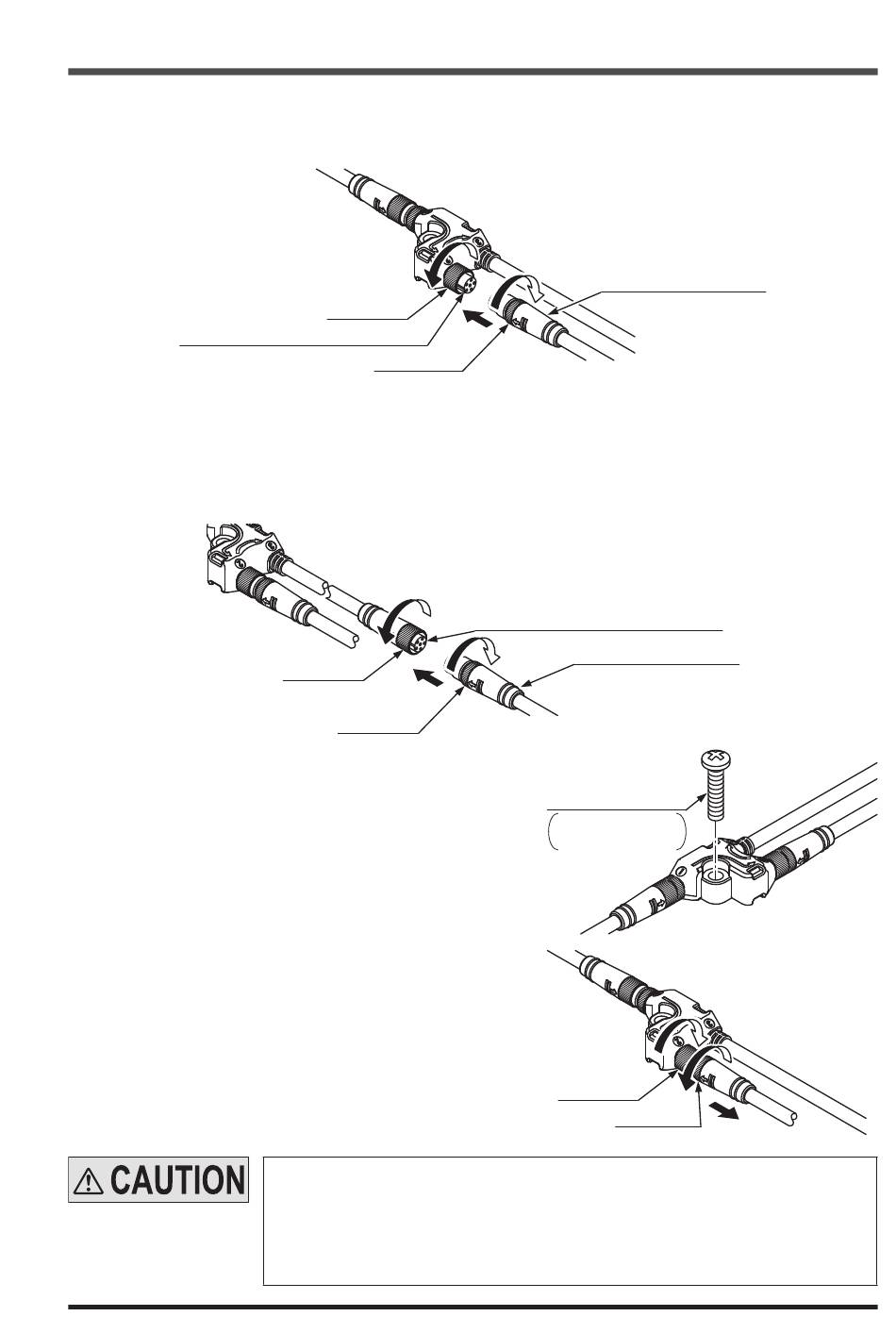

Mounting / Removal
Connector of ST4-A□
Connector 3 of ST4-CCJ05-WY
Connector of ST4-A□
M5 small pan
head screw
Please arrange
separately
Fixing ring
Fixing ring
31
