5.2 Features and Functions

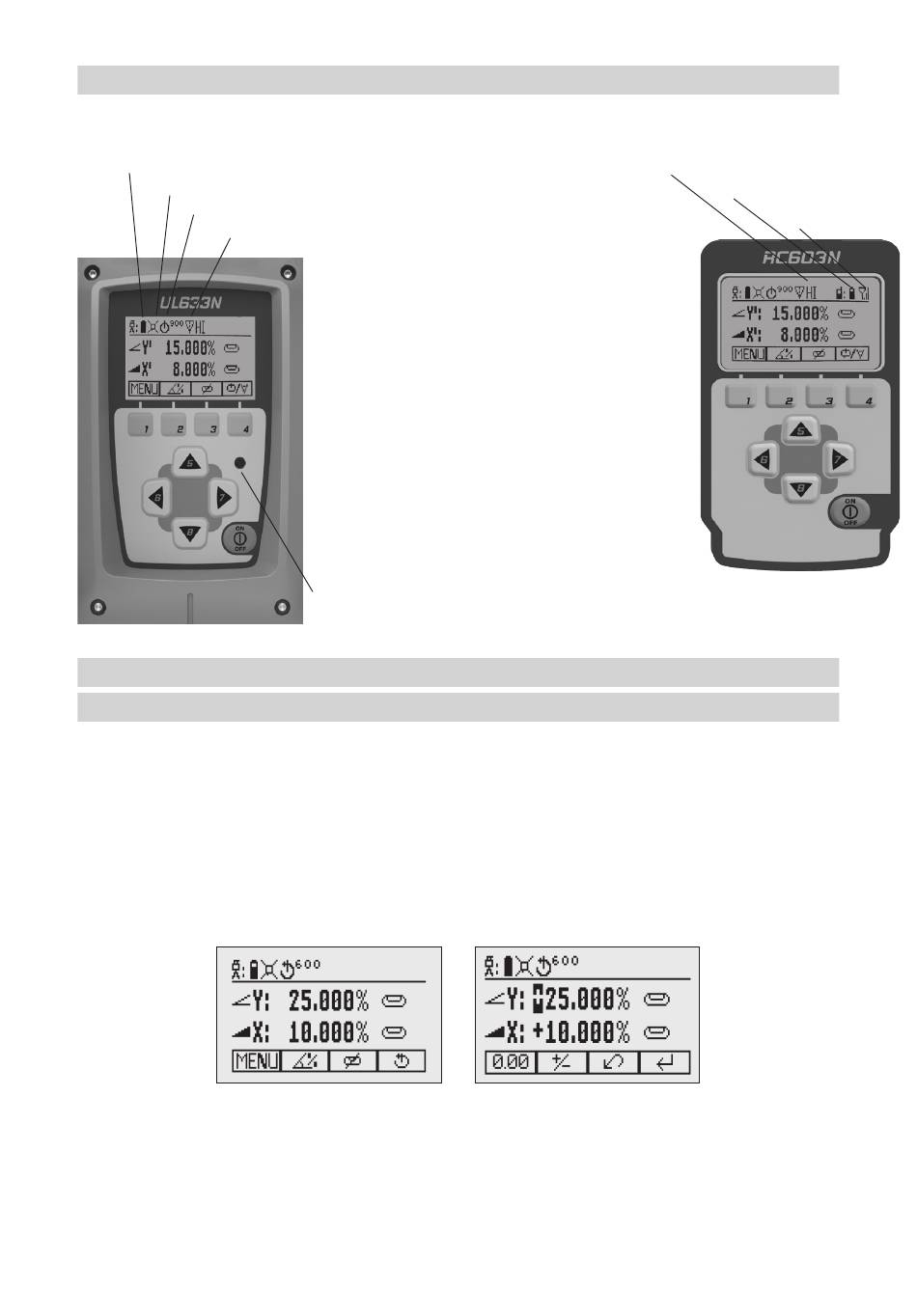

5.2.1 Standard Display

The remote control mirrors the functionality of the laser keypad
Battery status laser
Mask selection
Rotation speed/Scan angle
Fan Beam is activated

5.3 Standard Features

5.3.1 X-Y-Z-grade entering – Digit Select mode (Default)
Quickly press and release button 2 (Pic 5) starts the grade entering mode.
Both grade values will be shown.
A cursor (Pic 6) blinks at the current position which can be changed.
Press/release button 1 a quick set to 0%
Press/release button 2 a change the sign in front of the grade value
Press/release button 3 a return to the standard display.
Quickly press and release button 4 to confirm the selected grade value and return to the standard display.
Pic 5 Standard Display
Press and release button 5 or 8 (down or up) to move the cursor to the X- or Y-axis (not used in Z- mode).
Pressing and releasing button 6 or 7 (right or left) moves the cursor to the right/left.
Use button 1 or 2 (Plus or Minus) to set the desired digit (Pic 9).
The laser will self-level to the required grade position after confirming the grade change with button 4.
6
Button 1: Q uickly press and release starts the
MENU entry.
Button 2: Q uickly press and release starts the
grade entering mode.
Button 3: Q uickly press and release activates/
deactivates the manual mode.
Button 4: Q uickly press and release to toggle
through the pre-selected rotation speeds.
Press and hold for three seconds
changes the unit into scan mode. When
in scan mode, quickly press and release
button 4 toggles through the pre-selected
scan sizes.
Button 5, 8: up/down arrow buttons.
Button 6, 7: left/right arrow buttons.
Button 9: O N/OFF button - press for 1 second to
turn on the unit; press and hold for 2
seconds to turn off the unit.
Leveling/Standby – LED (green/red)
HI alert function is activated
Pic 6 Grade Entry Mode
Battery Status Remote Control
Status Radio Connectivity
