5.3.5 Scan Mode

Press and hold button 4 at the Standard Display for three seconds to change the unit into scan
mode.
Quickly press and release button 4 to toggle between the pre-selected scan sizes 5, 15, 45, 90,
180 degrees and 0; regardless if the unit is in automatic or manual mode.
When working in horizontal automatic mode, press and hold button 5/8 to increase/decrease the
line size in 5 degrees increments. Press and hold button 6/7 moves the scan line to the right/left direction.
When used in automatic vertical mode, pressing and holding button 5/8 moves the scan line counterclockwise/
clockwise. When set up vertical, pressing and holding button 6/7 moves the scan line into the right/left direction
regardless if in automatic or manual mode.
Note: Press and hold button 4 for three seconds to change the unit back to rotation mode (default) mode.

5.3.6 Manual Mode

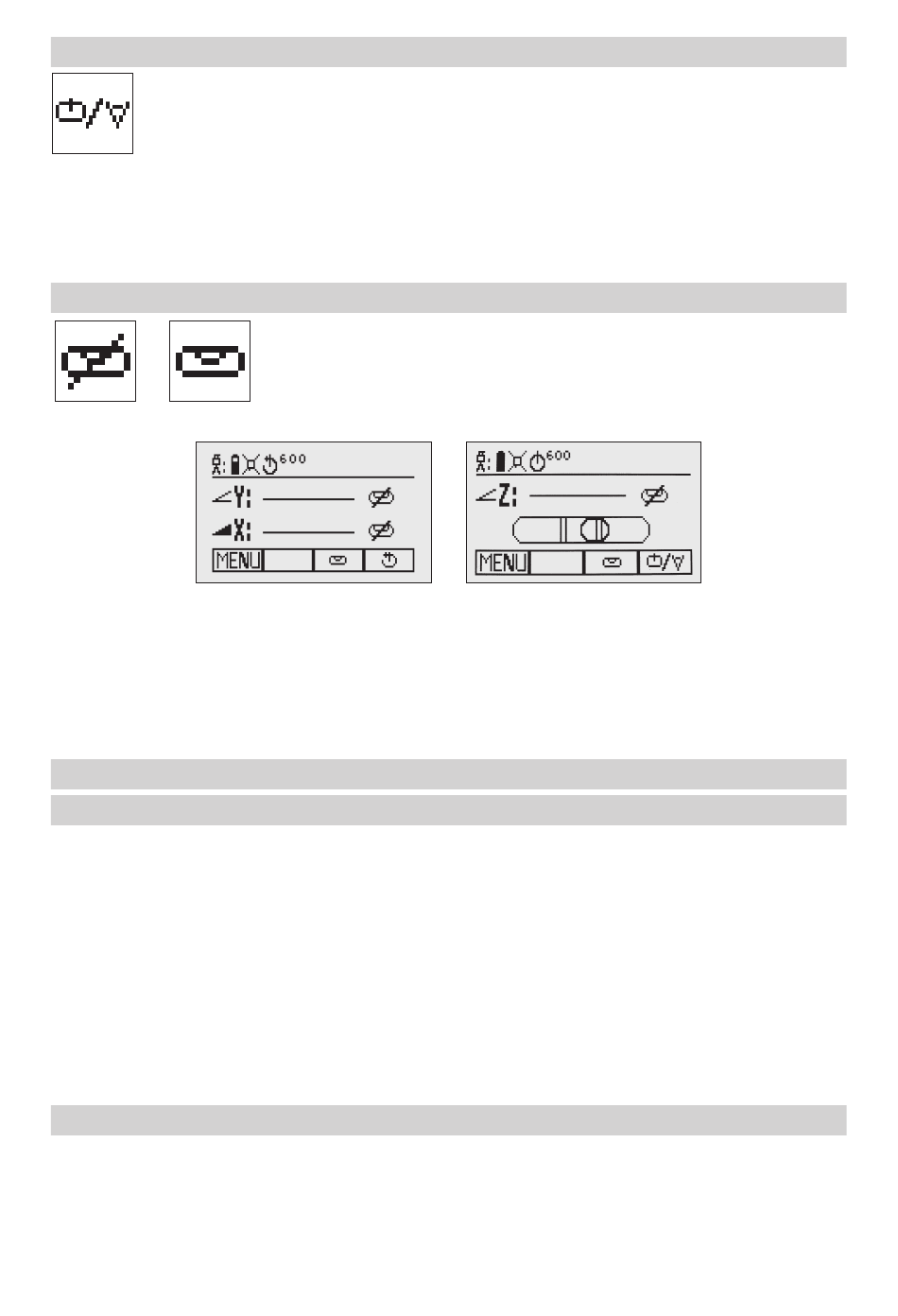

Pic 12 Horizontal manual
In manual mode (horizontal), the Y-axis can be sloped by pressing the Up-(5) and Down-Arrow-(8) buttons on
the laser's keypad or the remote control. Additionally, the X-axis can be sloped by pressing the Left-(6) and
Right-(7) Arrow-buttons on the laser or remote control.
In manual vertical mode, the up and down arrow buttons adjust the Z-axis slope, and the left and right arrow
buttons align the laser beam to the right/left side.
To resume automatic self-leveling mode, press the manual button again.

6 SPECIAL MENU FEATURES

6.1 Menu Functions (Radio controlled)

Press and release button 1 at the Standard Display to enter the MENU.
The menu offers always only the features which can be selected depending on the setup (horizontal
or vertical).
The icon of the selected function will be highlighted.
A down arrow at the the right site indicates that the user can scroll down through the menu using the
button 8 (down arrow).
After going to the next menu row, an up/down arrow at the the right site indicates that the user can scroll up/
down through the menu (4 different screens) using the buttons 5/8 (up/down arrows).
Pressing and releasing button 3 changes the unit always back to the standard or previous display.
Press and release the buttons 6/7 until the desired icon at the selected menu row is highlighted.
Press and release button 4 to open the submenu OR start the selected function.

6.2 Menu Functions (IR controlled)

If the RC603N is paired with a transmitter and the radio connection is not available, e.g., through a pipe, the
IR connection offers reduced functions such as Spot Align, Spot Match and Pairing.
8
Pressing and releasing button 3 at the Standard Display activates/deactivates
the manual mode regardless if set up horizontal or vertical.
Manual mode is indicated by horizontal lines next to the axes symbols (Pic 12).
An additional bubble helps to adjust the laser on the cross axis when set up
vertical (Pic 13).
Pic 13 Vertical manual
