  • Page 1 January 2015 LL300S Hands-On Training...

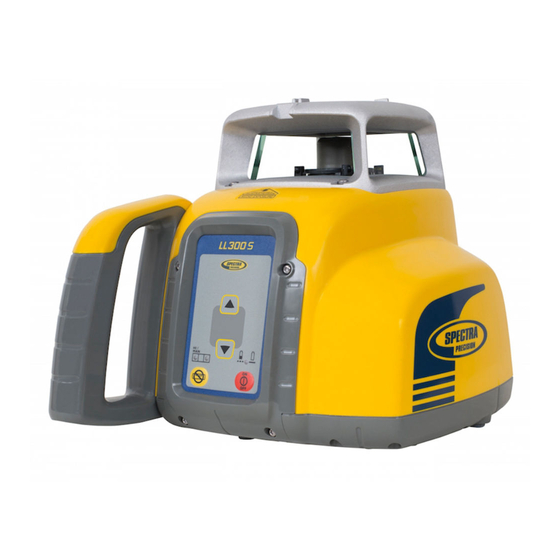

  • Page 2 LL300S Controls Slope Buttons HI-/Manual- Standby - LED Level-LED Battery Status LED Power Button Manual Mode/Standby Button...
  • Page 3 RC402N Radio Remote Control LCD - Display Menu button Enter button Up & Down Buttons Left & Right Buttons RC402N-Battery status LED Manual Mode/Standby On/Off Button Button Hand loop...
  • Page 4 LL300S Peripherals Metal Sunshade Sighting Guides Serial Number Beam Exit 5/8” x 11 Rubber Feet...
  • Page 5 LL300S Peripherals Laser Safety Labels Rubber Foot 5/8” x 11 Plastic Feet...

  • Page 6: Installing The Batteries

    Installing The Batteries § Enter the battery housing, by turning the battery- door knob counterclockwise...
  • Page 7 Installing The Batteries § Install/remove the rechargeable battery Pack. It is keyed to prevent mis-insertion. The cage prevents accidental charging of Alkaline batteries § Do not try to open the cage for exchanging the rechargeable batteries Worldwide charger has plugs for §...
  • Page 8 Installing The Batteries § If using 4 x D-cell Alkaline's, note the plus (+) and minus(-) diagram on the battery door. Do try to install Alkaline batteries in the rechargeable battery Pack! New warning label at the battery cage § Special screws are used to ensure only autorized service centers can replace the batteries.

  • Page 9: Turning On/Off

    Turning On/Off § To turn the unit on, press and release the power button – The unit always powers up in automatic self-leveling mode – All LEDs are turned on for 3 seconds (diagnostic mode). – Green LED flashes during self- leveling –...

  • Page 10: Activating/Deactivating Standby Mode

    Activating/Deactivating Standby mode Standby mode helps to increase the battery life and controls the laser setup during breaks. The self-leveling and rotation will be stopped and the beam will be turned off while the HI alert is still active. § Press and hold the Manual button at the laser or remote control for 3 seconds activates the Standby mode.
  • Page 11 Activating/Deactivating Manual Mode § “Manual” bypasses the laser’s automatic leveling, to use the laser in slope or vertical mode § Press and release the manual-mode button at the transmitter or remote control – Manual LED will flash red § Change the slope using the arrow buttons at the laser (Y-axis) or remote control (both axes).
  • Page 12 Single Y-Axis Slope Mode § To activate the single Y-axis slope mode, press the manual mode button at the laser or remote twice. – The red and green LED’s will flash simultaneously once a second § To resume automatic self- leveling mode, press the manual mode button (transmitter or remote) again.
  • Page 13 Grade Matching using Single Slope Mode 1. Set up the laser at the first elevation point and align it to the second desired slope/ elevation hub using the sighting guides on the sunshade. 2. Check the laser beam elevation close to the laser.
  • Page 14 Grade Matching using Single Slope Mode 3. To activate the Y-axis single slope mode, press the manual mode button twice. The red and green LED flash simultaneously (once a second). 1 Hz 4. Set the grade rod with the receiver attached to it on the second desired slope/elevation hub.
  • Page 15 Grade Matching using Single Slope Mode 5. Press the up and down arrow buttons at the laser or at the remote control until you get an on-grade reading on the receiver. 6. Check the elevations along the direction of the slope.
  • Page 16 Mask Mode using the standard method Mask Mode – allows you to electronically turn off the laser beam (electronic shutters) in up to 3 lighthouse windows to prevent interference with other receivers on the jobsite. To activate the mask mode on the + or -Y-axis, press the Up or Down §...
  • Page 17 Special Features using the optional RC402N The remote control mirrors the basic functionality of the LL300S keypad and offers additional features. Battery status laser M-Button : Quickly press and release Mask mode indication starts the MENU entry and can be used...
  • Page 18 Press the power button to turn on the radio remote control. Display at RC402N Display at RC402N LL300S – horizontal setup LL300S - vertical setup To turn off the radio remote control, press and hold the power button for 2 seconds.
  • Page 19 Pairing the remote control with the transmitter § First, make sure the transmitter and the remote control are turned off. Then press and hold the Manual button and turn on the transmitter. – The battery LED flashes fast. § During the next 6 seconds repeat the same steps on the remote control.
  • Page 20 Mask Mode using the Remote Control‘s menu § Press and release the button at the Standard Display and select >>Mask Mode<< by pressing the down arrow button once. Press and release the button, the § mask symbol occurs. § For selecting the side, press and release one of the arrow buttons.
  • Page 21 HI-Alert selection at the RC402N Remote Control HI-Alert Selection § Press and release the button at the Standard Display and go to >>Settings<< by pressing the down arrow button twice. § Press and release the button, HI-Alert will be marked in arrow brackets; then press the button again.
  • Page 22 Sensitivity selection at the RC402N Remote Control Sensitivity Selection § Press and release the button at the Standard Display and go to >>Settings<< by pressing the down arrow button twice. § Press and release the button, then press button once. Sensitivity will be marked in arrow brackets.
  • Page 23 Language selection at the RC402N Remote Control Language Selection § Press and release the button at the Standard Display and go to >>Settings<< by pressing the down arrow button twice. § Press and release the button, then press button twice. Language will be marked in arrow brackets.
