Press and release the MENU button at the Standard Display.
Pressing and releasing button 3 changes the unit always back to the standard or previous display.
Press and release the buttons 5 to 8 until the desired icon is highlighted.
Press and release button 4 to open the submenu OR start the selected function.
Note: Pairing function is needed to pair an already paired remote with a new transmitter.
The new transmitter has to be set to the pairing dialog for this operation. Otherwise the pairing can not be
successful processed.
The pairing information of the previous pairing is still stored in the previous paired transmitter and should be
deleted in the pairing dialog of this transmitter
Note: If a remote is paired with a transmitter the IR signals of the remote (in case of an interrupted radio
connection) will transmitted in a private mode so that only the paired transmitter can received these IR
commands.

6.3 Automatic PlaneLok Mode

The PlaneLok mode can be activated in horizontal and vertical
automatic and manual mode.
In PlaneLok mode when set up horizontal, the beam will be locked
to a fixed elevation point (up to 150 m (490 ft) located on one axis
at each side of the laser.
For keeping vertical alignments fixed to a direction point, PlaneLok
can be used in both directions on the Y-axis and/or on the X-axis.
Note: In every PlaneLok mode the laser continues to servo to the
receiver's signals. Any loss of signal over an extended period of time (1 minute) causes the laser to go into
the HI-alert condition (beam turns off, rotor stops and a warning message occurs at the LCD. PlaneLok mode
can be reactivated after the error message has been deleted with button 4. Exiting of PlaneLok mode can be
done by pressing button 3 (ESC) or any HL760 button.
Horizontal Set Up:
1. Set up the laser over the reference point.
2. A ttach the HL760 receiver to a grade rod. Place the receiver at the second point and adjust it to the On-
grade position. The receiver should be permanently mounted at this location and at the desired elevation.
3. U se the sighting guides on the top of the laser to align the laser to the receiver. Turn the laser on the tripod
until it is roughly aligned to the receiver's position (the alignment range for both axes is +/-40°).

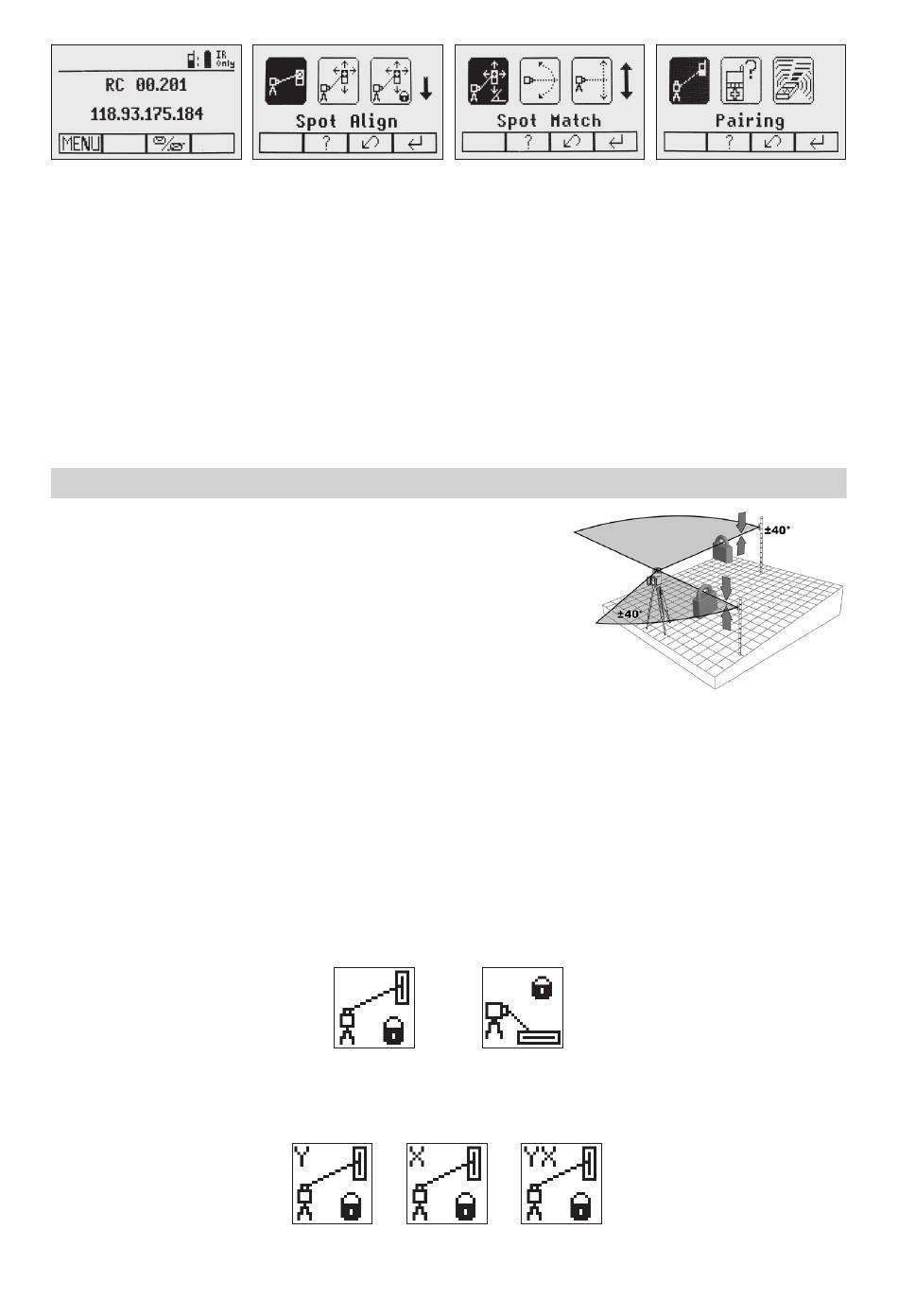

4. Press and release the MENU button at the Standard Display and select PlaneLok (Pic 14).
5. W hen set up horizontally, press and release button 4 to open the PlaneLok submenu; select the desired
PlaneLok axis Y (Pic 16) or X (Pic 17) or Y and X-axis (Pic 18) then press button 4 to start PlaneLok.
Pic 14 PlaneLok
horizontal
Pic 16 PlaneLok Pic 17 PlaneLok
Y-Axis X-Axis
Pic 15 PlaneLok
vertical
Pic 18 PlaneLok Y-
and X-Axis
