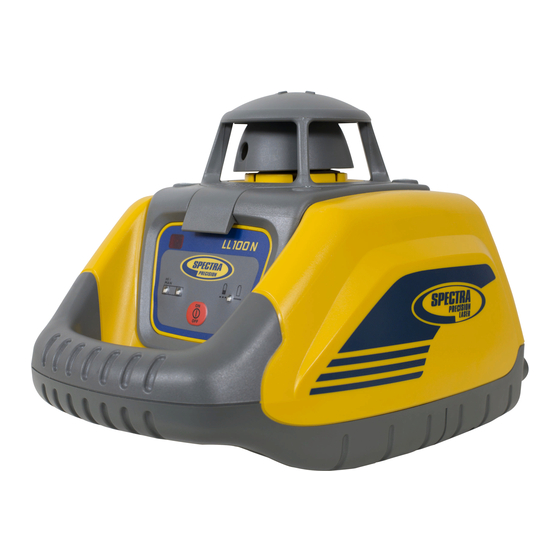

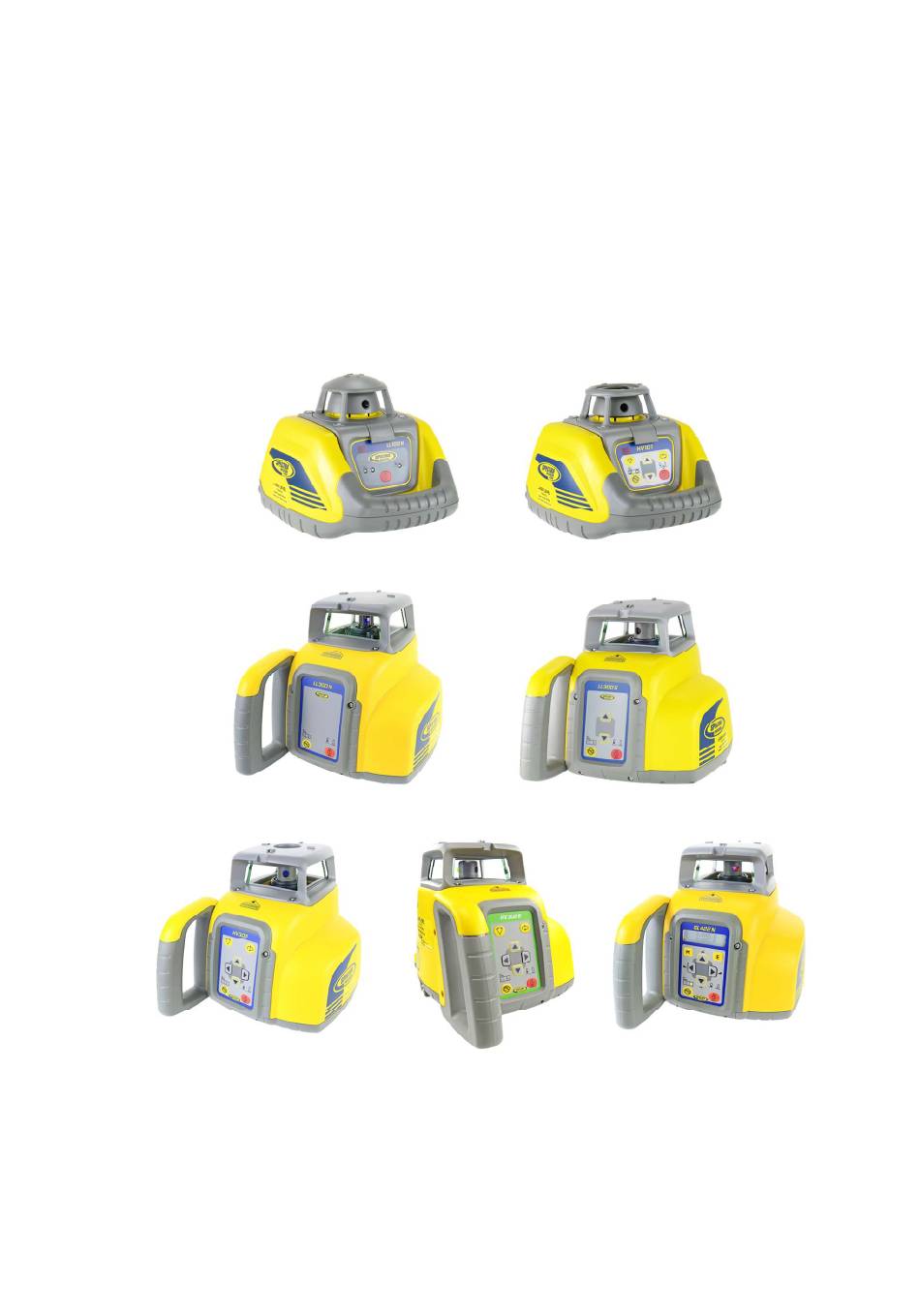

- Page 1 Laser Levels Online Spectra Precision Laser Range Handy Tips & Advice Spectra LL100N, Spectra HV101, Spectra LL300N, Spectra LL300S, Spectra HV302, Spectra HV302G & Spectra GL422N REVISION 1.1 © 2021 Laser Levels Online...
- Page 2 Service Department by Telephone: 08000 869 769 or Email: sales@laser-level.co.uk Tough, Simple & Reliable There’s a reason Spectra Precision Laser is the strongest name in the industry. We invented the industry. From day one, we have pioneered every major development in laser positioning for construction.
- Page 3 Never operate Laser in front of glazing or any shiny surfaces! See page 24 for further details. The following general guidance is applicable to: Spectra LL100N, Spectra HV101, Spectra LL300N, Spectra LL300S, Spectra HV302, Spectra HV302G & Spectra GL422N. Position Laser Place the Laser Level on a fi...
- Page 4 INSTRUCTIONS Vertical Levelling (HV101, HV302, HV302G, GL422N) WARNING Never operate Laser in front of glazing or any shiny surfaces! See page 24 for further details. The following general guidance is only applicable to: Spectra HV101, Spectra HV302, Spectra HV302G & Spectra GL422N. Position Laser Place the the Laser Level on the rear lay-down mount on a fi...
- Page 5 INSTRUCTIONS 90° Squaring (HV101, HV302, HV302G) The following general guidance is only applicable to: Spectra HV101, Spectra HV302 & Spectra HV302G. Position Laser & Power On Take the Laser Level off the tripod and lay on a fi rm surface, at ground level on the rear lay-down mount.
- Page 6 GL422N rechargeable lasers are supplied with the Spectra SMC62 Worldwide Charger 6.2V. Spectra SMC62 Worldwide Charger 6.2V This is the Genuine Spectra Precision® Plug-in Mains Charger 6.2V for WORLDWIDE use. All plug adapters (UK, US/CAN, EU & AUS/NZ) are included. (This Charger is NOT recommended for use with any other equipment).
- Page 7 CHARGING & BATTERIES (CONTINUED) LL300N (Rechargeable Battery Pack) The Spectra LL300N is powered by the Spectra Precision SBP5 5,000mAH NiMH rechargeable ● battery pack which will be pre-installed in the base of the laser. The battery pack contains 4 x 1.2V NiMH 5,000mAH rechargeable batteries. This battery pack ●...
- Page 8 CHARGING & BATTERIES (CONTINUED 2) LL300S, HV302, HV302G, GL422N (Rechargeable Battery Pack) The Spectra LL300S, HV302, HV302G and GL422N are all powered by the Spectra Precision ● SBP10 10,000mAH NiMH rechargeable battery pack which will be pre-installed in the base of the laser.
- Page 9 CHARGING & BATTERIES (CONTINUED 3) LL300N, LL300S, HV302, HV302G, GL422N (Alkaline Batteries) Non-rechargeable alkaline batteries being fi tted. Although the Spectra LL300N, LL300S, HV302, HV302G and GL422N Lasers are intended to run using a rechargeable battery pack, it is also possible to use 4 x type “D” Alkaline batteries instead.
- Page 10 CHARGING & BATTERIES (CONTINUED 4) LL100N & HV101 (Alkaline Batteries) The Spectra LL100N & Spectra HV101 are powered by 2 x 1.5v type “D” alkaline batteries ● which will be pre-installed. 2 x 1.5v type “D” alkaline batteries will give around 50 hours of continuous use.
- Page 11 It cannot be used to turn the Laser ON or OFF (a feature not available on any Spectra laser level system). It is compatible with the Spectra LL100N, Spectra HV101 & Spectra LL300N only. However, not all remote functions are available on all models of laser.
- Page 12 RC601UK REMOTE CONTROL (CONTINUED) Power Supply & Battery Replacement The RC601UK is powered by 1 x 9v PP3 alkaline battery which will be pre-installed. ● When required, unscrew the rear battery compartment and fi t 1 x 9v PP3 alkaline ●...
- Page 13 Y axis to set a progressive fall or gradient. (See Gradients & Slopes section on page 17 for further details). Grading The LL100N, HV101 & LL300N are all DUAL GRADE facility laser levels when using the Remote ● Control. This means that they can be switched to “Manual” (to override the self levelling system) allowing the user to set a grade (incline/slope) in the X axis only, Y axis only or both together.
- Page 14 RC601UK REMOTE CONTROL (CONTINUED 3) LL100N, HV101 & LL300N The following general guidance is applicable to: Spectra LL100N, HV101 & LL300N. Setting Single Axis Slope This example sets a grade in the X axis. ● Press the ON/OFF button once and the Laser will power on and begin automatically self- ●...
- Page 15 HOW TO SET 90° SQUARING Working Example The following general guidance is only applicable to: Spectra HV101, Spectra HV302, Spectra HV302G. The following description in this guide, explains the general principles of setting-out 90 degree squaring when using the Spectra Laser Level. It speeds up the classic 3/4/5 triangle method, giving better accuracy and alignment over much longer distances.
- Page 16 HOW TO SET 90° SQUARING Working Example (Continued) The following general guidance is only applicable to: Spectra HV101, Spectra HV302, Spectra HV302G. User Tip Do not mount the in “lay-down” on a surveying tripod. It must be positioned directly Laser Level onto the working surface.
- Page 17 HOW TO SET SLOPES (FALLS/GRADES) Working Example (Requires RC601UK Remote Control) The following description in this guide, explains the general principles of setting a Slope (Fall/ Grade) when using a Spectra Rotary Laser Level with the Spectra RC601UK Remote Control. Equipment You will need the , a surveying tripod, measuring staff...
- Page 18 HOW TO SET SLOPES (FALLS/GRADES) Working Example (Continued) Important note: All “grade facility” rotary lasers revert back to the auto (self) level condition if switched Off without retaining the gradient set. So its recommended to complete the ground- works before switching the laser Off . Once this 1:40 fall is set, the User can use this inclined laser beam as a datum to set the depth of either the crown of the drainage pipe or the Invert level, anywhere in range of the laser –...
- Page 19 GRADIENT CONVERSION CHART GL422N Only Grade Grade Grade Grade Grade % 1:10 = 10.000 1:50 = 2.000 1:90 = 1.112 1:250 = 0.400 1:750 = 0.134 1:11 = 9.090 1:51 = 1.960 1:91 = 1.098 1:255 = 0.392 1:775 = 0.130 1:12 = 8.334 1:52 = 1.924 1:92 = 1.086...
- Page 20 HOW TO SET SLOPES (FALLS/GRADES) Working Example 2 (when you do NOT know the % grade to set) Use diagrams in conjunction with written example on page 21. Diagram 1 Diagram 2 Diagram 3...
- Page 21 Before moving position from cover A, press the laser’s Manual Override button to disable the auto (self) levelling. On the LL100N, this is only found on the remote. Do NOT un-clamp detector. Move position and place extended measuring staff over the centre of cover B, holding it vertically (see diagram 2).
- Page 22 HOW TO SET SLOPES (FALLS/GRADES) Working Example 2 (when you do NOT know the % grade to set) Models LL100N & LL300N: To make the next adjustment, use the RC601UK infra-red remote control if distance “D” is less than 20m. If “D” is more than 20m, a colleague must assist you using the remote control, being within 20m of the laser level.
- Page 23 CHECKING THE CALIBRATION Controlled Test If you believe the Spectra Laser is not giving accurate datums (after ensuring you have completely ruled out refraction of the laser beam explained on page 24), please carry out the following controlled test in your offi ce, or another indoor location. Position the on it’s tripod in the middle of your offi...
- Page 24 REFRACTION ISSUES Product types: All Rotary and Cross line laser levels Although there will always be the 0.1% of products that develop a fault, 99.9% of the technical enquiries we receive relating to “incorrect levels”, “random positions”, “out-of-level” or “Detector not picking up the beam correctly”...
- Page 25 TROUBLE SHOOTING Error Cause & Solution Check Batteries Often lasers are sent to Service Centres with the following User battery mistakes: Standard batteries that are dead / Rechargeable batteries that are fl at and need charging and Polarity errors i.e. batteries of ei- Will Not Power On ther type that have been fi...
- Page 26 TROUBLE SHOOTING (CONTINUED) Error Cause & Solution Outside Levelling Range Or Impact Damage If the is positioned outside of it’s self levelling range Laser Level of ±5 degrees the rotating laser prism will tilt over to one side (to try and locate a level position) and then time-out. Re-position the so that is is within ±5 degrees of level Laser Level...
- Page 27 CARE & MAINTENANCE Protecting the Spectra Laser Level Kit Your Spectra Laser Level is precision levelling equipment and should be treated as such. ● Always handle with care and transport within the carry case provided. Always turn the laser level off when transporting or moving around the job site. ●...
- Page 28 MAGNETIC MACHINE DETECTORS Check Out Our Range Of Magnetic Detectors Put a Magnetic Detector / Receiver on your machine and extend the benefi ts of any red beam rotary laser. They are reliable, simple to attach, extremely robust and easy to use. www.laser-level.co.uk/magnetic Laser Levels Online Unit 35, Bridge Business Centre, Beresford Way, Dunston Road,...
