4 HOW TO USE THE LASER SYSTEM

4.1 POWERING THE LASER

4.1.1 Batteries

WARNING
Ni-MH batteries may contain small amounts of harmful substances. Be sure to charge the battery before using
it for the first time, and after not using it for an extended length of time. Charge only with specified chargers
according to device manufacturer's instructions. Do not open the battery, dispose of in fire or short circuit; it
may ignite, explode, leak or get hot causing personal injury. Dispose in accordance with all applicable federal,
state, and local regulations. Keep the battery away from children. If swallowed, do not induce vomiting. Seek
medical attention immediately

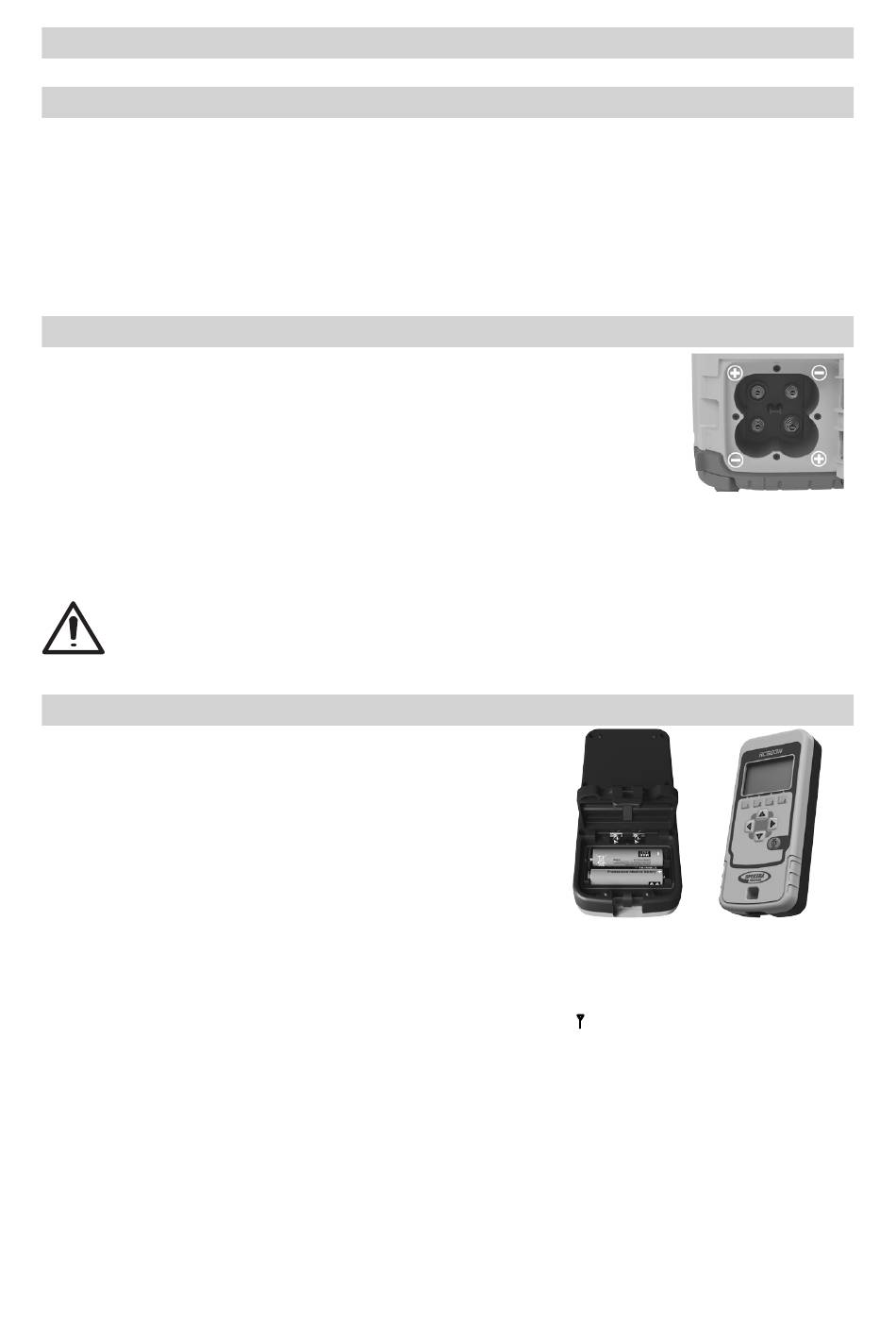

4.1.2 Recharging the Batteries

The laser might be shipped with a rechargeable Ni-MH battery pack.
Note: The approximate charge of the batteries is shown at the left top side of the LCD.
The charger requires approx. 10 hours to charge empty rechargeable batteries.
For charging, connect the plug of the charger to the recharge jack of the battery pack.
New or long-time out-of-use rechargeable batteries reach their best performance
after being charged and recharged five times. For Indoor applications the charger
can be used as a power supply for the laser.
Alkaline batteries can be used as a backup. Insert 4 D-cell batteries noting the plus (+) and minus (-) diagrams
inside the battery housing.
The batteries should only be charged when the laser is between 50° F and 104° F (10°C to
40°C). Charging at a higher temperature may damage the batteries. Charging at a lower
temperature may increase the charge time and decrease the charge capacity, resulting in
loss of performance and shortened life expectancy.

4.2 RC603N Radio/IR Remote Control

4.2.1 Powering the RC603N

1. Open the battery door using a coin or similar pry device to release
the battery door tab on the RC603N. RC603N will be shipped with
alkaline batteries. Rechargeable batteries can be used optional but
need to be charged externally
2. I nsert two AA batteries noting the plus (+) and minus (-) diagrams
inside the battery housing.
3. C lose the battery door. Push down until it "clicks" into the locked
position.

4.2.2 Turning On/Off the RC603N

The radio/IR remote control is a hand-held device that allows you to send operational commands to the laser
from a remote location.
Press the power button to turn on the radio remote control. The symbol " " and additional vertical bars appear
in the right corner of the remote's top display line indicating the radio connection status between the laser and
the remote control. If the RC603N is outside the radio operating range the remote switches automatically into
the IR connection capability.
Note: When the remote control is initially turned on, the standard display (model number and software version)
appear for the first 3 seconds, then the axes symbols and last-entered grade for each axis appear in the LCD.
With every button press, the LCD backlight is activated and turns off automatically if no button is pressed for
8 seconds.
To turn off the radio remote control, press the power button for two secounds.
Note: 5 minutes after the last button press, the remote control turns off automatically.
