Name Of Parts And Contents - Hitachi SRW-0J Instruction Manual

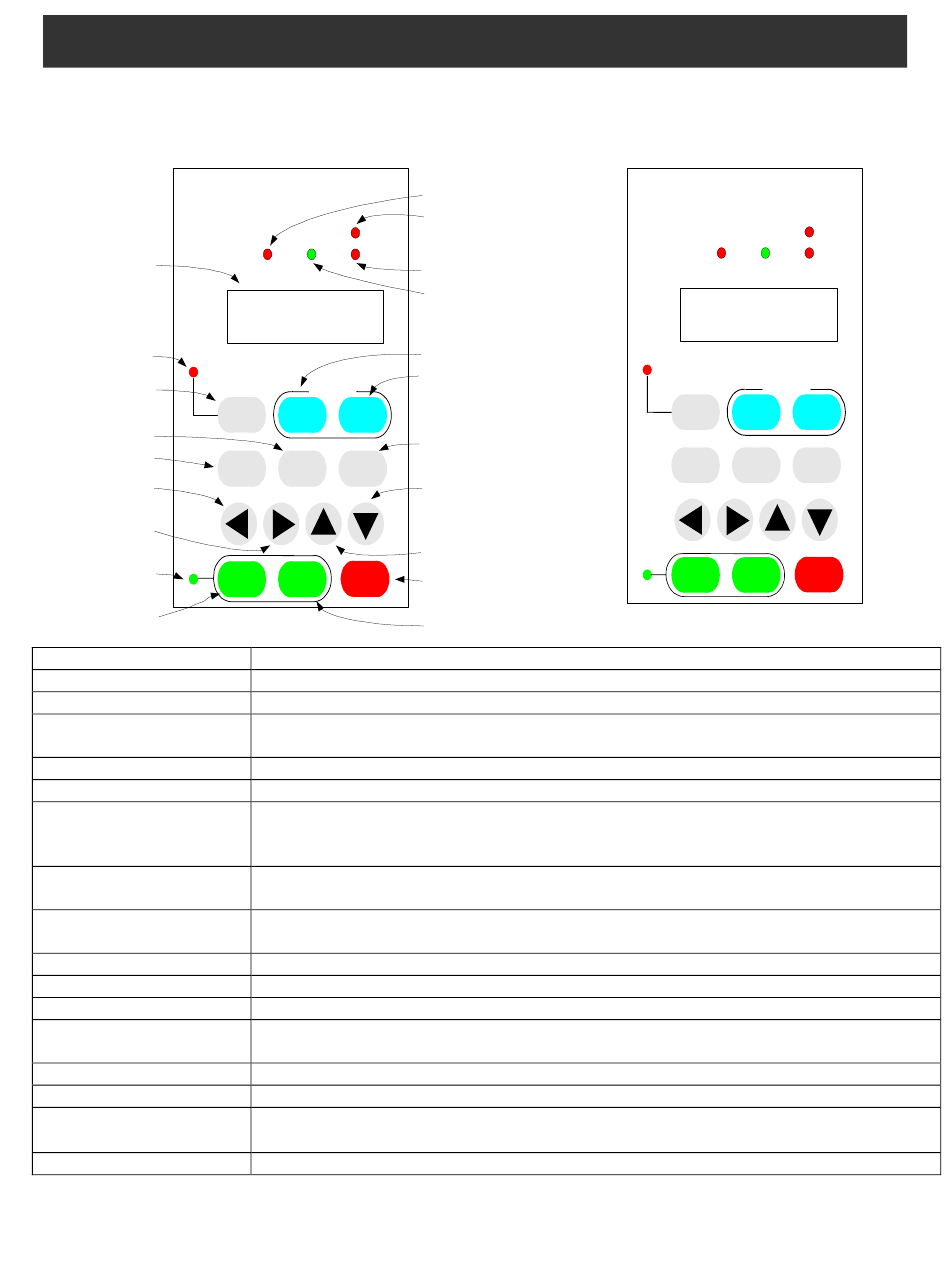

SRW-0J
LCD monitor
REMOTE lamp
REMOTE key
FUNCTION key
MONITOR key
LEFT CURSOR key
RIGHT CURSOR key
OPERATION
COMMAND
DISPLAY lamp
FORWARD RUN key
Name
LCD monitor
RUN lamp
PROGRAM lamp
POWER lamp
ALARM lamp
OPERATION
COMMAND
DISPLAY lamp
REMOTE key
READ key
COPY key
MONITOR key
FUNCTION key
STORE key
CURSOR key
UP,DOWN key
FORWARD,REVERSE
RUN key
STOP/RESET key
(NOTE 1) 2-LineDisplay for SJ300/L300P series only
(NOTE 2) SJ300/L300P series only
(NOTE 3) Press the key more than 3 seconds , and can change while the inverter stops .
(NOTE 4) The LEFT CURSOR key is valid for SJ300/L300P series only .
HITACHI
POWER
ALARM PRG RUN
FM 0060.00Hz
Iout 0022.5A
COPY
リモート 読み出し コピー
REMOTE READ COPY
モニタ 機能 記憶
MON FUN STR
0 1 3
2
正転運転 逆転運転
停止/ﾘｾｯﾄ
FWD RUN REV RUN STOP/RESET
Contents
Display of frequency, output current and set value , etc .
Light on when the inverter is running.
Light on when displaying set value of each function in monitor section.
Light will go on and off as a warning (when set value is incorrect).
Power lamp of control circuit.
Light on when the Inverter trips.
Light on only when operating command (RUN/STOP) is set in operator.
Remote key can change operation command and frequency command
method to the operator.
The key is used for storing the data of the inverter to the memory elements of
inside the remote operator.
The key to copy the data set which data is memorized in remote operator.
The key is used to enter monitor mode or trip monitor mode.
The key containing basic setting mode, extension functions mode.
The key to store the data set. (On changing set value, must be pushed or
value is lost.).
The key is used to move right and left.
The keys to change extension function mode, function mode and set value.
The key is used for operating motor but this key can command only operator.
(Check operation command display lamp, whether it flash or nor.).
The key is used to stop the motor, or reset an alarm.
Chapter 4 Name of parts and contents
