3.1 Connect to inverter
3.1.1 Connecting to operator on the surface of cover (SJ300/L300P series only )

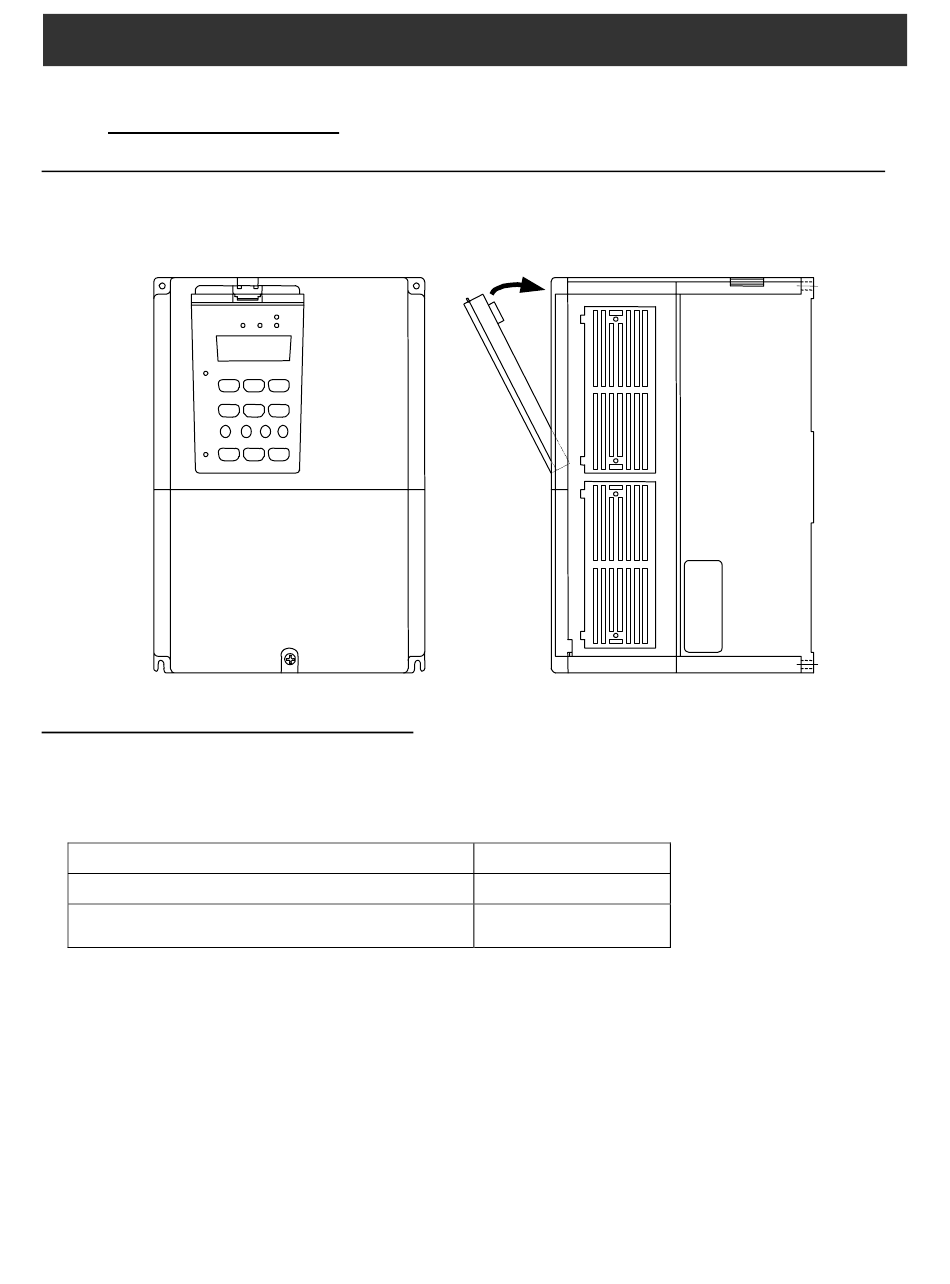

1. After setting up like a following figure, insert the operator to the connector vertically.
2. Turn on the power supply of the inverter , and Confirm that LCD screen of the operator is
ON.
3.1.2 Connecting by cable (Option)
1. Insert the both end of cable to main body and operator.
2. Turn on the power supply of the inverter , and Confirm that LCD screen of the operator is
ON.
SJ300,L300P,SJ100,L100 series
J300.L300,J100,J200JH300,J500,L50
series
UNIT
Chapter 3 Connection, wiring, and attaching
Cable
ICS-1 , ICS-3
ICS-1J ,ICS-3J
