Tech Lighting ELEMENT E3-L AE Series Installation Instructions Manual page 6

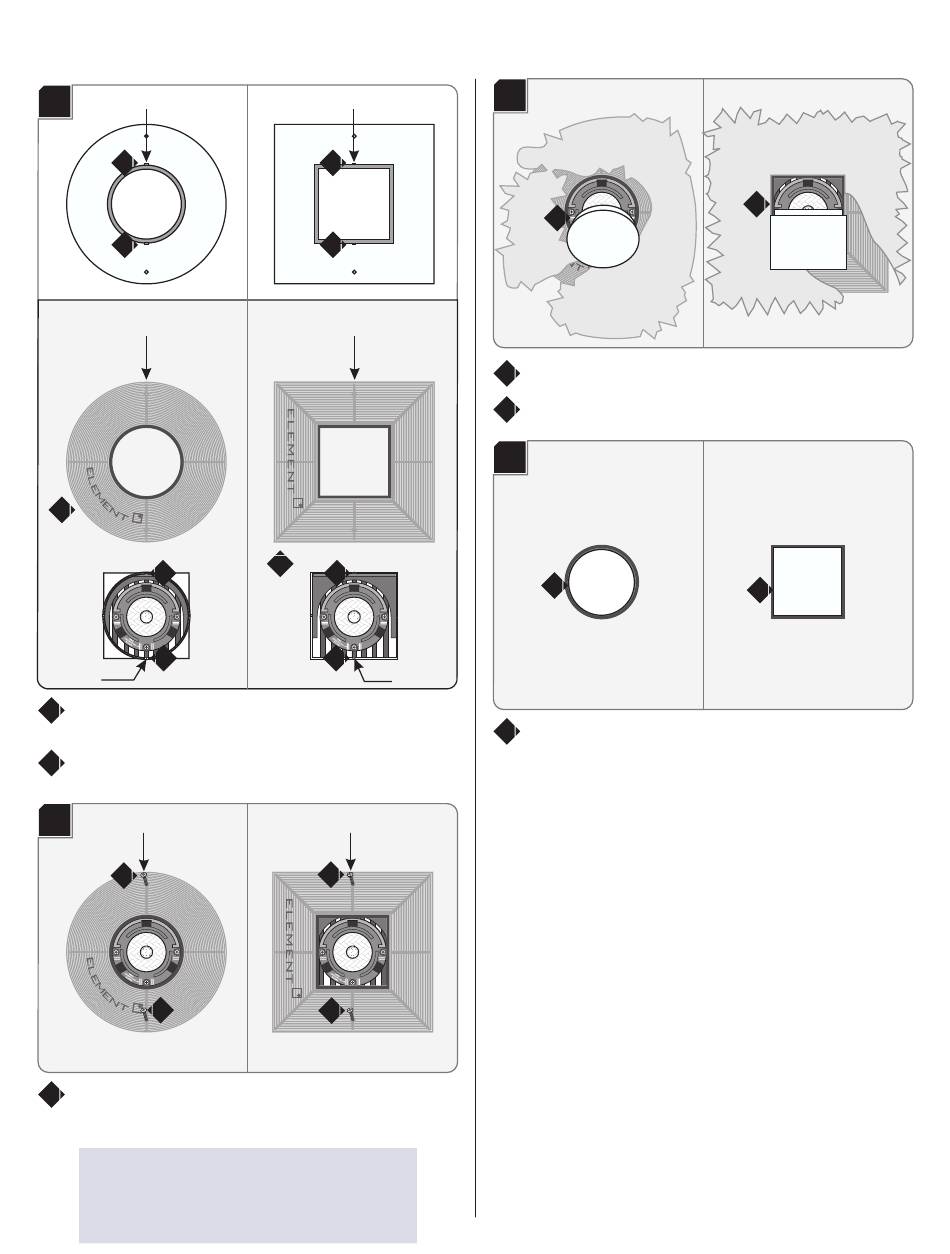

Install Plaster Ring
(For Flangeless Versions)
7A
TAB
1
1
ROUND PLASTER RING
2
1
1
CUT OUT
Line up the two tabs in back of the plaster ring with the
1
two cut out sections of the collar's inside edge.
2
Push the plaster ring tabs into the cut out sections of the
collar's edge.
7B
#8-32 SCREW
3
3
Secure the plaster ring in place with the two provided flat
3
head #8-32 screws. Make sure that the screws penetrate
through the drywall into the housing screw holes.
NOTE: Do not overtighten the screws!
Overtightening may bend the plaster ring,
causing the plaster surface to come away from
the drywall.
TAB
1
1
SQUARE PLASTER RING
2
1
1
CUT OUT
#8-32 SCREW
3
3
7C
4
4 Plug the collar with the provided dust shield.
Properly plaster onto the plaster ring and drywall.
5
7D
6
Finish around the trim to match drywall.
6
6
4
6
