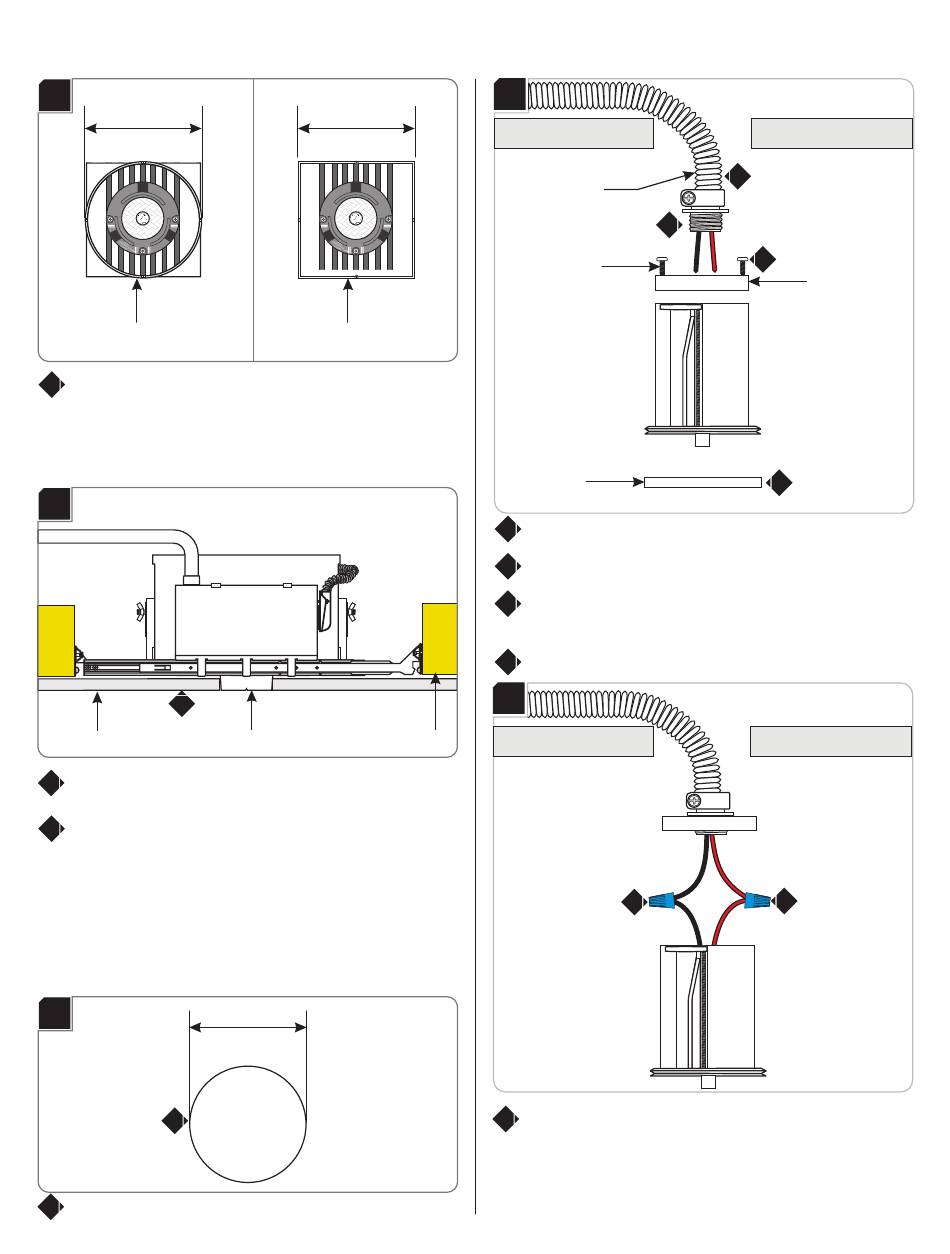

Tech Lighting ELEMENT E3-L AE Series Installation Instructions Manual page 4

Install Drywall
5A
3-7/8"
ROUND COLLAR
For round trims, mark a 3-7/8" diameter circle on drywall.
1
Cut out the marked section.
For square trims, mark a 3-7/8" square on drywall. Cut out
the marked section.
5B
2
DRYWALL
Align the cut out section of drywall with the collar and
2
install drywall.
3 Please follow instructions provided with emergency
battery backup to complete installation of the test switch.
Install Remote Test Switch
6A
1
1 Use a 1-9/16" hole saw to cut out the ceiling or wall
where the test switch will be installed.
3-7/8"
SQUARE COLLAR
COLLAR
1-9/16"
6B
FLEXIBLE
CONDUIT
#6-32 SCREW
CAP
2 Bring the flexible conduit out of the 1-9/16" hole.
Unscrew the #6-32 screws and remove the back ring.
3
Screw the back ring (from the face with two holes) to
4
the flexible conduit.
Unscrew the cap from the test switch port.
5
6C
JOIST
Connect the red and black wires in the test switch port
6
to the same color wire in the flexible conduit using wire
nuts.
4
2
4
3
5
6
6
BACK RING
