Installation Instructions for

Light Bar

ENERAL RODUCT NFORMATION

This product is suitable for damp locations.

This product can be dimmed with a low-voltage electronic dimmer.

This instruction shows a typical installation.

CAUTION: It is important to determine the proper

voltage needed, location of the transformer, and

fixture layout before beginning the following

installation.

Preparation and Assembly

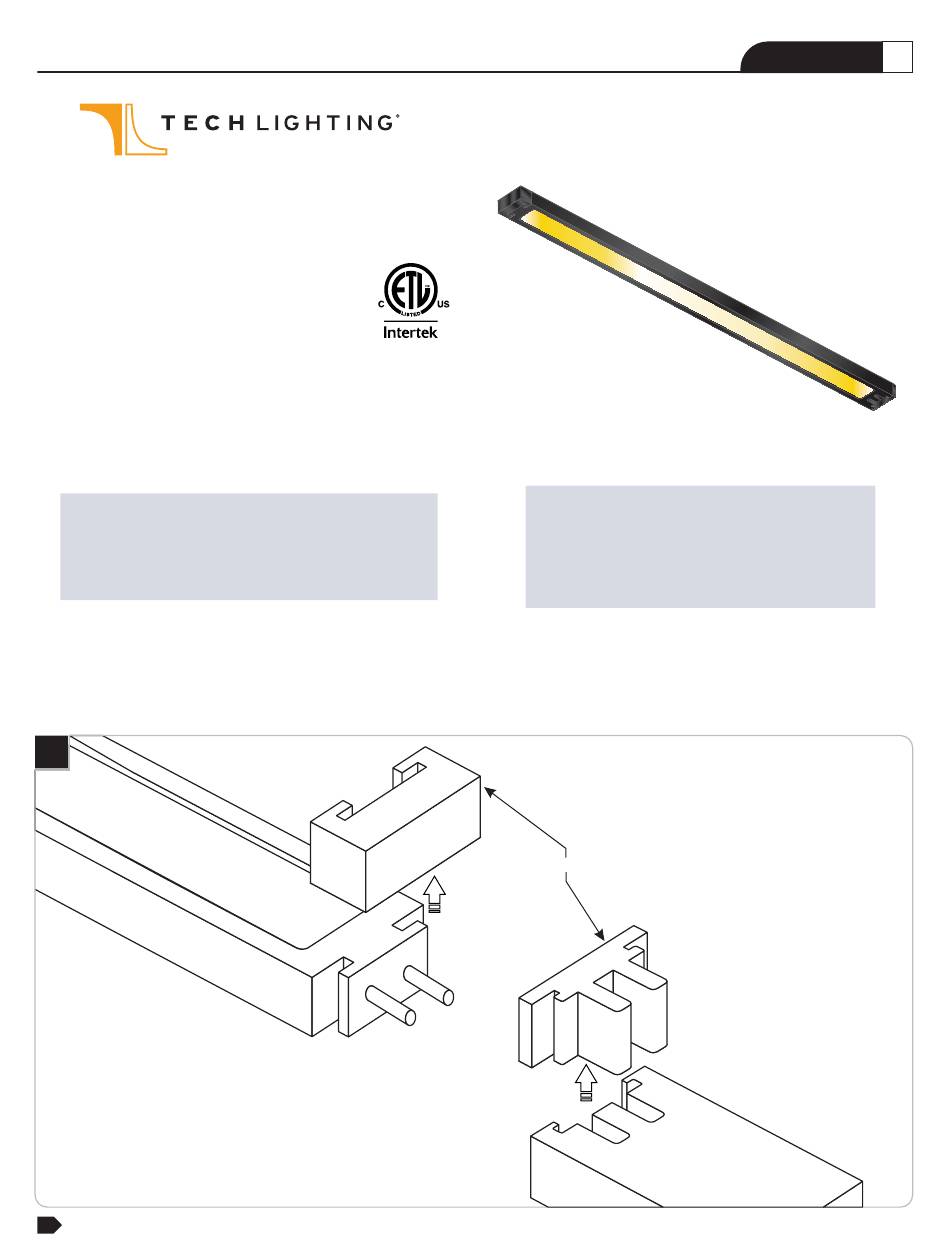

Slide off the end caps from the fixtures, power jumpers, and connectors that will be used as a connecting end.

UNILUME

CAUTION - RISK OF FIRE

This product must be installed in accordance with

the applicable installation code by a person familiar

with the construction and operation of the product

and the hazards involved.

Use minimum 90°c supply conductors.

END CAP

920LBAR

700UCRD_

1.0

Need help?

Do you have a question about the UNILUME 700UCRD Series and is the answer not in the manual?

Page 1 Installation Instructions for 920LBAR Light Bar 700UCRD_ UNILUME ENERAL RODUCT NFORMATION This product is suitable for damp locations. This product can be dimmed with a low-voltage electronic dimmer. This instruction shows a typical installation. CAUTION - RISK OF FIRE CAUTION: It is important to determine the proper This product must be installed in accordance with voltage needed, location of the transformer, and the applicable installation code by a person familiar...
Page 2 Jumper Connector L Connector T Connector Assemble the fixtures/connectors by aligning then sliding a male end into a female end until it snaps in place. See illustrations for all the connection accessories. Note: Multiple jumpers/connectors may be used consecutively for desired length or formation.
Page 3 Install the Fixtures MOUNTING BRACKET SCREW MOUNTING BRACKET MOUNTING SCREW SCREW HOLE Secure the fixture with the provided mounting screws. Install the mounting brackets to the fixture by aligning the mounting bracket holes to the screw holes on the Connecting the Power Feed Cable fixture and secure them in place with the mounting bracket screws.
Page 4 7400 Linder Ave, Skokie, IL 60077 847.410.4400 www.techlighting.com © 2013 Tech Lighting, L.L.C. All rights reserved. The "Tech Lighting" graphic is a registered trademark of Tech Lighting, L.L.C. Tech Lighting reserves the right to change specifications for product improvements without notification.
