Installation Instructions for

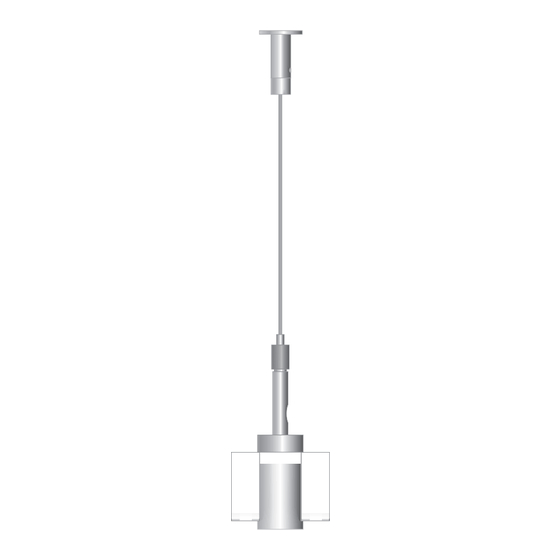

Adjustable Standoff With Conductive Connector
T ~ t r a k
SPECIAL INSTALLATIONS
GENERAL PRODUCT INFORMATION:
This product is suitable for indoor dry locations only.
Use the adjustable standoffs every four feet of a Single-
Circuit T~trak™ run.
Install the Standoff
1A
STANDOFF POST
CABLE POST
Remove the #8-32 set screw with the provided 5/64"
1
Allen wrench.
Remove the cable post from the standoff rod.
2
1B
CEILING
ANCHOR
3
Mark the standoff location points onto the ceiling.
4
Tap the anchor at the marked point into the ceiling up
to the threaded portion with a hammer.
TM
#8-32 SET SCREW
1
5/64" ALLEN WRENCH
2
3
4
CM
1C
Screw the anchor in the rest of the way with a Phillips
5
screwdriver.
1D
#8 SCREW
6
Fasten the standoff post to the anchor by inserting the
provided #8 screw through the standoff post and
screwing it to the anchor.
1
700TTSCCADJ_
5
ANCHOR
STANDOFF POST
6
920TTSADC
1.8
Advertisement
Related Manuals for Tech Lighting T-trak 700TTSCCADJ Series
Summary of Contents for Tech Lighting T-trak 700TTSCCADJ Series
- Page 1 Installation Instructions for 920TTSADC Adjustable Standoff With Conductive Connector 700TTSCCADJ_ T ~ t r a k SPECIAL INSTALLATIONS GENERAL PRODUCT INFORMATION: This product is suitable for indoor dry locations only. Use the adjustable standoffs every four feet of a Single- Circuit T~trak™...
- Page 2 Mount the Single-Circle T~trak™ to the Standoff With Conductive Connector NOTE : The two provided plastic inserts are not used in this procedure. #8-32 SET SCREW STANDOFF POST CABLE POST 5/64" ALLEN WRENCH Push the cable post completely into the standoff post. Align the cable post hole with the standoff post hole and replace the #8-32 set screw.
- Page 3 SPECIAL INSTALLATION: Converting the Standoff WHITE SIDE PLASTIC INSERT NOTE: In the event that the standoff cannot be located directly above the conductive connector, the following steps will allow for the standoff to be installed in close proximity to the conductive connector while still providing PLASTIC INSERT support and a connection between Single-...
- Page 4 CONDUCTIVE CONNECTOR CONDUCTIVE CONNECTOR WHITE SIDE ONE SINGLE-CIRCUIT WHITE SIDE THE OTHER SINGLE-CIRCUIT T~TRAK SECTION T~TRAK SECTION GRAY SIDE BOTTOM #4-40 SCREW BOTTOM #4-40 SCREW GRAY SIDE Look inside the conductive connector and make sure Push the other Single-Circuit T~trak section into the that the white insulator is facing up toward the ceiling.
