Installation Instructions for
Round or Square Type Chicago Plenum Adjustable Housing
with CMH Electronic Ballast for Flangeless Trims
CMH MR16 - ROUND/SQUARE FLANGELESS
GENERAL PRODUCT INFORMATION:
This product is suitable for indoor locations.
This instruction shows a typical installation.

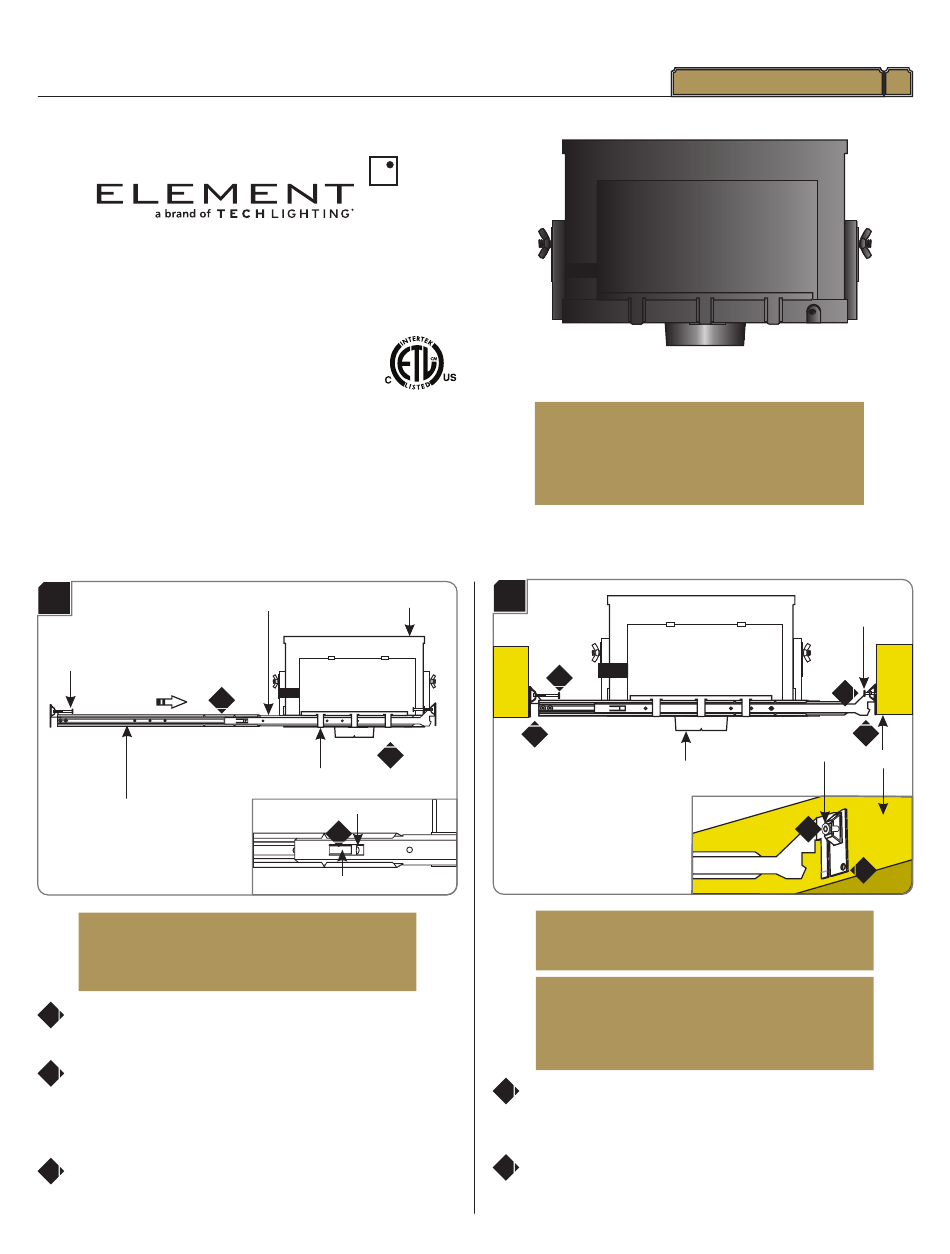

Install the Housing with Adjustable Bars
1A
INNER ADJUSTABLE BAR
NAIL
OUTER ADJUSTABLE BAR
NOTE:
If using the butterfly brackets, skip these
steps and refer to "Install the Housing with
Butterfly Brackets" on page 2.
Slide the inner adjustable bar completely through the
1
three housing clasps. Make sure the attached nail is on top.
Slide and push the outer adjustable bar completely onto
2
the inner adjustable bar so that the tab clicks into place
behind the stop point. This will prevent the adjustable bars
from coming apart.
Repeat steps 1 & 2 for the other side of the housing.
3
HOUSING
2
1
HOUSING CLASP
STOP POINT
2
TAB
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURN OFF POWER TO THE
ELECTRICAL BOX.
1B
5
4
TRIM HOLDER
NOTE:
The adjustable bars can be mounted to
joists that are spaced 16" - 24" apart.
NOTE:
The trim holder is 3/4" deep. When
installing the adjustable bars to joists, make sure
the bottom of the trim holder matches with
bottom of the drywall.
Align the adjustable bars so that the trim holder is exposed
4
below the joists just enough to match with the drywall
thickness.
Level the adjustable bars and hammer the nails completely
5
into the joists to secure the adjustable bars in place.
1
920E3HBC-ACP
E3_L_-C_AC_
NAIL
5
NAIL
5
1.0
4
JOIST
4
