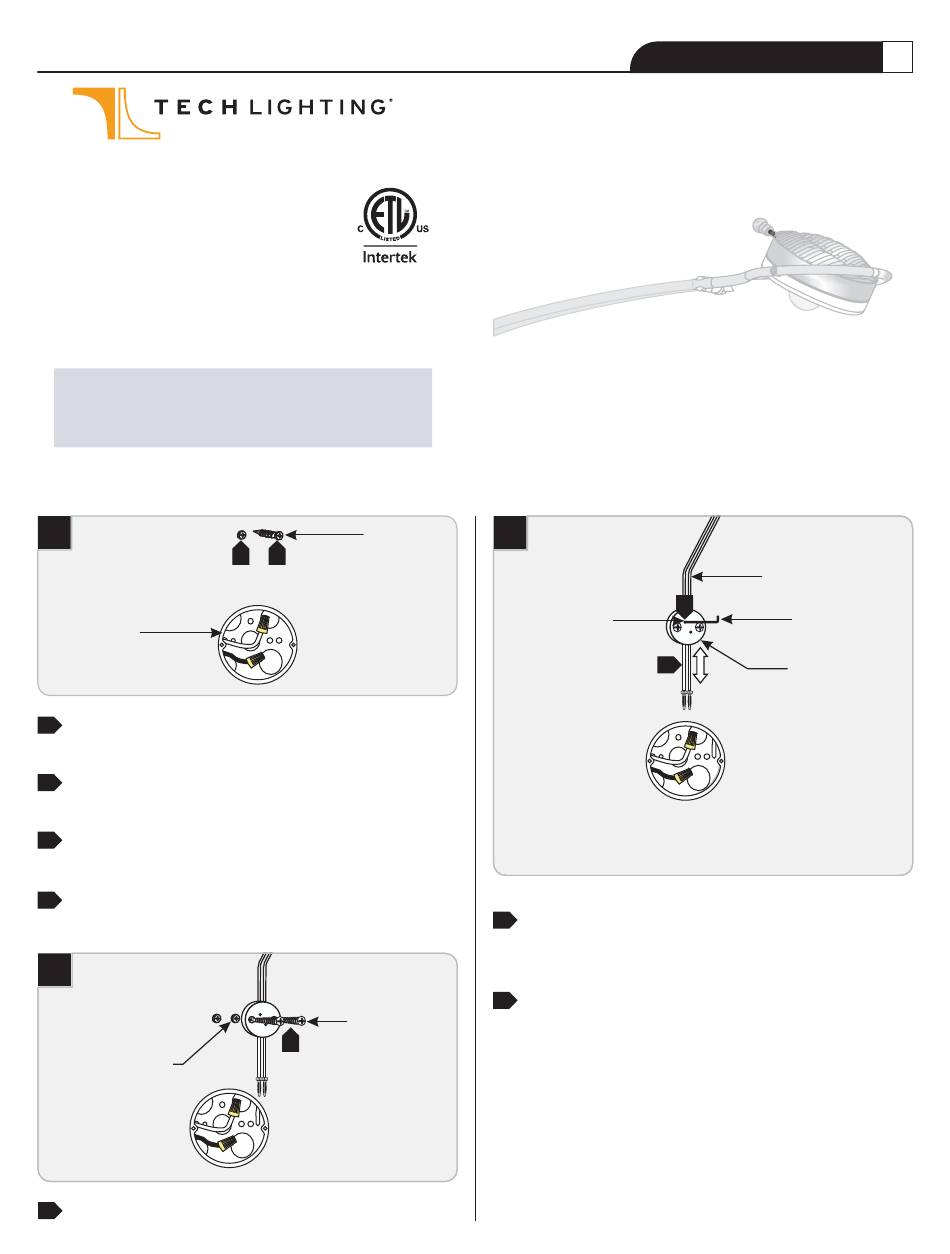

Tech Lighting Mona Lisa Installation Instructions

Installation Instructions for
Mona Lisa Picture Light
M ONA L ISA
G ENERAL RODUCT NFORMATION P I
This product is suitable for indoor dry locations only.
Minimum volume of the electrical box must be 6 cubic
inches (98 cubic centimeter).
For canopy installation see section 1.
For plug installation see section 2.
Installing the Fixture
1A
ELECTRICAL
BOX
The picture light bracket should be mounted right above
1
the electrical box.
2 Hold the picture light canopy against the electrical box
and mark the bracket holes (1-1/4" apart) on the wall.
3
With a hammer tap the anchors at the marked points
into the wall up to the threaded portion.
4 Screw the anchors in the rest of the way with a Phillips
screwdriver.
1B
ANCHOR
Mount the picture light bracket on the anchors with the
5
two #8 screws.
P ICTURE L IGHTS
:
(Canopy Installation)
ANCHOR
4 3
#8 SCREW
5
700DEMNLS__
1C
#6-32
SET SCREW
Adjust the picture light height by loosening the two
6
#6-32 set screws on the front of the picture light
bracket with the 1/16 Allen wrench.
7 Slide the arms to desired height and tighten the two
#6-32 set screws with the 1/16 Allen wrench.
1
FIXTURE ARMS
6
1/16 ALLEN
WRENCH
7
BRACKET
920MONA
