NOTE: When a fixture is installed in a location that requires servicing from below the ceiling through the fixture aperture, the branch
circuit connections need to be able to be brought out through the aperture. To accomplish this, an NM type cable in conjunction
with snap-in/push-in connectors must be used and a 12" service loop must be left available outside of the fixture housing wiring
compartment to allow additional branch circuit wiring to be pulled through the snap-in/push-in connector and extended out
through the aperture below ceiling level.
3B

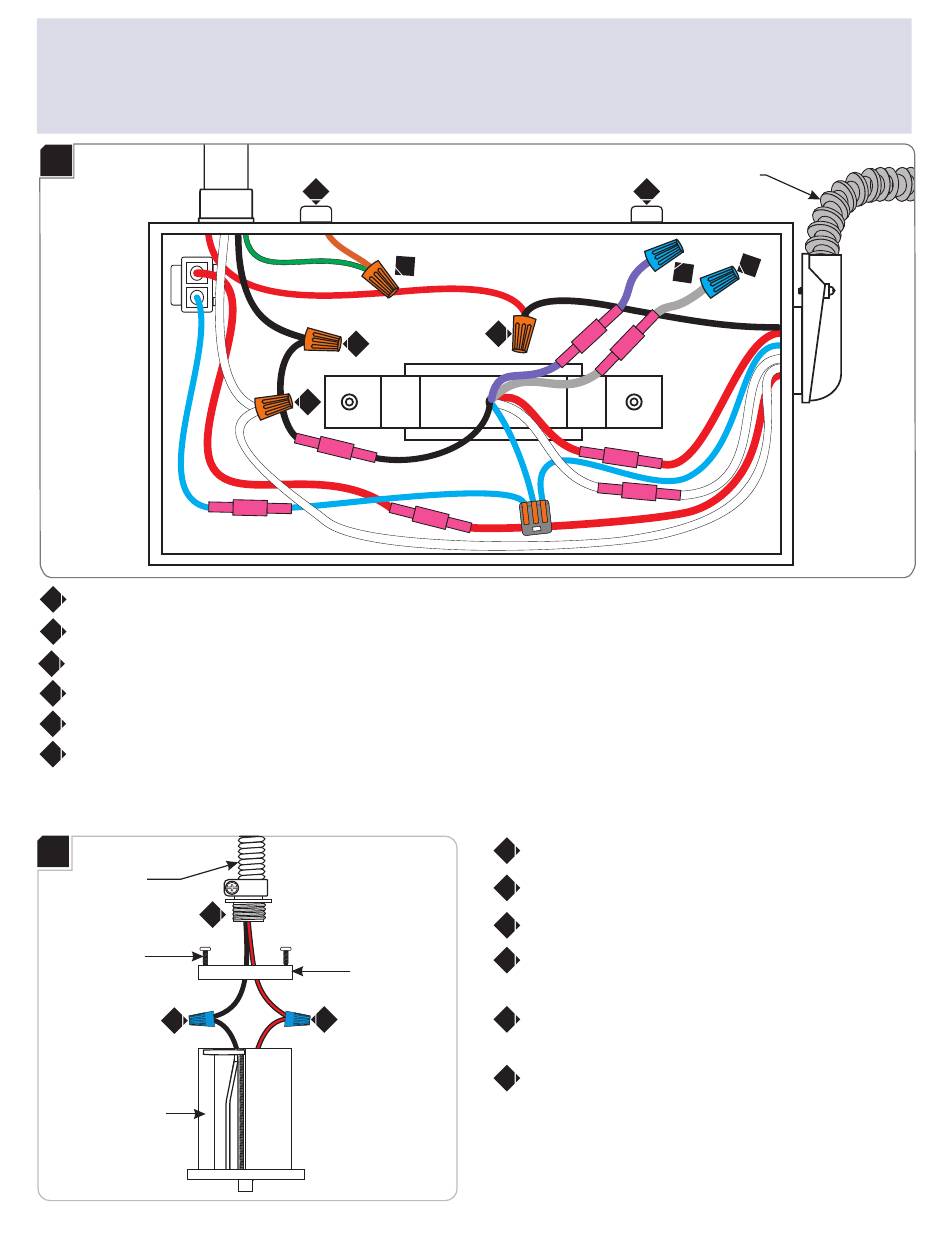

Connect the neutral power line wire to the white wire from the fixture conduit with a wire nut.
4
Connect the constant hot power line wire to the black wire from the fixture conduit with a wire nut.
5
Connect the switch hot power line wire to the black transformer wire with a wire nut.
6
Make sure that housing is grounded in accordance with local electrical codes.
7
8 For models with a 0-10V dimming driver, use the purple and gray wires to connect to a compatible dimmer.
9
Replace the electrical box cover. Make sure that the top edge of the cover snaps under both tabs.
Prepare the Test Switch Port
4A
FLEXIBLE
CONDUIT
3
#6-32 SCREW
2
TEST SWITCH PORT
9
7
6
4
BACK RING
2
3 3
9
5
Unscrew the #6-32 screws to open the test switch port.
1
Disconnect the wires.
2
Unscrew the back ring from the flexible conduit.
3
4 Replace the back ring onto the port so the end of the
wing screws are properly placed in the two blind holes.
Replace and tighten the #6-32 screws to secure the
5
back ring onto the test switch port.
Keep the test switch port assembly in a safe place while
6
the drywall is being installed.
FIXTURE
CONDUIT
8
8
