Spectrum Digital, Inc

2.3.5 P6, Power Connector

TM
Power (5 volts) is brought onto the eZdsp F2804x via the P6 connector. The
connector has an outside diameter of 5.5 mm. and an inside diameter of 2.5 mm. The

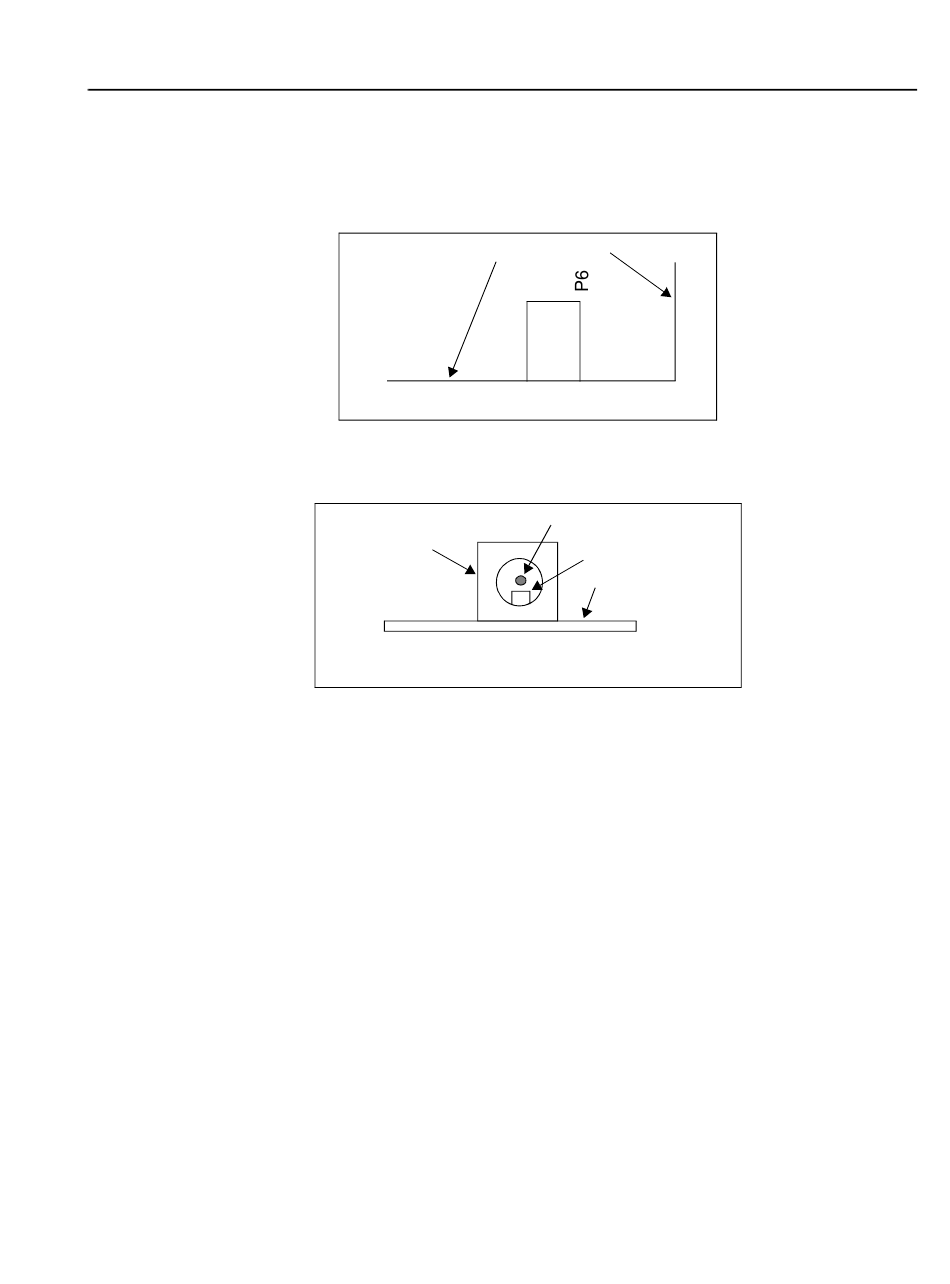

position of the P6 connector is shown below.
PC Card Edge

Figure 2-7, Connector P6 Location

The diagram of P6, which has the input power is shown below.
+5V
P6
Ground
PC Board
Front View
TM
Figure 2-8, eZdsp F2804x Power Connector
2-11
