Transmitter View - Intelix NT-HD70-TXWP Quick Install Manual

INT-HD70-TXWP Quick Guide
1
2
4
1. POWER LED - Illuminates RED when power is applied
2. LINK LED - Illuminates GREEN when the transmitter is connected to receiver successfully
3. IR - Built in IR sensor / receiver for IR pass through control
4. HDMI IN - HDMI input port for connection to HDMI video source
5. RS232 - 3 pin terminal block for RS232 pass through control
6. IR IN - 2 pin terminal block for IR receiver
7. HDBT OUT / POH IN - HDBaseT output; RJ45 connection. Supports 48V PoH
8. DC IN - 2 pin terminal to connect 12V DC power adapter.
9. DC OUT - 2-pin terminal block to connect / power 3rd party device
4

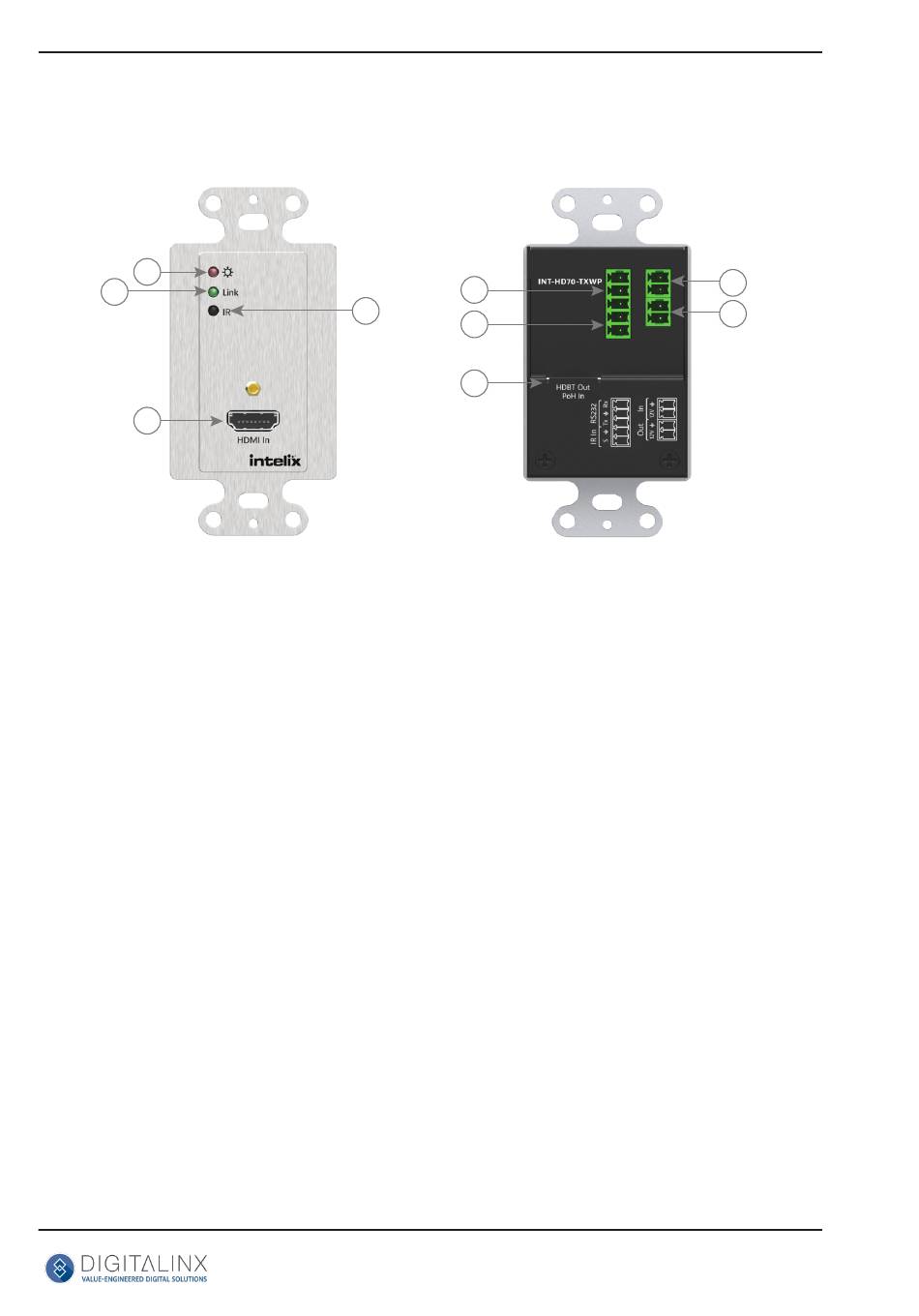

Transmitter View

3
FRONT
5
6
7
BACK
8
9
