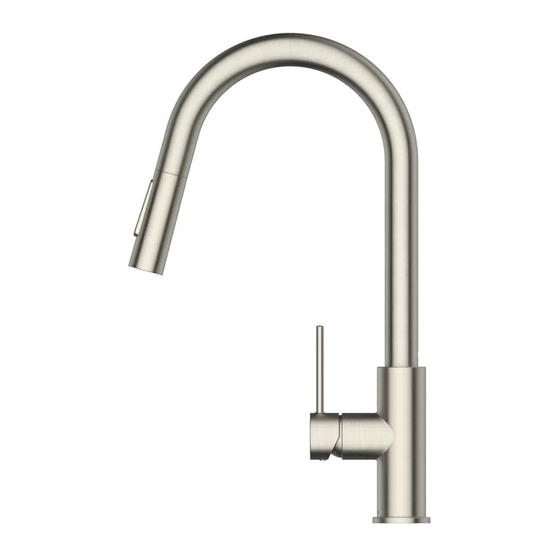

METHVEN MINIMALIST MK2 Installation Manual

Pull down sink mixer

Download this manual

Care and Cleaning:

Never use abrasives or abrasive cleaning agents to clean this product. Clean regularly with

contamination free warm soapy water and a damp soft cloth.

Methven warrants this product against manufacturing defects and that it is suitable for use

under the general operating conditions speciﬁed in this instruction sheet. However, regional

regulations apply and may aﬀect your warranty. Please refer to www.methven.com or call

customer service for full details.

New Zealand

Australia

MINIMALIST MK

PULL DOWN SINK MIXER

Installation Guide

Technical Speciﬁcations:

Operating Pressure:

Min: 150kPa/1.5bar

Max: 1000kPa/10bar*

Optimum: 150kPa/1.5bar - 500kPa/5bar

Operating Temperature:

Hot: Max 80°C*

Cold: Min 5°C

Inlet Connections:

All ½" BSP

* Regional speciﬁc regulations apply.

Please refer to your warranty statement at

www.methven.com

ISSUE A

www.methven.com

Need help?

Do you have a question about the MINIMALIST MK2 and is the answer not in the manual?

Page 1 Never use abrasives or abrasive cleaning agents to clean this product. Clean regularly with contamination free warm soapy water and a damp soft cloth. Methven warrants this product against manufacturing defects and that it is suitable for use under the general operating conditions speciﬁed in this instruction sheet. However, regional regulations apply and may aﬀect your warranty.
Page 2 Cut a 35mm diameter hole through the bench top. General: Maximum bench thickness is 42mm. • Methven recommends this product is From the ﬁxing pack, ﬁt the O-ring into the base of Mixer installed by a licensed plumber in the base ring and ﬁt assembly to the threaded tube...
