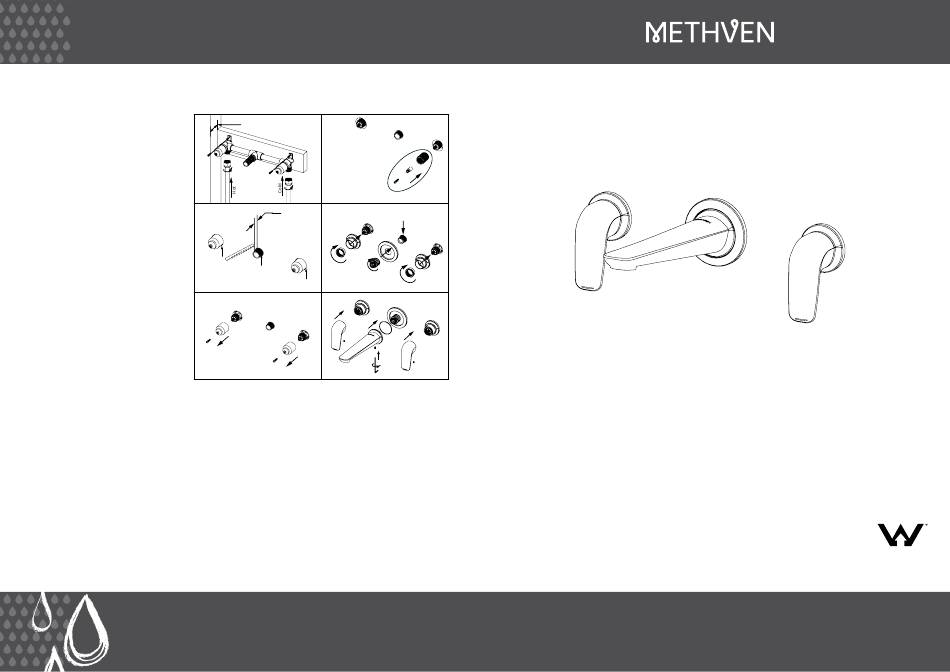

METHVEN Aroha 01-9342 Installation Manual

Installation

1. Screw the breech set (1) into the
1.
mounting stud. Refer to
ID
illustration 1. for minimum and
maximum tolerances. Plumb the
breech set (1) into system.
2. A hole diameter of 35mm will
be required for correct head
works (2) installation and a
hole diameter of 25mm will be
required for correct spout (10) 2.
installation.
3. Screw head works (2) into
breech (1).
4. Trim brass nipple (3) to length
Ø 35mm
with a max 15mm protruding
from wall lining.
5. Insert O-ring into the groove in
3.
the bottom of the base ring (8)
and place over spindle/head
works (2).
6. Screw locking nut (7) over
spindle/ head works (2).
7. Place handle (9) onto spindle/
head works (2) and fasten with
Do not discard screws
a 2.5mm hex key (11).
8. Fit inlet connector (6) to brass Note: It is the responsibility of the installer to ensure a water proof
nipple (3) and place spout (10)
seal is achieved between the faceplate and the finished surface of the
over inlet connector (6).
wall. If in any doubt about the quality of the seal, the faceplate should
be removed and then reinstalled using silicone to ensure a seal is
9. Tighten with a 2.5mm hex key
(11). achieved.
JUNE 2012
Methven Australia Pty Ltd
ABN 15 104 813 390
Melbourne, Australia
www.methven.com
Distance from mounting stud to
4.
front of wall lining (ID):
For deeper
Std - 58-63mm
installations, remove
Ext - 63-75mm
short threaded head
works collars and
replace with optional
04-9646 Spindle
Extension Kit.
(Available separately)
5. Apply appropriate
Trim to 15mm
thread sealant material
Ø 25mm
Ø 35mm
6.
2.5mm Allen key
MA019342
Aroha 3 Hole Wall Mounted
Bath Set
Installation Guide
IMPORTANT
Please read all of the instructions before installation
Use of this product is recommended for domestic and commercial applications.
All pipework must be thoroughly flushed prior to the installation of the mixer.
Inline filter washers must be installed on both hot and cold supplies to prevent foreign particles
damaging the ceramic head works.
Do not remove the ceramic head works from the mixer when installing.
Methven recommends a licensed plumber carry out all installations in compliance with
the requirements of AS/NZS 3500. This product complies with AS/NZS 3718 regulations.
www.methven.com
Customer Care Hotline: 1300 METHVEN (638 483)
Email: info@au.methven.com
01-9342
WMKA21005
