Crestron HDI-TX-301-C-2G-E Do Manual

DO

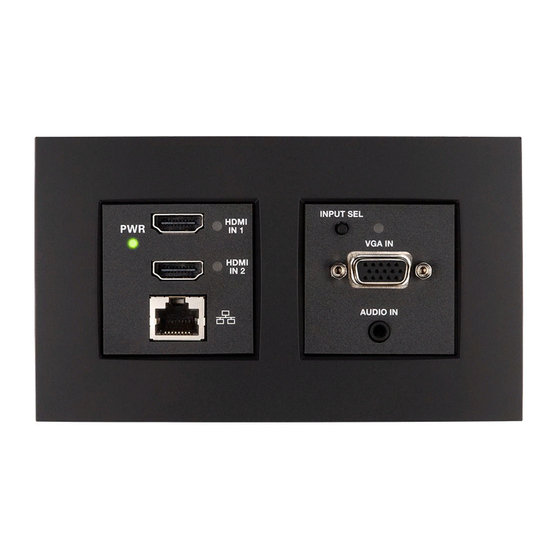

HDI-TX-301-C-2G-E
DM Lite Multiformat Switch and Transmitter, International

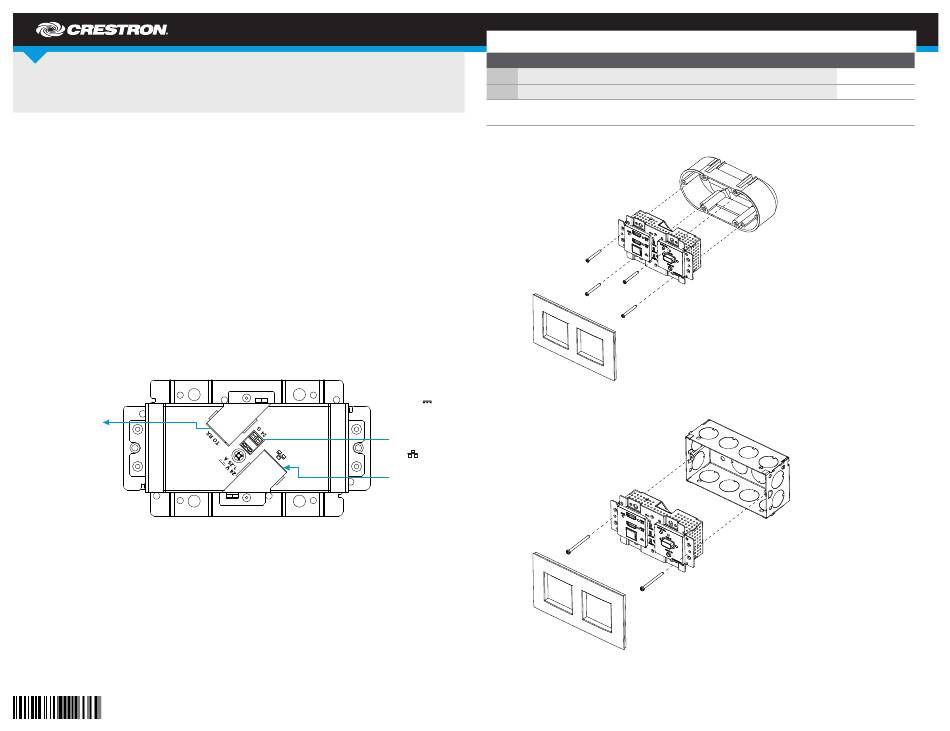

DO Install the Device
Install the device in a 2-gang European or UK electrical box (not included). A minimum mounting
depth of 45 mm is required.
To install the device:
1. On the rear of the device, make connections to the TO RX and Ethernet ports.
NOTES:
• For the 24 Vdc power connection, connect a power pack to either the transmitter or
a compatible receiver. Do not connect a power pack to both devices simultaneously.
Power is transmitted over the cable that connects the TO RX port on the transmitter to
the FROM RX port on the receiver.
A power pack is not included with the transmitter. When the transmitter is used with a
DM Lite surface-mount receiver, the transmitter receives power from the power pack
that ships with and connects to the receiver.
• Cabling that connects the TO RX port to the FROM TX port is designed for
intrabuilding use only.
Rear View
TO RX:
To FROM TX
link input of
receiver
2. Using a Phillips screwdriver, do either of the following:
• Attach the transmitter to a European electrical box using the four included
M3 x 15 mm Phillips flat head screws.
• Attach the transmitter to a UK electrical box using the two included M3.5 x 30 mm
Phillips flat head screws.
3. Position a Crestron decorator-style faceplate (sold separately) over the front panel of the
transmitter, and then gently press down on the faceplate until it snaps into place.
GUIDE
DO Check the Box
QTY
4 Screw, M3 x 15 mm, Flat Head, Phillips*
2 Screw, M3.5 x 30 mm, Flat Head, Phillips
*For installation into a European electrical box
† For installation into a UK electrical box
Installation into a European Electrical Box
24 V Installation into a UK Electrical Box
1.25 A:
From power pack
(not included)
:
Passive
pass-through
to front panel
Ethernet port
ITEM
†
PART NUM.
2052287
2052288
