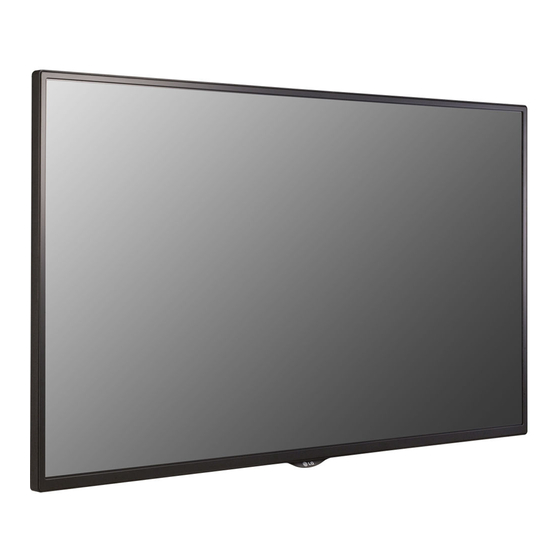

LG 32SE3D Owner's Manual

Digital signage (monitor signage)
Hide thumbs

Advertisement

Quick Links

Table of Contents
OWNER'S MANUAL
LG Digital
Signage
(MONITOR SIGNAGE)
Please read this manual carefully before operating your set and retain it
for future reference.
32SE3D
32SE3KD
43SE3D
43SE3KD
49SE3D
49SE3KD
55SE3D
55SE3KD
65SE3D
65SE3KD
43SH7DD
49SH7DD
55SH7DD
Copyright © 2018 LG Electronics Inc. All Rights Reserved.
www.lg.com

Advertisement

Table of Contents
loading

  Also See for LG 32SE3D

  Related Manuals for LG 32SE3D

  Summary of Contents for LG 32SE3D

  • Page 1 (MONITOR SIGNAGE) Please read this manual carefully before operating your set and retain it for future reference. 32SE3D 32SE3KD 43SH7DD 43SE3D 43SE3KD 49SH7DD 49SE3D 49SE3KD 55SH7DD 55SE3D 55SE3KD 65SE3D 65SE3KD www.lg.com Copyright © 2018 LG Electronics Inc. All Rights Reserved.
  • Page 2: Table Of Contents

    - Connecting the Speakers ..........15 - Using the IR Receiver ...........18 - Portrait Layout ..............19 - Attaching and removing the LG Logo Bracket ............20 - Installing on a Wall ............22 REMOTE CONTROL ....24 - Displaying the Device Name Connected to an Input Port ................26...
  • Page 3: Important Precautions

    WARNING -This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. IMPORTANT PRECAUTIONS Please read these safety precautions carefully before using the product. WARNING Failure to follow those warnings may result in death, serious injury or damage to the product or other property. CAUTION If you ignore the caution message, you may be slightly injured or the product may be damaged.
  • Page 4 • If you don’t intend to use the product for a long time, unplug the power cable from the product. - Layers of dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire. • Insert the power plug firm so it cannot come loose.
  • Page 5: Precautions For Installing The Product

    Do not add accessories that have not been designed for this display. • If you smell smoke or other odors or hear a strange sound from the product unplug the power cord and contact LG Customer Service. - If you continue to use without taking proper measures, electrical shock or fire can occur.
  • Page 6: Precautions For Moving The Product

    Precautions for Moving the Product WARNING • Make sure to turn off the product. - You may be electrocuted or the product can be damaged. • Make sure to remove all cables before moving the product. - You may be electrocuted or the product can be damaged. •...
  • Page 7: Precautions For Using/Cleaning The Product

    Do not attempt to disassemble, repair or modify the product yourself. - Fire or electric shock can occur. - Contact LG Customer Service for repair. • When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching. Do not clean with a wet cloth or spray water or other liquids directly onto the product.
  • Page 8: Licenses

    LICENSES Supported licenses may differ by model. For more information of the licenses, visit www.lg.com. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
  • Page 9: Assembly And Preparation

    SuperSign Software & Manual - Downloading from the LG Electronics website. - Visit the LG Electronics website (http://partner.lge.com) and download the latest software for your model. • The warranty will not cover any damage caused by using the product in an excessively dusty environment.
  • Page 10: Optional Accessories

    Optional Accessories Without prior notice, optional accessories are subject to change to improve the performance of the product, and new accessories may be added. The illustrations in this manual may differ from the actual product and accessories. Stand kit Screws Diameter 4.0 mm x Pitch 0.7 mm Stand Spacers (Diameter 0.1 inches x Pitch 0.02 inches)
  • Page 11 Media Player kit (It may not be supported depending on the model.) Screws Diameter 3.0 mm x Pitch 0.5 mm Media Player x Length 6mm CD (Owner’s Manual)/ Cards MP500/ MP700 (Diameter 0.1 inches x Pitch 0.01 inches x Length 0.2 inches) Wi-Fi Dongle kit AN-WF500 NOTE...
  • Page 12: Parts And Buttons

    Parts and Buttons The image may be different according to the model. Buttons • : Changes the input source. • : Accesses the main menus, or saves your input and exits the menus. • : Adjust the up and down. •...
  • Page 13: Connecting The Stand

    Connecting the Stand - For certain models only. - The image may be different according to the model. 32SE3*...
  • Page 14 43/49/55/65SE3*, 43/49/55SH7DD...
  • Page 15: Connecting The Speakers

    - For certain models only. - The image may be different according to the model. 32SE3D Connect an input signal cable before installing the speakers. Mount the speakers by using screws as shown below. Make sure the power cable is disconnected before making a connection.
  • Page 16 Then connect the speaker cable. After installing your speakers, use holders and cable ties to organize the speaker cables. Basic installation...
  • Page 17 43/49/55/65SE3D Connect an input signal cable before installing the speakers. Mount the speakers by using screws as shown below. Make sure the power cable is disconnected before making a connection. Then connect the speaker cable. After installing your speakers, use holders and cable ties to organize the speaker cables.
  • Page 18: Using The Ir Receiver

    Using the IR Receiver - The image may be different according to the model. This allows a remote control sensor to be placed in a custom location. Then that display can control other displays via an RS-232C cable. Install the IR receiver towards the front of the set. IR Receiver cable NOTE •...
  • Page 19: Portrait Layout

    Portrait Layout When installing in a portrait layout, rotate the monitor counterclockwise 90 degrees (when facing the screen). Using Kensington Lock (This is not available for all models.) The Kensington security system connector is located at the back of the monitor. For more information on installation and use of this system, refer to the manual provided with the Kensington security system or visit http://www.kensington.com.
  • Page 20: Attaching And Removing The Lg Logo Bracket

    LG Logo Bracket to the bottom rear of the monitor. LG Logo Bracket After removing the screw, remove the LG Logo Bracket. When re-attaching the LG Logo Bracket, repeat the process in reverse order.
  • Page 21 LG Logo Bracket to the bottom rear of the monitor. After removing the screw, remove the LG Logo Bracket. Attach the LG Logo Bracket with a screw, aligning it with the hole on the right side.
  • Page 22: Installing On A Wall

    Screws which are longer than standard length may damage the inside of the monitor. A non-VESA standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable for any accidents related to the use of non-standard screws.
  • Page 23 Disconnect the power cord before moving or installing the monitor to avoid risk of electric shock. • If you install the monitor on a ceiling or slanted wall, it may fall and result in injury. Use an authorized LG wall mount and contact your local dealer or qualified personnel to assist with the installation.
  • Page 24: Remote Control

    REMOTE CONTROL The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully to use the monitor correctly. To install batteries, open the battery cover, place batteries (1.5 V AAA) matching terminals to the labels inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse.
  • Page 25 Selects the Picture Mode. Views the information of the currently program and the screen. Enters the White Balance menu. Accesses the main menus or saves your input and exit menus. SuperSign menu key. Navigation Buttons Scrolls through menus or options. Selects menus or options and confirms your input.
  • Page 26: Displaying The Device Name Connected To An Input Port

    Displaying the Device Name Connected to an Input Port Display which devices are connected to which external input ports. Access the Input list screen and press the red (input label) button on the remote control. You can assign an input label for every input except USB. NOTE •...
  • Page 27: Making Connections

    MAKING CONNECTIONS You can connect various external devices to your monitor. Change the input mode and select the external device you want to connect. For more information about external device connections, see the user manual provided with each device. Connecting to a PC Some of the cables are not provided.
  • Page 28 NOTE • For the best image quality, using the monitor with HDMI connection is recommended. • To comply with the specifications of the product, use a shielded interface cable with ferrite core, such as a D-sub 15-pin cable and DVI-D/HDMI cable. •...
  • Page 29: Troubleshooting

    TROUBLESHOOTING No image is displayed. Problem Action Is the product power cord connected? • Check if the power cord is correctly plugged into the power outlet. Does the “Invalid Format” message • The signal from the PC (Graphics card) is out of the vertical or appear? horizontal frequency range of the product.
  • Page 30 After-image appears on the product. Problem Action After-image appears when the product is • If you use a fixed image for a long time, the pixels may be damaged. turned off. Use the screen-saver function. • When a dark image is displayed on the screen after an image with high contrast (black and white or gray), this may cause image sticking.
  • Page 31 CAUTION • Image sticking does not occur when using constantly changing images but may occur when using a fixed image for an extended period of time. Therefore, it is recommended that you use the instructions below to decrease the likelihood of image sticking occurring when using a fixed image.
  • Page 32: Product Specifications

    PRODUCT SPECIFICATIONS The product specifications below may be changed without prior notice due to upgrade of product functions. “ ” refers to alternating current (AC), and “ ” refers to direct current (DC). LCD screen Screen type Thin Film Transistor (TFT) Liquid Crystal Display (LCD) Screen Video signal Maximum resolution...
  • Page 33 32SE3D 0.36375 mm (H) x 0.36375 mm (V) LCD screen Pixel pitch AC 100-240 V ~ 50/60 Hz 0.8 A Power Rated power On Mode: 45 W (Typ.) Power consumption Sleep Mode: ≤ 0.5 W Off Mode: ≤ 0.5 W 729.4 mm x 428.9 mm x 55.5 mm / 5.2 kg...
  • Page 34 43SE3D 0.4902 mm (H) X 0.4902 mm (V) LCD screen Pixel pitch AC 100-240 V~ 50/60 Hz 0.9 A Power Rated power On Mode: 55 W (Typ.) Power consumption Sleep Mode: ≤ 0.5 W Off Mode: ≤ 0.5 W 969.6 mm x 563.9 mm x 38.6 mm / 9.6 kg Dimensions (Width Head x Height x Depth) /...
  • Page 35 49SE3D 0.55926 mm (H) X 0.55926 mm (V) LCD screen Pixel pitch AC 100-240 V~ 50/60 Hz 1.0 A Power Rated power On Mode: 60 W (Typ.) Power consumption Sleep Mode: ≤ 0.5 W Off Mode: ≤ 0.5 W 1102.2 mm x 638.5 mm x 38.6 mm / 13.9 kg Dimensions (Width Head x Height x Depth) /...
  • Page 36 55SE3D 0.630 mm (H) x 0.630 mm (V) LCD screen Pixel pitch AC 100-240 V~ 50/60 Hz 1.1 A Power Rated power On Mode: 65 W (Typ.) Power consumption Sleep Mode: ≤ 0.5 W Off Mode: ≤ 0.5 W 1238 mm x 714.9 mm x 38.6 mm / 17.1 kg Dimensions (Width Head x Height x Depth) /...
  • Page 37 65SE3D 0.744 mm (H) x 0.744 mm (V) LCD screen Pixel pitch AC 100-240 V~ 50/60 Hz 1.4 A Power Rated power On Mode: 90 W (Typ.) Power consumption Sleep Mode: ≤ 0.5 W Off Mode: ≤ 0.5 W 1456.9 mm x 838 mm x 41.1 mm / 27.7 kg Dimensions (Width Head x Height x Depth) /...
  • Page 38 RGB (PC) Support Mode Resolution Horizontal frequency (kHz) Vertical frequency (Hz) 720 x 400 31.468 70.8 640 x 480 31.469 59.94 800 x 600 37.879 60.317 1024 x 768 48.363 1280 x 720 44.772 59.855 1280 x 960 1152 x 864 57.717 59.934 63.981...
  • Page 39 HDMI (DTV) Support Mode Resolution Horizontal frequency (kHz) Vertical frequency (Hz) 480/60p 31.5 576/50p 31.25 720/50p 37.5 720/60p 1080/50i 28.1 33.75 1080/60i 1080/50p 56.25 1080/60p 67.5 NOTE • Resolutions available for the Input Label option in RGB, HDMI/ DVI-D input modes. - PC resolutions: 640 x 480 / 60 Hz, 1280 x 720 / 60 Hz, 1920 x 1080 / 60 Hz - DTV resolutions: 480p, 720p, 1080p •...
  • Page 40 ENERGY STAR® is a set of power-saving guidelines issued by the U.S.Environmental Protection Agency (EPA). Make sure to read the Safety Precautions before using the As an ENERGY STAR® Partner LGE U. S. A., product. Inc. has determined that this product The model and serial numbers of the SET are located on the meets the ENERGY STAR®...
  • Page 41 USER GUIDE LG Digital Signage (MONITOR SIGNAGE) Please read this manual carefully before operation and retain it for future reference. webOS 3.2 www.lg.com...
  • Page 42 CONTENTS SETTINGS ........4 - Display .................24 Picture Mode - Home ..................4 Aspect Ratio Global Buttons Rotation Dashboard Expert Controls Content Manager - Sound ...................30 - Ez Setting ................5 Sound Mode Video Wall Sound Out On/Off Scheduler Audio Out SI Server Setting Volume Increase Amount Server Setting AV Sync.
  • Page 43 In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.
  • Page 44: Settings

    NOTE • Software-related content may be changed without prior notice due to upgrades of the product functions. • Some features described in the User Manual may not be supported in certain models and countries. • SNMP 2.0 is supported. SETTINGS Home Global Buttons •...
  • Page 45: Ez Setting

    Ez Setting Video Wall Ez Setting Video Wall Set Video Wall options to create a wide visual canvas. • Tile Mode: Turn Tile Mode on or off. • Tile Mode Setting: Display a single integrated screen on multiple Signage monitors. •...
  • Page 46: Fail Over

    Fail Over Ez Setting Fail Over This feature enables automatically switching to other input sources in order of priority if the primary signal is interrupted. It also enables the automatic playback of the content stored on your device. • On/Off: Turns Fail Over on or off. Input Priority: Set the priority of input sources for fail over.
  • Page 47 NOTE • If the status regarding any of the following items changes or becomes abnormal, a status message can be sent. - 1. Temp. Sensor: If the set reaches a dangerous temperature, its current temperature is recorded, and an email containing such information is sent.
  • Page 48: Play Via Url

    Play via URL Ez Setting Play via URL Play content you want to play automatically through the built-in web browser. • URL Loader: Turns Play via URL on or off. • Set URL: Enter the URL address to display automatically. •...
  • Page 49: Multi Screen

    Multi Screen Ez Setting Multi Screen This feature allows you to view multiple external inputs and videos on a single screen. NOTE • After entering multi-screen mode, the screen may flicker and the picture may appear abnormal on certain devices while the optimal resolution is selected automatically.
  • Page 50: General

    General Language General Language You can select the menu language to be displayed on the screen. • Menu Language: Sets the language of your Signage monitor. • Keyboard Language: Sets the language of the keyboard displayed on the screen. System Information General System Information This feature displays information such as the device name, software version, and storage space.
  • Page 51: Power

    Power General Power Power-related feature settings No Signal Power Off (15 Min) Set whether to use the 15 Min Auto Off feature. • You can set this option to On or Off. • If you set this feature to On, the product turns off when it has remained in No Signal status for 15 minutes. If you set this feature to Off, the 15 Min Force Off feature is disabled.
  • Page 52 PM Mode • Power Off(Default): Sets the normal DC off mode. Sustain Aspect Ratio: Identical to normal DC off mode except that the Switching IC remains on. On some models, • this applies only to a specific input mode (DisplayPort) and has the same effect as Screen Off Always in other input modes.
  • Page 53: Network

    Power Indicator • This function enables you to change the Power Indicator settings. Setting to On will turn on Power Indicator. • Setting to Off will turn off Power Indicator. • • Regardless of On or Off settings in Power Indicator, Power Indicator will be turned on for approximately 15 seconds.
  • Page 54 3G/4G Connection Connect to a network via a 3G/4G USB dongle. LAN Daisy Chain • LAN Daisy Chain forms a daisy chain of LAN ports so that even if you connect only one monitor set to a network, the other sets in the daisy chain are connected to the network. •...
  • Page 55 For details, contact your ISP. • LG is not responsible for any malfunction of the display or Internet connection failures due to communication errors/ malfunctions associated with your Internet connection or other connected equipment.
  • Page 56 Tips for When Configuring Wireless Network Settings • The wireless network may be affected by interference from a device that uses 2.4 GHz frequency, such as a wireless telephone, Bluetooth device or microwave. Interference may also be caused by a device that uses 5 GHz frequency such as Wi-Fi devices.
  • Page 57: Safety Mode

    Safety Mode General Safety Mode Set to this function for safe performance. ISM Method If a still image is displayed on the screen for an extended period of time, image sticking can occur. The ISM method is a feature that prevents image sticking. Mode Selects the desired ISM Method mode.
  • Page 58 Duration • You can select from among 1–10 mins/20 mins/30 mins/60 mins/90 mins/120 mins/180 mins/240 mins. • This option is available only when you have set Repeat to On. • ISM operates for the specified time. Select Day • You can set the date. •...
  • Page 59 Bar Image • Off: Displays a bar with a fixed resolution of 300 x 1080, then moves the bar. • On: Displays and moves an image downloaded by the user. The image is displayed with a fixed height of 1080 and the same width as downloaded.
  • Page 60 Bar Image Download • To download an image, the image file must be located under the folder titled “ISM” on your USB drive. • Make sure to delete the old images stored in the internal memory before downloading a new image file. •...
  • Page 61: Expert Controls

    This option enables BLE Beacon, one of Bluetooth 4.0's features. • Beacon Mode (On/Off Toggle): enables the Beacon feature. • The LG Beacon/iBeacon/Eddystone Type Beacon features are supported. • LG Beacon/iBeacon - Beacon UUID (hex): Set the UUID. 1. Field1: 4byte hex value (8 digits) 2.
  • Page 62 OPS Control • OPS Power Control: This feature enables you to control the power of the OPS as you turn on/off the display. - Disable: Disable OPS Power Control. - Sync (On): Synchronize the monitor's power status only when the monitor is on. - Sync (On/Off): Synchronize the monitor's power status with the OPS.
  • Page 63 SIMPLINK Setup • When the SIMPLINK Setup is set to On, you can use the SIMPLINK provided by LG Signage. Device ID: Set the ID of the device connected via CEC wiring. You can choose a value between All and E.
  • Page 64: Display

    Display Picture Mode Display Picture Mode Mode This feature enables you to choose the optimal picture mode for your installation environment. • Mall/QSR, Transportation, Education, Gov./Corp., Game, and Photo: Display the picture optimally for your installation environment. • Normal: Display the picture at normal contrast, brightness, and sharpness. APS: Adjust the screen brightness to reduce power consumption.
  • Page 65 Customize • Backlight/OLED Light: Adjust the brightness of the screen by adjusting the brightness of the backlight. The closer the value is to 100, the brighter the screen is. • Contrast: Adjust the difference between the light and dark areas of the picture. The closer the value is to 100, the greater the difference is.
  • Page 66 • Picture Option: Customize the picture options. - Noise Reduction: Remove randomly popping dots to make the picture look clearer. - MPEG Noise Reduction: Reduce the noise generated in the process of creating a digital video signal. - Black Level: Adjust the brightness and contrast of the screen by adjusting the black level of the screen. - Real Cinema: Optimize the video image for a cinematic look.
  • Page 67: Aspect Ratio

    Aspect Ratio Display Aspect Ratio This feature enables you to change the picture size to view the picture at its optimal resolution. • Full Wide: Stretch the picture to fill the screen. • Original: Display the picture at its original resolution. Rotation Display Rotation...
  • Page 68: Expert Controls

    Expert Controls Display Advanced Setting UHD Deep Color If you connect an HDMI, DP, or OPS device to one of the Deep Color adjustable ports, you can select between UHD Deep Color On (6G) or Off (3G) in the UHD Deep Color settings menu. If a compatibility issue occurs with a graphics card when the Deep Color option is set to On at 3840 x 2160 @ 60 Hz, set the Deep Color option back to Off.
  • Page 69 Adjust (RGB-PC) This feature enables you to configure the PC display options in RGB mode. Set Automatically: Automatically adjust the screen position, time, and phase. The image displayed on the screen can • be unstable for a few seconds in the process of the configuration. •...
  • Page 70: Sound

    Sound Sound Mode Sound Sound Mode Sound Mode The best sound quality will be selected automatically depending on the video type currently being watched. • Standard: This sound mode works well for content of all types. • Cinema: Optimize sound for watching movies. •...
  • Page 71: Sound Out

    Some recently connected devices may automatically attempt to reconnect to the Signage monitor when it is turned • It is recommended that you set LG audio devices that support LG Sound Sync to LG TV mode or LG Sound Sync mode before connecting.
  • Page 72: Audio Out

    External Speaker (-5~15): Adjust the sync between video and audio coming from external speakers, such as those connected to the digital audio output port, LG audio equipment, or headphones. Moving closer to – speeds up the audio output, while moving closer to + slows down the audio output, compared to the default value.
  • Page 73: Admin

    Admin Lock Mode Admin Lock Mode Home Dashboard Lock This feature enables you to restrict changes made to dashboard lock settings on the Home screen. USB Lock This feature enables you to configure the USB lock feature so that settings or content cannot be changed. OSD Lock This feature enables you to configure the OSD lock feature so that settings or content cannot be changed.
  • Page 74: Change Pin Code

    Change PIN Code This feature enables you to set the password you use to enter the Installation menu. Enter a new 4-digit password. Enter the same password again in the Confirm Password field for confirmation. Enterprise Settings • Enter your company account code to apply the corresponding enterprise settings. •...
  • Page 75: Content Manager

    CONTENT MANAGER Web Login • Different features are supported depending on the product. This Signage product comes with a feature that enables you to access it on your PC or mobile device. - Content Manager, Group Manager 2.0, Control Manager, Log Out, Change Password menus are provided. •...
  • Page 76 Delete Select your desired type of content from the tab on the left and click Delete in the upper right-hand corner of the screen. Select the content you wish to delete. Click Delete in the upper right-hand corner of the screen. You can see that the content has been deleted.
  • Page 77: Scheduler

    Scheduler (Scheduler) The Content Manager app's scheduler feature enables certain content to be played at a scheduled time through a playlist or external input. Creating a Schedule Click New Schedule in the upper right-hand corner of the screen. Choose between Playlist and Input Source. 1) If you have selected Playlist, select the playlist you wish to schedule the playback of.
  • Page 78: Template

    Deleting a Schedule Click Delete in the upper right-hand corner of the screen. Select the schedules you wish to delete. Click Delete. Check that the schedules have been deleted. Calendar View When you have registered schedules, click Calendar View. You can see that the schedules registered are displayed in the form of a timetable. NOTE •...
  • Page 79 Supported Photo & Video Files NOTE • Subtitles are not supported. • The photo feature is not supported in OLED models. Supported video codecs Extension Codec .asf, .wmv Video VC-1 Advanced Profile (except for WMVA), VC-1 Simple and Main Profiles Audio WMA Standard (excluding WMA v1/WMA Speech) .avi...
  • Page 80 Tips for using USB storage devices • Only USB storage devices are recognized. • USB storage devices connected to the monitor through a USB hub may not work properly. • USB storage devices that use an automatic recognition program may not be recognized. •...
  • Page 81 • If your USB storage device has multiple partitions, or if you use a USB multi-card reader, you can use up to four partitions or USB memory devices. • If a USB storage device is connected to a USB multi-card reader, its volume data may not be detected. •...
  • Page 82: Group Manager 2.0

    Group Manager 2.0 This feature enables you to group together multiple monitor sets on a single network into the same group and to distribute content (schedules and playlists) or copy setting data on a group basis. This feature has two modes, Master and Slave, and it can access the browser on your PC or mobile device.
  • Page 83 Group Management • Creating a New Group 1. Click Add New Group. 2. Enter a group name. 3. Click Add Device, select the devices you wish to add to the group, and add them. 4. Click Done, and you will see that a new group has been created. •...
  • Page 84 Setting Data Cloning Select your desired group and click Clone. Check that the data have been copied on the slave sets. Content Distribution Select the type of content you wish to distribute (Schedules or Playlists). Select the content you wish to distribute. Select the group to which you wish to distribute the content and click Distribute.
  • Page 85: Screenshare

    Devices on your laptop. Click Add Device in the top center of the screen, and then you will see a list of nearby WiDi-capable LG Signage monitors. From the list of detected Signage monitors, select one you wish to connect to and click Connect.
  • Page 86: Management Tools

    MANAGEMENT TOOLS Control Manager Control and check the status of the display through the Web browser. This function is available for PCs and mobile devices. Different features are supported depending on the product. Function • Dashboard: Display a summary of the product's status and provides links to each page. Display and Sound: Provides features such as Screen Brightness, Sound, Input, and Reboot.
  • Page 87: Picture Id

    Picture ID AUDIO (RGB/DVI) RS-232C OUT RS-232C OUT RS-232C OUT Picture ID is used to change the settings of a specific set (display) using a single IR receiver for multi-vision. Communication is possible between a monitor with an IR receiver and other monitors using RS-232C cables. Each RS-232C IN RS-232C IN RS-232C IN...
  • Page 88: Touch

    TOUCH Touch Assistive Menu This touch-exclusive feature allows the user to configure settings without a remote control. Touching the screen for a certain period of time or pressing the Touch Assistive Menu local key brings up the Touch Assistive Menu on the screen. Different features are supported depending on the product.
  • Page 89: Whiteboard

    Whiteboard • This feature may not be available on some models. This feature provides writing function. To run Whiteboard, press the (Whiteboard) button or the local key Whiteboard button. Function • When running Whiteboard, a blank screen appears and you can use Touch to draw. •...
  • Page 90: Ir Code

    IR CODE • All models do not support the HDMI/USB function. • Some key codes may not be supported depending on the model. Code (Hex) Function Remarks Remote control button (Power) MONITOR ON Remote control button MONITOR OFF Remote control button (Energy Saving Mode) Remote control button INPUT (Select input)
  • Page 91 Code (Hex) Function Remarks (Settings/Menu) Remote control button Auto Configuration Remote control button (Up) Remote control button (Down) Remote control button Remote control button (Right) (Left) Remote control button Remote control button (OK) (BACK) Remote control button Tile Remote control button Exit Remote control button Picture ID On (Red)
  • Page 92: Controlling Multiple Products

    CONTROLLING MULTIPLE PRODUCTS • This only applies to certain models. Use this method to connect several products to a single PC. You can control several products at a time by connecting them to a single PC. In the Option menu, the Set ID must be between 1 and 1000 without being duplicated. Connecting cables •...
  • Page 93: Communication Parameter

    Communication Parameter NOTE • When using 3-wire connections (non-standard), an IR Baud Rate: 9600 bps daisy chain cannot be used. Data Length: 8 bits • Be sure to only use the provided gender to connect Parity Bit: None properly. Stop Bit: 1 bit •...
  • Page 94: Command Reference List

    Command Reference List Command Data (Hexadecimal) Power 00 to 01 Select input See Select Input Aspect Ratio See Aspect Ratio Brightness Control See Energy Saving Picture Mode See Picture Mode Contrast 00 to 64 Brightness 00 to 64 Sharpness 00 to 32 Color 00 to 64 Tint...
  • Page 95 Command Data (Hexadecimal) Software Version White Balance Red Gain 00 to FE White Balance Green Gain 00 to FE White Balance Blue Gain 00 to FE White Balance Red Offset 00 to 7F White Balance Green Offset 00 to 7F White Balance Blue Offset 00 to 7F Backlight...
  • Page 96 Command Data (Hexadecimal) Network Settings n, 80(81)(82) See Network Settings Auto Configuration H Position 00 to 64 V Position 00 to 64 H Size 00 to 64 Power On Status 00 to 02 Wake On LAN 00 to 01 Intelligent Auto 00 to 01 OSD Rotation 00 to 02...
  • Page 97 Command Data (Hexadecimal) On/Off Time Scheduling n, 9a See On/Off Time Scheduling Holiday Setting n, 9b See Holiday Setting UPnP Mode n, 9c 00 to 01 Home Dashboard Lock n, 9d 00 to 01 USB Lock n, 9e 00 to 01 Wi-Fi Lock n, 9f 00 to 01...
  • Page 98: Transmission/Reception Protocol

    Transmission/Reception Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] * [Command1]: Identifies between the factory setting and the user setting modes. * [Command 2]: This command is used to control the monitor. * [Set ID]: Used for selecting a set you want to control. A unique Set ID can be assigned to each set ranging from 1 to 1000 (01H to FFH) under Settings in the OSD menu.
  • Page 99 01. Power (Command: k a) 03. Aspect Ratio (Command: k c) Controls the power on/off status of the monitor. Adjusts the aspect ratio of your monitor. Transmission Transmission [k][a][ ][Set ID][ ][Data][Cr] [k][c][ ][Set ID][ ][Data][Cr] Data 00: Off Data 02: Full Wide 01: On 06: Original...
  • Page 100 06. Contrast (Command: k g) 09. Color (Command: k i) Adjusts the screen contrast. Adjusts the screen colors. Transmission Transmission [k][g][ ][Set ID][ ][Data][Cr] [k][i][ ][Set ID][ ][Data][Cr] Data 00-64: Contrast 0-100 Data 00-64: Color 0-100 Acknowledgment Acknowledgment [g][ ][Set ID][ ][OK/NG][Data][x] [i][ ][Set ID][ ][OK/NG][Data][x] 07.
  • Page 101 12. Balance (Command: k t) 15. Volume Control (Command: k f) Adjusts the sound balance. Adjusts the playback volume. Transmission Transmission [k][t][ ][Set ID][ ][Data][Cr] [k][f][ ][Set ID][ ][Data][Cr] Data 00-64: Left 50-Right 50 Data 00-64: Volume 0-100 Acknowledgment Acknowledgment [t][ ][Set ID][ ][OK/NG][Data][x] [f][ ][Set ID][ ][OK/NG][Data][x] * This feature may not be supported on some models.
  • Page 102 18. No Signal Power Off (15 Min) (Command: f g) 21. Initial Settings (Command: f k) Sets the monitor to enter Automatic Standby mode if there is Executes Reset. no signal for 15 minutes. Initialize Screen can only be executed in RGB input mode. Transmission Transmission [f][g][ ][Set ID][ ][Data][Cr]...
  • Page 103 24. Time Elapsed (Command: d l) 27. White Balance Red Gain (Command: j m) Displays the time that has elapsed after your monitor has Adjusts the red gain value for white balance. turned on. Transmission Transmission [j][m][ ][Set ID][ ][Data][Cr] [d][l][ ][Set ID][ ][Data][Cr] Data 00 to FE: Red gain 0 to 254...
  • Page 104 30. White Balance Red Offset (Command: s x) 33. Backlight (Command: m g) Adjusts the red offset value for white balance. Adjusts the backlight brightness. Transmission Transmission [s][x][ ][Set ID][ ][Data][Cr] [m][g][ ][Set ID][ ][Data][Cr] Data 00 to 7F: Red offset 0 to 127 Data 00 to 64: Backlight 0 to 100 FF: Checks red offset value...
  • Page 105 36. Check Tile Mode (Command: d z) 39. Energy Saving Settings (Command: f j) Checks the tile mode. Sets the Display Power Management feature. Transmission Transmission [d][z][ ][Set ID][ ][Data][Cr] [f][j][ ][Set ID][ ][Data][Cr] Data FF: Checks Tile Mode Data 00: Off 04: 1 minute Acknowledgment...
  • Page 106 42. Fail Over Select (Command: m i) 44. Remote Controller Key Lock (Command: t p) Sets an input mode for fail over. Configures the settings of the product's remote control key. Transmission Transmission [m][i][ ][Set ID][ ][Data][Cr] [t][p][ ][Set ID][ ][Data][Cr] Data 00: Off Data...
  • Page 107 46. Status Check (Command: s v) Data 10 (when executing Screen Fault Detection) Data 1 00: Screen Fault Detection result NG Checks the current signal of the product. 07: Screen Fault Detection result OK Transmission * When screen Fault Detection is set to Off or not supported, [s][v][ ][Set ID][ ][Data][ ][FF][Cr] execution results are rendered "NG."...
  • Page 108 48. Daylight Saving Time (Command: s d) 50. ISM Method (Command: j p) Sets Daylight Savings Time. Selects an ISM method. Transmission Transmission [s][d][ ][Set ID][ ][Data1][ ][Data2][ ] [j][p][ ][Set ID][ ][Data][Cr] [Data3][ ] [Data4][ ][Data5][ ][Cr] Data 01: Inversion (Invert) Data 1 00: Off (Data 2-5: FF) 02: Orbiter (Move) 01: Start time...
  • Page 109 51. Network Settings (Command: s n, 80 or 81 or 52. Auto Configuration (Command: j u) Automatically corrects the position and shaking of the picture. Configures network and DNS settings. (Works only in RGB-PC input mode.) Transmission Transmission [s][n][ ][Set ID][ ][Data1][ ][Data2][ ] [j][u][ ][Set ID][ ][Data][Cr] [Data3][ ][Data4][ ][Data5][Cr] Data...
  • Page 110 55. H Size (Command: f s) 58. Intelligent Auto (Command: t i) Adjusts the horizontal size of the screen. Selects an Intelligent Auto option. * The operational range varies depending on the RGB input Transmission resolution. [t][i][ ][Set ID][ ][Data][Cr] (Works only in RGB-PC input mode.) Data 00: Off...
  • Page 111 61. Content Sync (Command: t g) 64. Scan Inversion (Command: s n, 87) Sets Content Sync. Turns on/off Scan Inversion. Transmission Transmission [t][g][ ][Set ID][ ][Data][Cr] [s][n][ ][Set ID][ ][8][7][ ][Data][Cr] Data 00: Off Data 00: Off 01: On 01: On Acknowledgment Acknowledgment [g][ ][Set ID][ ][OK/NG][Data][x]...
  • Page 112 67. Brightness Scheduling (Command: s s) 68. Multi Screen Mode & Input (Command: x c) Sets Brightness Scheduling. Saves and controls Multi Screen modes and inputs. Transmission Transmission [s][s][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr] [x][c][ ][Set ID][ ][Data1][ ][Data2][ ][Data3[ ][Data4] [ ][Data5][ ][Cr] Data 1 1.
  • Page 113 70. Screen Off (Multi Screen) (Command: x e) 73. Wireless Wake On LAN (Command: s n, 90) Turns on/off each screen in the Multi Screen. Sets the Wireless Wake-on-LAN feature. Transmission Transmission [x][e][ ][Set ID][ ][Data1][ ][Data2][Cr] [s][n][ ][Set ID][ ][9][0][ ][Data][Cr] Data 1 Controls the Main input Data 00: Off...
  • Page 114: On/Off Time Scheduling N, 9A

    76. On/Off Time Scheduling (Command: s n, 9a) 77. Holiday Setting (Command: s n, 9b) Sets on/off time schedules. Sets holidays. Transmission Transmission 1. [s][n][ ][Set ID][ ][9][a][ ] 1. [s][n][ ][Set ID][ ][9][b][ ] [Data1][ ][Data2][ ][Data3][ ][Data4][ ][Data5][Cr] [Data1][ ][Data2][ ][Data3][ ] 2.
  • Page 115: Upnp Mode S N, 9C

    79. Home Dashboard Lock (Command: s n, 9d) 2. Checking a Schedule Data 1 Select the desired schedule. Sets Home Dashboard Lock. F1: Reads the 1st schedule Transmission F2: Reads the 2nd schedule [s][n][ ][Set ID][ ][9][d][ ][Data][Cr] F3: Reads the 3rd schedule Data 00: Off F4: Reads the 4th schedule...
  • Page 116: Screen Share Lock S N, A0

    82. Screen Share Lock (Command: s n, a0) 84. Digital Audio Input (Command: s n, a2) Sets Screen Share Lock. Sets Digital Audio Input. Transmission Transmission [s][n][ ][Set ID][ ][a][0][ ][Data][Cr] [s][n][ ][Set ID][ ][a][2][ ][Data][Cr] Data 00: Off Data 00: Digital 01: On 01: Analog...
  • Page 117: Natural Size S N, A5

    87. Natural Size (Command: s n, a5) 90. Play Internal Storage Media (Command: s n, a8) Sets Natural Size. Plays the media stored on the monitor's internal storage. Internal storage media: videos and images stored on the Transmission monitor's internal storage after being exported via Contents [s][n][ ][Set ID][ ][a][5][ ][Data][Cr] Management Player.
  • Page 118 93. DPM Wake Up Control (Command: s n, 0b) Selects a DPM Wake Up option. Transmission [s][n][ ][Set ID][ ][0][b][ ][Data][Cr] Data 00: Clock 01: Clock+DATA Acknowledgment [n][ ][Set ID][ ][OK/NG][0][b][Data][x] * This feature may not be supported in some models. 94.
