Hunter Douglas RB 500 Pocket Installation Manual

Pocket Installation - 5.25" Single and 9" Single and Dual Shades

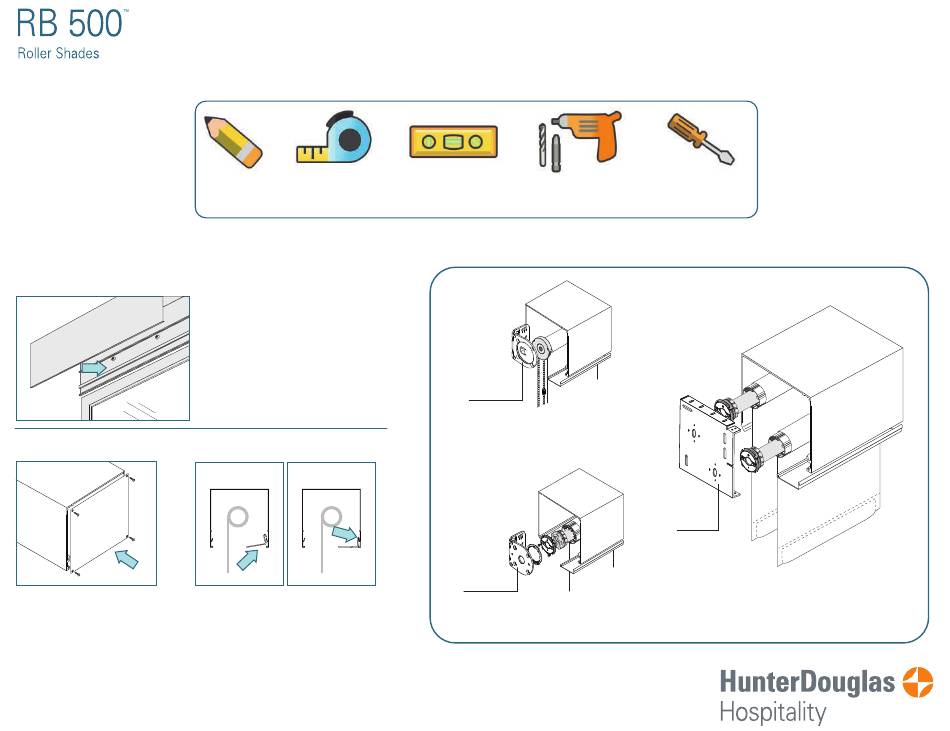

INSTALLING A POCKET

SURFACE/WALL MOUNT

END PLATES

Use a screwdriver to attach
the end plates with the
screws provided.
Las Vegas • Chicago
800.229.5300
HDhospitality.com
© 2018 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas or their respective owners.

TOOLS NEEDED

Measuring
Pencil
Tape
Mount into wood or metal studs
or into concrete with concrete
anchors. Drywall anchors are not
recommended.
Determine the mounting location.
Pre-drill the pocket. Mount in
place.

BOTTOM CLOSURES

Side View
Tilt the bottom closure inside the
front edge of the pocket until the
closure catches on the inside ledge.
Level
Drill with
bits
Manual
Single
Shade
Manual
Bracket
55L or 75L
Surface Mounted
Use bracket and shade instructions for
Standard+ & Heavy Duty+ Manual
Motorized
Single
Shade
Motor
Bracket
55L or 75L
Surface Mounted
Use bracket and shade instructions for
RB 500 Heavy Duty Bracket Motorized
Screwdriver
Dual Shade
9" Pocket Only
7" Dual
Motor
Bracket
Surface Mounted
Use bracket and shade instructions for
Heavy Duty+ 7" Dual Bracket Motorized or Manual
1 of 4
