BENDIX/KING

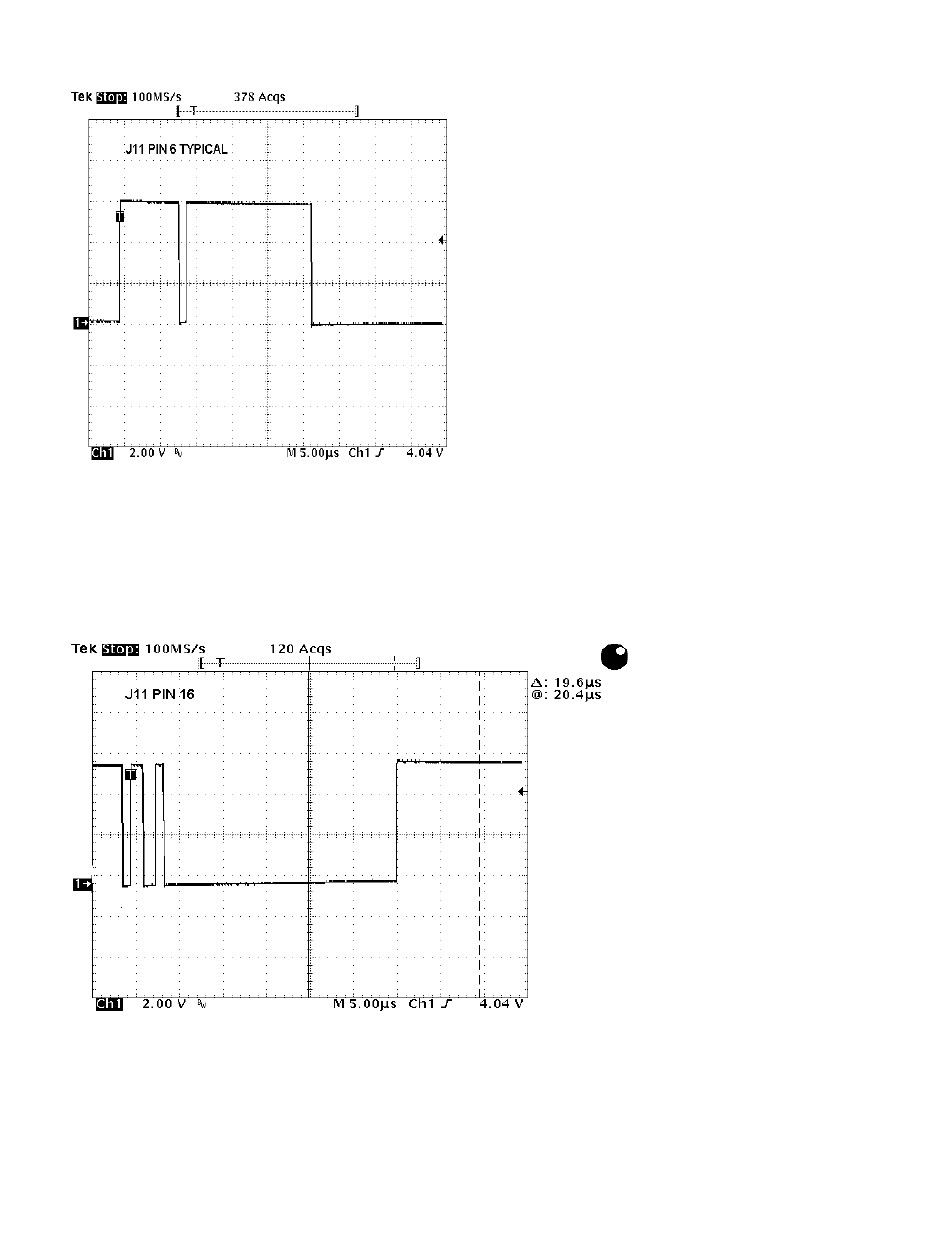

FIGURE 5-58 MAIN BOARD WAVEFORM AT J11 PIN 6
FIGURE 5-59 MAIN BOARD WAVEFORM AT J11 PIN 16
Page 5-78
(DWG NO. 002-09059-0040, REV G, SHEET 4)
(DWG NO. 002-09059-0040, REV G, SHEET 4)
15610M00.RCD
DISPLAY READ
RX, NORMAL OPERATION
OFFSET 0.0 Vdc
SERIAL DATA
RX, NORMAL OPERATION
OFFSET 0.0 Vdc
KX 165A
Rev 0, Jun/2000
