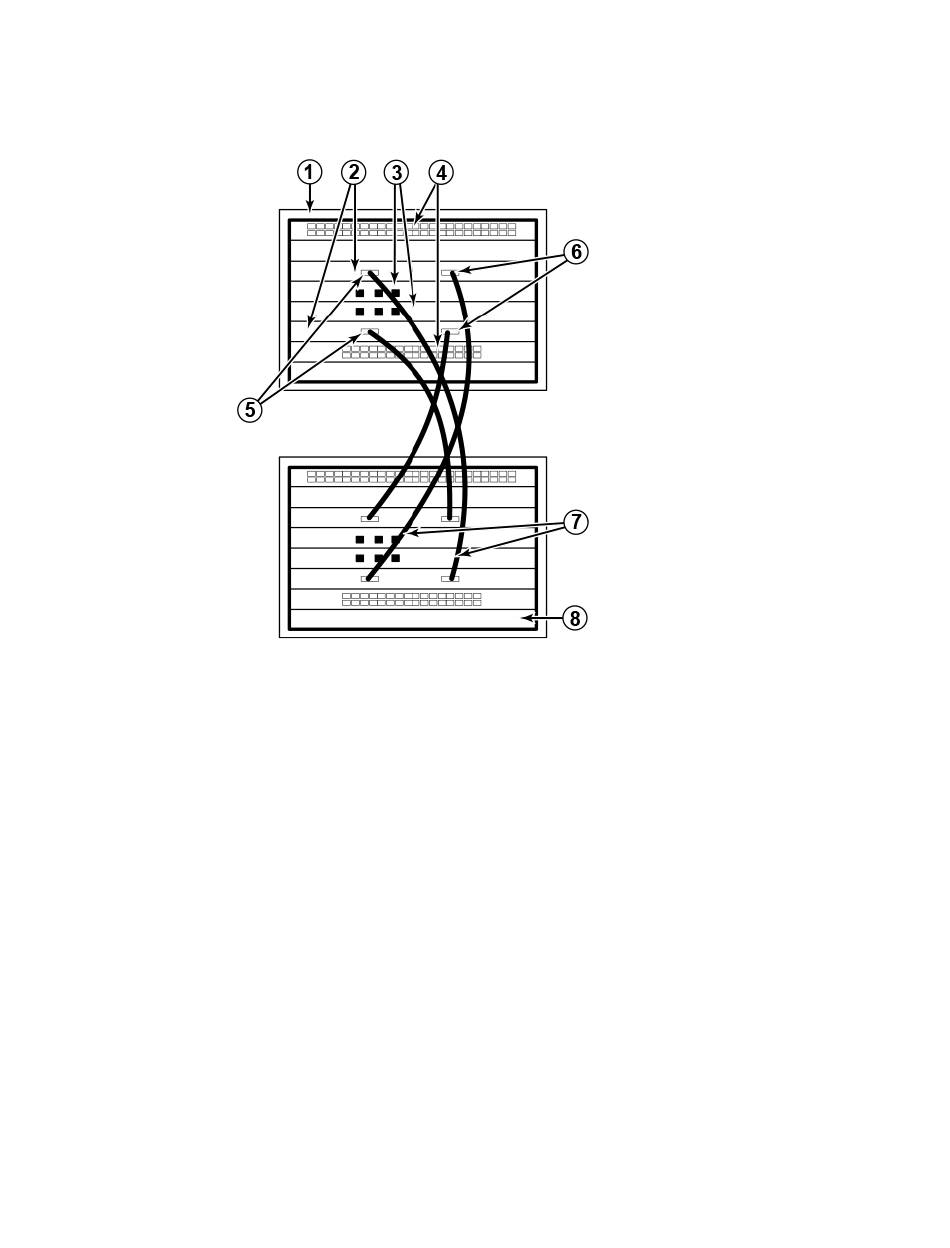

FIGURE 32 ICL cable connections - between two DCX-4S chassis
1. Chassis 1
2. Core switch blades (CR4S-8)
3. Control processor blades (CP8)
4. Port blades
5. ICL connector (ICL 1)
6. ICL connector (ICL 0)
7. ICL cables
8. Chassis 2
Brocade DCX-4S Backbone Hardware Installation Guide
53-1001191-15
Removal and Replacement Procedures
91
