Port Numbering Template

Print or copy the following templates in this appendix and use them to document the port numbering
pattern for the Brocade DCX-4S. These templates show the following components:
• FC8-16 port blade
• FC8-32 port blade
• FC8-48 port blade
• FC8-64 high density port blade
• FS8-18 encryption blades
• FX8-24 extension blade
• FCOE10-24 FCoE blade
The individual blades are shown vertically to make it easier to read the port numbering. Their orientation
in the DCX-4S chassis is horizontal.

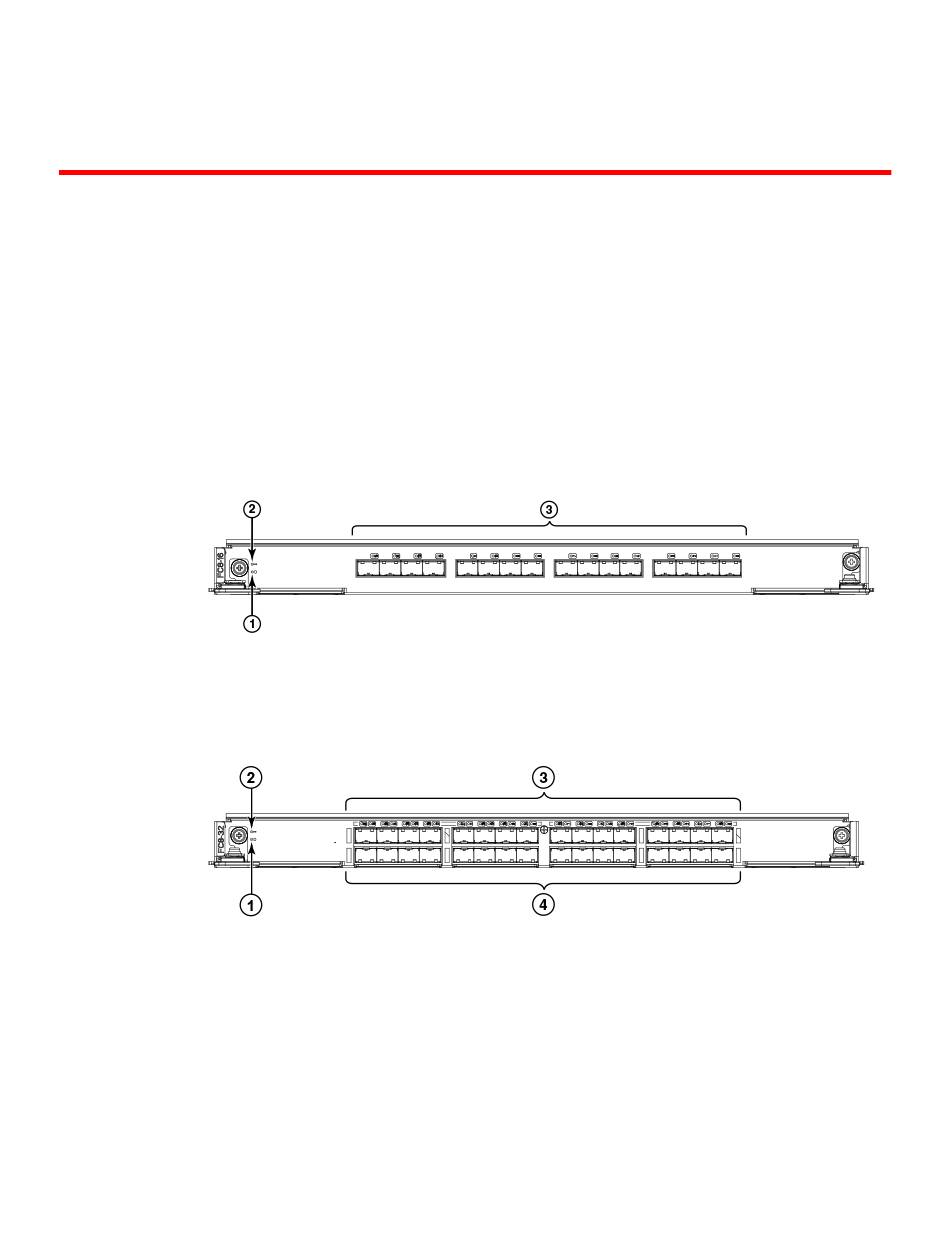

FIGURE 37 FC8-16 port blade
1. Blade Power LED
2. Blade Status LED
3. FC ports 0-15 (right to left)
FIGURE 38 FC8-32 port blade
1. Blade Power LED
2. Blade Status LED
3. FC ports 0-15 (right to left)
4. FC ports 16-31 (right to left)
