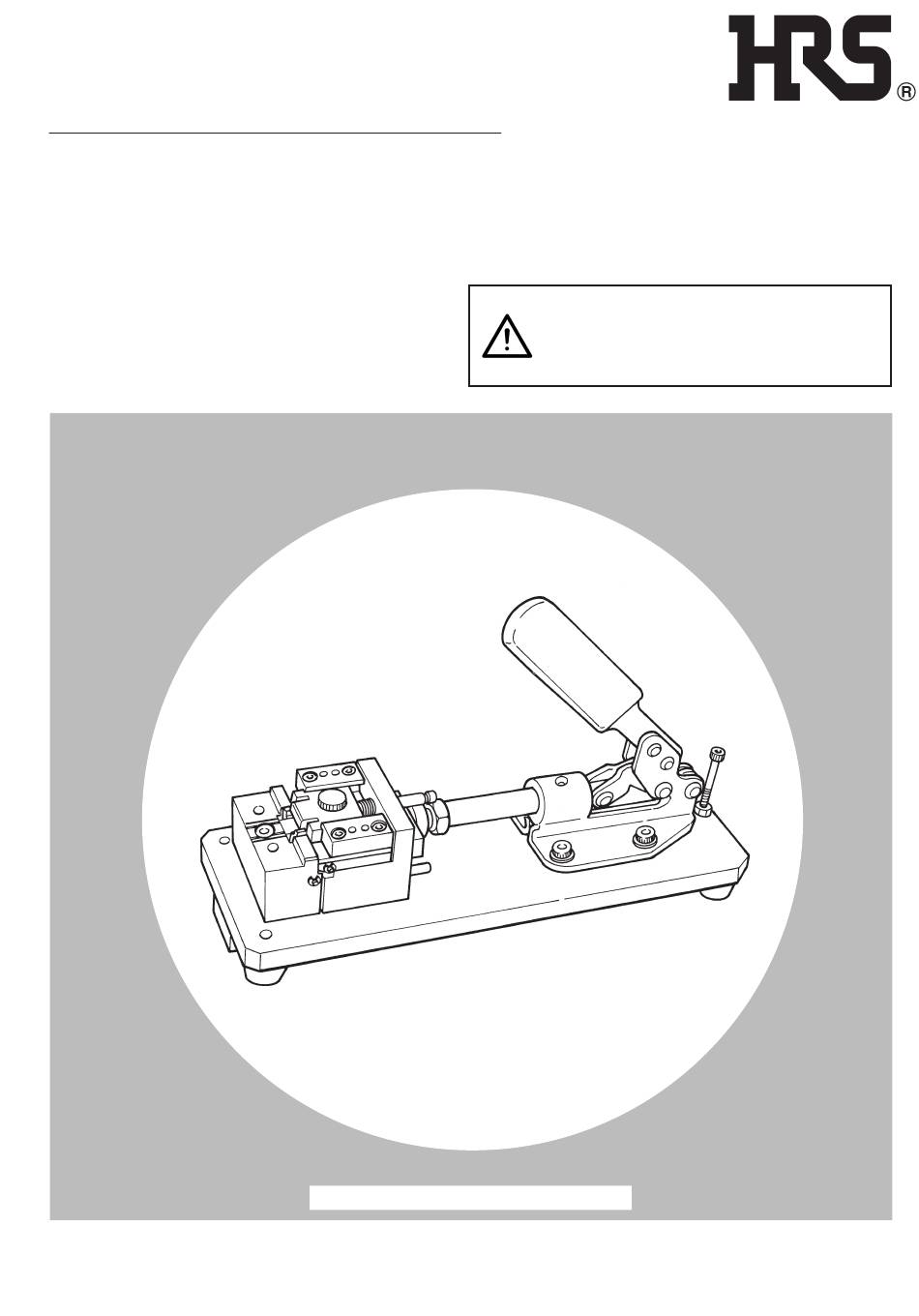

Desk cable connection jig
DF19G SERIES
Model
Applicable cable connection jig main units
DF19G-14S/PR-MD2
DF19G-20S/PR-MD2
DF19G-30S/PR-MD2
INSTRUCTION MANUAL
HIROSE ELECTRIC CO., LTD.
– IV –
CAUTION :
Be sure to read this Instruction Manual carefully
before using it to secure safety in operation. In
addition, save this Instruction Manual so that it is
available whenever necessary for review.
Advertisement
Table of Contents
Related Manuals for HRS DF19G Series
Summary of Contents for HRS DF19G Series
- Page 1 Desk cable connection jig DF19G SERIES Model Applicable cable connection jig main units DF19G-14S/PR-MD2 DF19G-20S/PR-MD2 DF19G-30S/PR-MD2 CAUTION : Be sure to read this Instruction Manual carefully before using it to secure safety in operation. In addition, save this Instruction Manual so that it is INSTRUCTION MANUAL available whenever necessary for review.
- Page 2 For safe operation The operators of the tool and the maintenance personnel who are in charge of maintenance and repair work are required to read the following SAFETY INSTRUCTIONS so as to avoid injury. Fully understand the descriptions given in this Instruction Manual and the warning labels attached on the tool, and follow the instructions.
-
Page 3: Table Of Contents
CONTENTS I. Specifications and configuration ................1 1. Specifications ............................1 2. Applicable product and model ......................1 3. Commendable standard of FPC dimensions ..................1 4. Configuration of desk jig components ....................2 5. Configuration of connector components ....................2 II. Checking items before operation ................3 III. -
Page 4: Specifications And Configuration
I. Specifications and configuration 1. Specifications Item Specifications Function Desk cable connection jig Dimensions 230(W) × 117(H) × 80(D) Weight Approx. 3 kg 2. Applicable product and model Applicable product Product number Connector DF19G-14S-1F DF19G-20S-1F DF19G-30S-1F Ground plate DF19G-14S-1F-GND DF19G-20S-1F-GND DF19G-30S-1F-GND DF19G-14S/PR-MD2 DF19G-20S/PR-MD2... -
Page 5: Configuration Of Desk Jig Components
Connector lamp Shank DF19G-20S/PR-MD2 9E001 MADE IN JAPAN Warning label Country of origin display Manufacturing No. display Product name display HRS No. Connector lamp Clamp lever Connector holder Connector guide Lock punch Press fitting punch Base plate Warning label Pressure block... -
Page 6: Checking Items Before Operation
II. Checking items before operation WARNING : To prevent personal accidents, extreme caution has to be taken not to allow fingers to be caught in the handle or sliding parts when crimping with this tool. Cause In case of trouble Corrective measure Checking item Checking procedure... -
Page 7: Operating Procedure
III. Operating procedure 1. Mounting the ground plate 1) Face upward signal face ② of FPC ① and polarization FPC ① mark ④ of the ground plate ③ . 2) Mount the ground plate ③ so that you do not touch Polarization mark ④... -
Page 8: Preliminary Insertion Of The Ground Plate
3. Preliminary insertion of the ground plate 1) Making FPC ① come in contact with the inside of Ground plate ③ connector main body ② , insert ground plate ③ into the FPC ① connector main body. Connector main body ② 2) Insert the ground plate so that preliminary insertion Position of preliminary position ④... -
Page 9: Setting Procedure Of The Connector
4. Setting procedure of the connector 1) Face upward polarization mark side ① and slide Connector clamp ② Check polarization connector clamp ② to the right-hand side to open it. mark ① OPEN (Slide to the right- hand side ) 2) Adjust connector main body ④... -
Page 10: Connection Work
5. Connection work WARNING : Exercise care not to allow hands, fingers or the Connector main body ① like to be caught in any of the moving parts. FPC ② 1) Making connector main body ① come in contact with the end face of the holder, press FPC ②... -
Page 11: Appearance Inspection
6. Appearance inspection Perform the appearance inspection whether the quality is satisfied when the connection work has been completed. Check that lock is performed ① . Rear side Fig. 1. Fig. 2. Fig. 3. Connector main body ② Ground plate ③ Check that lock is performed ① . (Inspecting procedure) Return the clamp lever to its home position and slide the connector clamp by fingers to open it. Perform the appearance inspection whether the connection is proper after taking out the connector. -
Page 12: Repairing Procedure In Case Of Failure Of Connection
IV. Repairing procedure in case of failure of connection Ground plate ② FPC ⑤ FPC ⑤ Connector main body ① Lock section ③ (4 places right/left) Pull out Connector main body ① Pulling tool : DF-C-PO (B) Optional ④ Ground plate ② 1) Turn over the connector main body which has been failed in connection. -
Page 13: Precautions In Handling The Jig
V. Precautions in handling the jig 1) Never apply any physical impact to the jig by tapping or dropping from an elevated place. 2) Never crimp any material other than applicable connectors and applicable ground plates given in this Instruction Manual. - Page 14 MEMO - 11 -...
- Page 15 Instruction Manual Number TAD-P6629 Date of issue March 2000 Date of revision December 2013 Edition number Second edition CAUTION (1) No part of this manual may be reproduced without the permission of Hirose Electric Co., Ltd. (2) Description in this manual is subject to change without notice. (3) This Instruction Manual has been prepared for clarify.
- Page 16 HIROSE ELECTRIC CO.,LTD. 5-23, OSAKI 5-CHOME, SHINAGAWA-KU, TOKYO 141-8587, JAPAN PHONE: 81-03-3491-9741 FAX: 81-03-3493-2933 http://www.hirose.com 13.12 Printed in Japan – V –...
