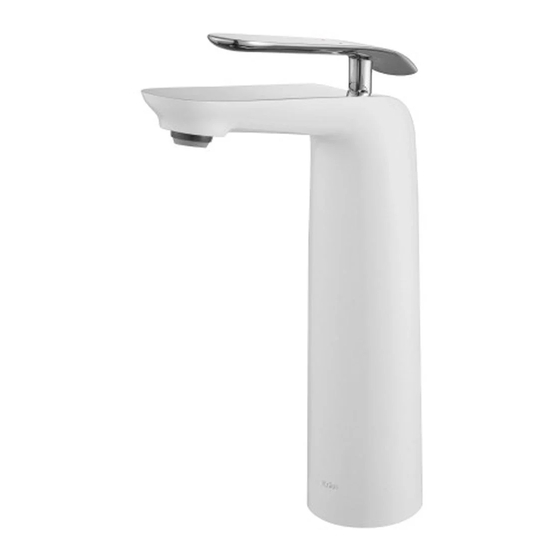

- Page 1 I N S TA L L AT I O N MA N UA L Seda™ Single Lever Vessel Faucet FVS-1820 www.kraususa.com I toll free: 1.800.775.0703 I © 2014-2015 Kraus USA Inc. I REV. August 6, 2015...
- Page 2 Thank you for purchasing Kraus We would like to take this opportunity to thank you for your business with Kraus USA. It is our sincere hope that you are completely satisfied with your experience. We welcome any questions or comments you may have, and will be glad to assist you in the future.
-
Page 3: Prior To Installation
Prior to Installation: • Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800- 775-0703 for a replacement • Turn off the hot and cold water supply at the angle stops and turn on the old 1 1/4-18UNF-2A faucet to release any built up pressure. - Page 4 Diagram and Parts List A. Faucet Body D. Hot & Cold Waterlines B. Base O-Ring E. Adjustable Aerator (factory-installed) F. Aerator Key C. Mounting Hardware: G. Hex Wrench C1. Rubber & Metal O-Washer C2. Mounting Nut C3. Mounting Screws...
- Page 5 Faucet Dimensions 2.3” 7.44” 58mm 189 mm 5” 129 mm 2.28” 58 mm 1.37” 1.37” 35 mm 35 mm...
-
Page 6: Step 2: Install Faucet
Step1 Step2 Step 1: Remove mounting hardware and install waterlines Remove mounting hardware (C) from faucet body (A). Place faucet body (A) on a soft cloth. Secure hot & cold waterlines (D) at the base of the faucet (hand- tighten, then secure with ¼ turn of adjustable wrench) A. - Page 7 ” - Step3 Step4 Step 3: Secure faucet Step1 Step1 Step2 Step2 After adjusting direction of faucet body (A), tighten mounting nut (C2) with adjustable wrench. Secure mounting nut (C2) by tightening mounting screws (C3) with a Phillips head screwdriver Step4 Step 4: Connect waterlines to main valve Thread hot &...
- Page 8 Replacement Part List - FVS-1820 1. Metal Handle 9. Base O-Ring 2. Set Screw 10. Rubber & Metal O- Ring 3. Cartridge Cover 11. Mounting Nut 4. Cartridge Sleeve 12. Mounting Screw 5. Metal O-Ring 13. Adjustable Aerator 6. Rubber Washer 14.
-
Page 9: Troubleshooting
Trouble - Shooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: P R O B L E M C A U S E A C T I O N Leakage under the Locking nut (7) has Loosen set screw (2) - Page 10 If Kraus is unable to provide a replace- ment and repair is not practical or cannot be made in timely fashion, Kraus may elect to refund the purchase price in exchange for the return of the product.
- Page 11 NON-APPLICABILITY OF THIS WARRANTY By the purchase and use of our products, you agree that Kraus is not liable for incidental, consequential or special damages associated with the return, replacement, installation or use of your product. This includes freight costs, cartridge replacement, labor, travel time,...
