SimCom SIM800 Hardware Design page 42

Module
Note: According to the traditional 5*5 keypad matrix, when there are unused KBCs or KBRs, user can execute
AT command to define unused KBCs and KBRs as GPIO, for details please see the document [1].
Module supports a new keypad connection, it can support 5*5*2 amount 50 keypads, meet full keyboard demand,
and the connection diagram is as follow:
Note: Do not change the 20KΩ resistor in the diagram.
Customer should add a resistor to enhance the ESD performance and the value of resistor should be less than 1KΩ,
the connection diagram is shown in figure 41 as an example.
SIM800_Hardware Design_V1.10
KBC0
KBC1
KBC2
KBC3
KBC4
KBR0
KBR1
KBR2
KBR3
KBR4

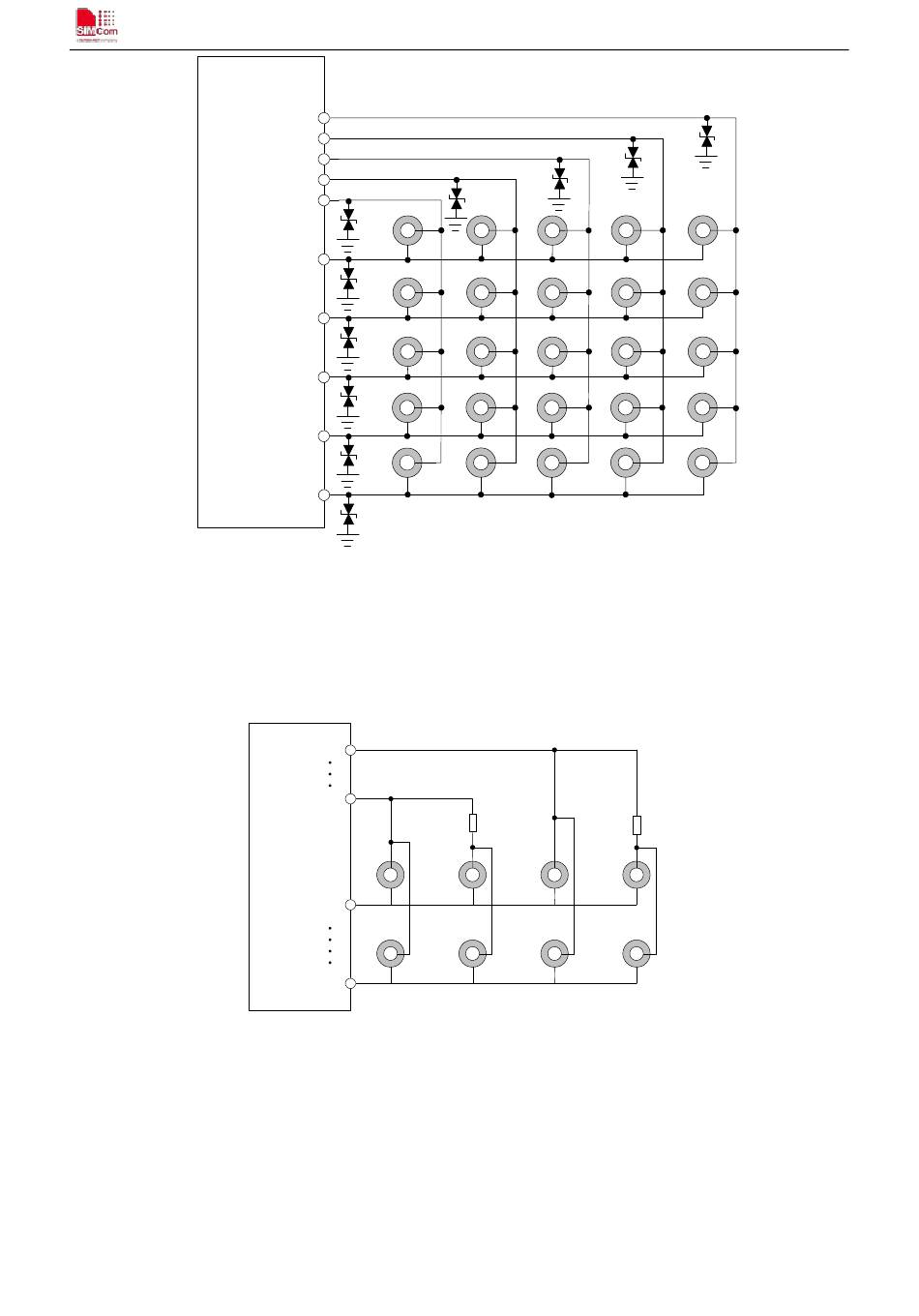

Figure 37: Traditional keypad reference circuit
KBC0
KBC4
Module
KBR0
KBR4
Figure 38: Extended keypad reference circuit
42
Smart Machine Smart Decision
20K
20K
2018-08-13
