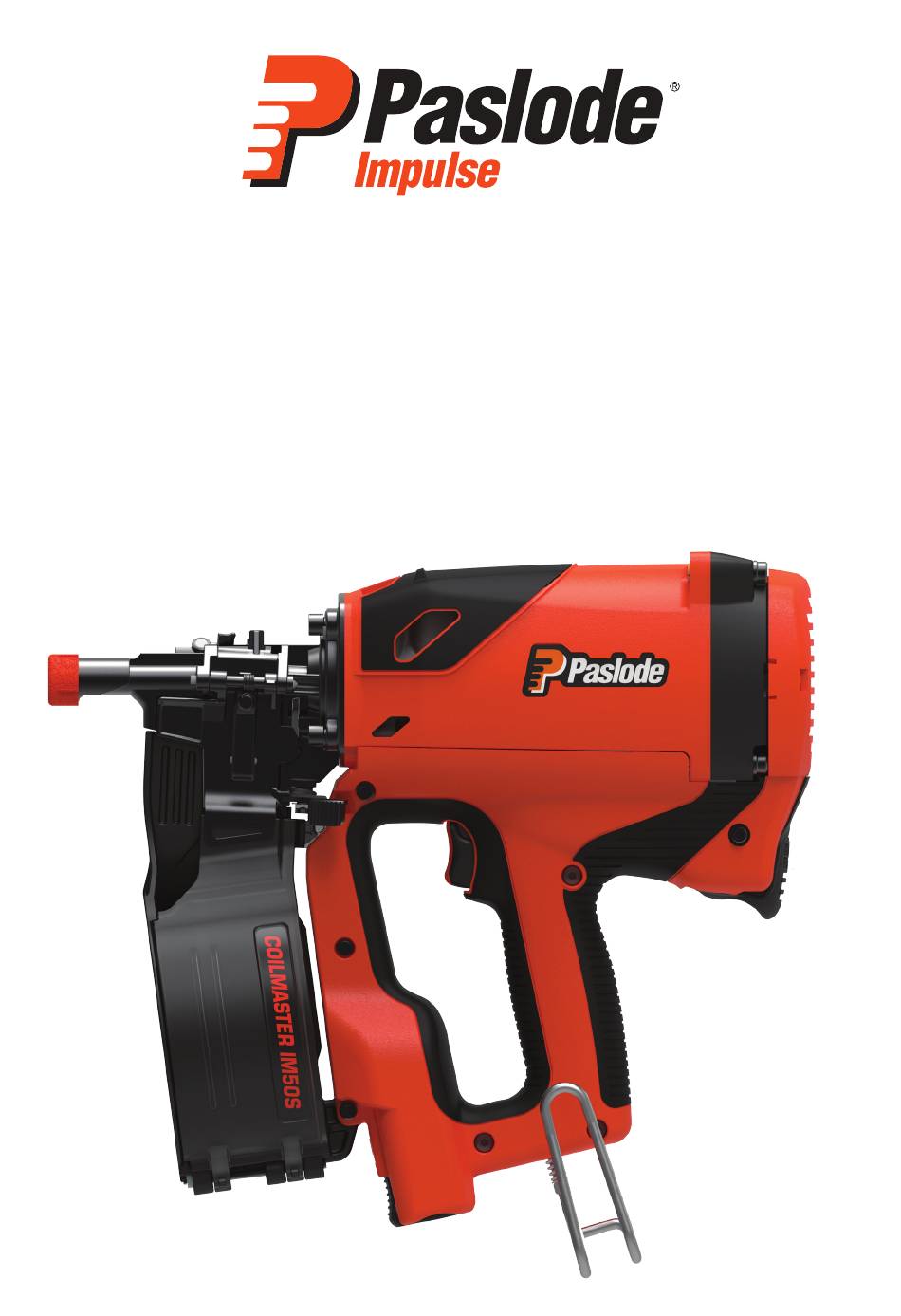

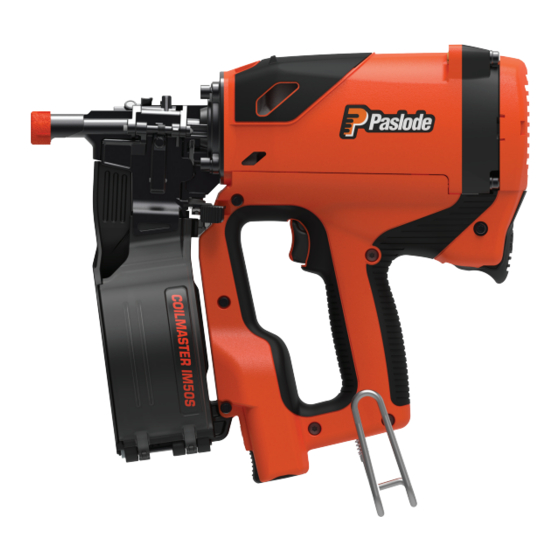

- Page 1 PASLODE IMPULSE COILMASTER IM50S MANUAL ANZ Product Code B40001...
-
Page 2: Table Of Contents
TABLE OF CONTENTS GENERAL SAFETY INSTRUCTIONS TOOL SAFETY INSTRUCTIONS BATTERY SAFETY & CHARGING FUEL CELL SAFETY TOOL OVERVIEW FUEL CELL LOADING PROCEDURE CORRECT TOOL OPERATING PROCEDURES PREPARING AND USE OF TOOL TROUBLESHOOTING TOOL MAINTENANCE TOOL SPECIFICATIONS SCHEMATICS ACCESSORIES IM50S COILMASTER MANUAL... -
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS Congratulations on the purchase of your new Paslode Cordless IM50S CoilMaster Nailer. MAINTENANCE The Impulse system consists of: tool, fuel cell, battery, charger and fasteners. In the interests of operator Restrict Field Maintenance to the following: and system safety, the tool, fasteners and the fuel... -
Page 4: Tool Safety Instructions
REMOVING FASTENERS. ALWAYS REMOVE THE THE MANUFACTURER. FUEL CELL AND BATTERY BEFORE CHECKING THE TOOL. 22. ONLY USE PASLODE SPECIFIED CONSUMABLES, BATTERIES AND FUEL CELLS. NEVER OPERATE THE IMPULSE COILMASTER IF PARTS ARE LOOSE, DAMAGED OR MISSING. 23. IF THE TOOL MISFIRES, ALWAYS REMOVE THE BATTERY PRIOR TO EXAMINATION OF THE TOOL. -
Page 5: Battery Safety & Charging
Puncture or attempt to open battery case packaging. Please also observe possibly more detailed or cells. national regulations. For the transport of Paslode fuel cells use UN Code Store battery where it will be subjected to UN3478. temperatures above 49°C (120°F). -
Page 6: Fuel Cell Safety
Skin contamination should be removed with soapy water. FUEL CELL CHECK Paslode Impulse fuel cells are marked with If symptoms persist, seek medical assistance. a “Best Use Before” date on the bottom of the can. For maximum performance use fuel before the “Best Use Before”... -
Page 7: Tool Overview
TOOL OVERVIEW DEPTH OF DRIVE ADJUSTMENT ON BOARD SPARE NO-MAR TIP FLASHING GREEN = CHARGED FLASHING RED = NEEDS CHARGING COLLATION TEAR OFF SUPPORT POST SOFT RUBBER HAND-GRIP = 200 nails 2.3 - 2.87mm L 32mm to 50mm Smooth, Ring and Screw ADJUSTABLE BELT HOOK Type of head: Flat, Dome IM50S COILMASTER MANUAL... -
Page 8: Fuel Cell Loading Procedure
FUEL CELL LOADING PROCEDURE ALWAYS REMOVE BATTERY, FUEL CELL AND FASTENERS WHEN SERVICING OR CLEARING A JAM. ONLY USE PASLODE’S SPECIALLY FORMULATED FUEL, FAILURE TO DO SO MAY DAMAGE YOUR TOOL, CAUSE MISFIRES AND VOID WARRANTY. Fuel cell Load shots expiry... -
Page 9: Correct Tool Operating Procedures
CORRECT TOOL OPERATING PROCEDURES = 200 nails 2.3 - 2.87mm L 32mm to 50mm Head type: Flat and Dome Coating: Zinc plate, galv, stainless steel CORRECT NAIL LOADING PROCEDURE Open nose gate Open magazine cover Place coil into magazine Feed nails into nose 1. -
Page 10: Preparing And Use Of Tool
PREPARING AND USE OF TOOL ALWAYS WEAR EYE AND HEARING PROTECTION ADJUSTING THE DEPTH OF DRIVE - THUMB WHEEL ROTATION Counter Sunk Proud INCREASE DECREASE DEPTH OF DRIVE DEPTH OF DRIVE FOR FIXING METAL CONNECTING PLATES Metal Plate Surface Instructions: Use 32mm hardened ballistic (cone) tip nails. -
Page 11: Troubleshooting
TROUBLESHOOTING ALWAYS REMOVE BATTERY, FUEL CELL AND FASTENERS WHEN SERVICING OR CLEARING A JAM. FIRING THE TOOL Tool Working Correctly PROBLEM: No fan and SOLUTION: does not fire • Check for flat battery • Remove and reinsert battery to reset tool PROBLEM: SOLUTION: Fan runs but tool... -
Page 12: Tool Maintenance
TOOL MAINTENANCE ALWAYS REMOVE BATTERY, FUEL CELL AND FASTENERS WHEN SERVICING OR CLEARING A JAM. CLEARING A FASTENER JAM Push latch to open Clear nails. Use gloves to Return driver blade magazine gate avoid injury during removal to top rest position of broken nails CLEANING THE AIR FILTER Use a flat bladed screw... - Page 13 ALWAYS REMOVE BATTERY, FUEL CELL AND FASTENERS WHEN SERVICING OR CLEARING A JAM. Use Paslode Degreaser and Oil to perform service and maintenance on your tool. Using a flat bladed screw driver, Take off head cap, undo cap Remove cap #4...
- Page 14 TOOL MAINTENANCE cont. ALWAYS REMOVE BATTERY, FUEL CELL AND FASTENERS WHEN SERVICING OR CLEARING A JAM. Remove and clean cylinder remove Oil all moving surfaces Return driver to top rest position deposits. Always angle backwards to drain correct, avoid washing deposits into lower cylinder Spray and allow to stand for Oil rings #15...
- Page 15 TOOL MAINTENANCE cont. ALWAYS REMOVE BATTERY, FUEL CELL AND FASTENERS WHEN SERVICING OR CLEARING A JAM. Tighten cap screws #58 Oil feed piston externally every Refit magazine #92 5,000 shots #50 Replace magazine cap screw Replace cap #3 and screws #4, You are ready to refit the head cap #91and nut #72 tighten...
-
Page 16: Tool Specifications
TOOL SPECIFICATIONS PASLODE IMPULSE IM50S COILMASTER MAX FIRE RATE FIRE RATE TEMPERATURE RANGE hours seconds Celcius 1000 2 nails 7°C to 40°C (104°F) TOOL TOOL MAGAZINE NAIL COLLATION SHANK TYPE OF DURABILITY SIZE WEIGHT CAPACITY SIZE TYPE TYPES HEAD Unit 0º... -
Page 17: Schematics
SCHEMATICS PARTS LEGEND PASLODE IM50S Li COILMASTER B40001 919042 1 Grill ● 503231 1 O-Ring, Feed Piston Shaft 900455 1 Filter 919052 1 Piston, Feed 901065 4 Screw SHC 10-24 x 1-1/4 919102 1 Pawl, Feed 919040 1 Cap... - Page 18 SCHEMATICS cont. PASLODE IMPULSE IM50S COILMASTER B40001 ⚫ SERVICE KIT 010031 Torque Values (in/lb) Item Torque Item Torque 55-60 30-35 30-35 30-35 20-25 43 155-165 15-20 15-20 8-10 30-35 ⚫ 35-40 ⚫ ⚫ ⚫ ◼ ⚫ ⚫ ◼ ◼ ⚫...
- Page 19 SCHEMATICS cont. PASLODE IMPULSE IM50S COILMASTER B40001 ◼ Torque Values (in/lb) Item Torque Item Torque 30-35 18-22 25-30 55-65 ⚫ All parts sold as single items unless described as a pack, set or forms part of an assembly (multiple items defined within a box).
-
Page 20: Accessories
9/64” Hex Key Maintenance tool 900736 5/32” Hex Key Maintenance tool 401331 Paslode Impulse Lubricating Oil B20544F Specially formulated for use in Paslode Impulse tools Impulse Tool Cleaner/Degreaser B20544L Recommended cleaner for Paslode Impulse tools For technical support contact Paslode: PASLODE AUSTRALIA...
