Cleaning Procedure

www.paslode.com

Need help?

Do you have a question about the IM200F 18 and is the answer not in the manual?

Questions and answers

Summary of Contents for Paslode IM200F 18

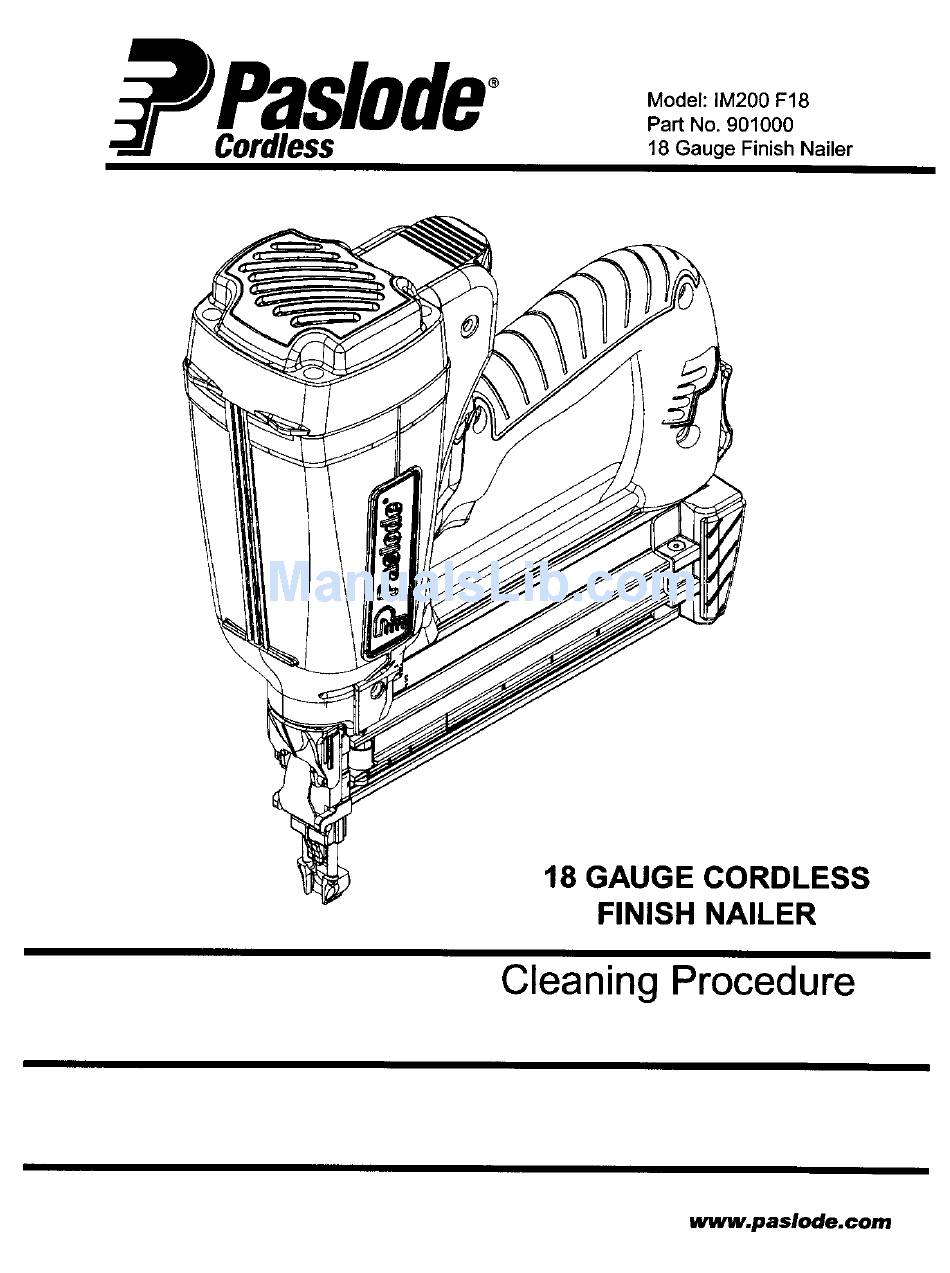

Page 1 Paslode Model: IM200 F18 Part No. 901000 18 Gauge Finish Nailer 18 GAUGE CORDLESS FINISH NAILER Cleaning Procedure www.paslode.com...
Page 2 This procedure provides a simple but effective Este procedimiento representa una forma sencilla pero way to clean your Paslode Cordless tool and eficiente de limpiar su herramienta Paslode Cordless maintain reliable operation. Regular cleaning para que mantenga un funcionamiento confiable.
Page 3 Step 2 Remove the Cap, Filter, and Grill as one assembly, and set aside. The Filter may be removed by lifting the Grill offthe Cap. Clean the Filter with a mild soap solution, or replace if necessary. Paso 2 Quite la tapa, el filtro y la rejilla como una sola unidad, y col6quela a un lado.
Page 4 PELIGRO Nunca se debe hacer funcionar la herramienta Paslode Cordless a menos que los 4 tornillos de cabeza hueca esten apretados firmemente en la tapa del cilindro.Si no observa esta advertencia pueden ocasionarse danos a la herramienta incendio y...
Page 5 Step 6 Spray the Cylinder Head with Degreaser Cleaner. Allow the dirt and debris to drip off. Paso 6 Aplique limpiador de seguridad a la tapa del cilindro. Permita que se escurran la suciedad y los dep6sitos. Step 7 Using a clean, lint-free rag, wipe offany remaining cleaner or dirt.
Page 6 Seal Rings. Set the Cylinder Head Assembly aside. Note: Paslode Impulse Oil is specially formulated for use in the Paslode Cordless Tool. The use of other types of lubricants may cause rapid build-up of combustion residue or result in premature part failure.
Page 7 Step 10 Spray a liberal amount of Degreaser Cleaner into the inside of the Sleeve and Combustion Chamber. Invert the Motor Assembly, and let excess cleaner and dirt drain out. Paso 10 Aplique una buena cantidad de limpiador de seguridad dentro della camisa y de la c_mara de combusti6n.
Page 8 Step 12 With Motor Assembly tilted up, squeeze 3-4 drops of Im pulse Oil into Sleeve (Area "A") and 4-5 drops onto lower lip of Combustion Chamber (Area "B") and apply 4-5 drops around the top of the Combustion Chamber (area C).
Page 9 Vuelva a armar la herramienta Paslode Cordless siguiendo en el orden inverso, los pasos del 1 a 4 en las paginas 2 a 3. Nota sobre el rearmado:...
Page 10 Some smoke may be noticeable from Operating the Paslode Cordless tool with a loose the exhaust ports on the first few cycles as excess or missingcap assembly can result in the escape...
Page 11: Cleaning Interval
If reduzca el intervalo a la frecuencia menorsugerida. Si es it is apparent that the Paslode Cordless tool is not aparente que la clavadora Paslode Cordless no necesita in need of cleaning atthe scheduled time, increase limpieza en el momento sugerido, aumente los intervalos the interval to the next longer period.
Page 12 IM200 F-18 Cleaning Procedure 888 Forest Edge Drive Vernon Hills, Illinois 60061 www.paslode.com Printed in U.S.A. 901071-1 10/01 ©2001, Illinois Tool Works, Inc.
