Page 1: General
IGA 15 plus IMPAC-Pyrometer Betriebsanleitung · User Manual Operation Manual · Betriebsanleitung Proven Quality... -
Page 2: Table Of Contents
IMPAC pyrometer IGA 15 plus Content General..........................2 Information about the user manual ..................2 Limit of liability and warranty ....................2 Copyright..........................2 Legend ..........................4 Terminology ........................... 4 Disposal / decommissioning ....................4 Technical data ........................4 Overview ..........................5 Instrument....................... -
Page 3: Legend
IMPAC pyrometer IGA 15 plus Legend Note: The note symbol indicates tips and useful information in this manual. All notes should be read with regard to an effective operation of the instrument. Security note laser beam: Indicates to the danger of a built-in laser targeting light. -
Page 4: Overview

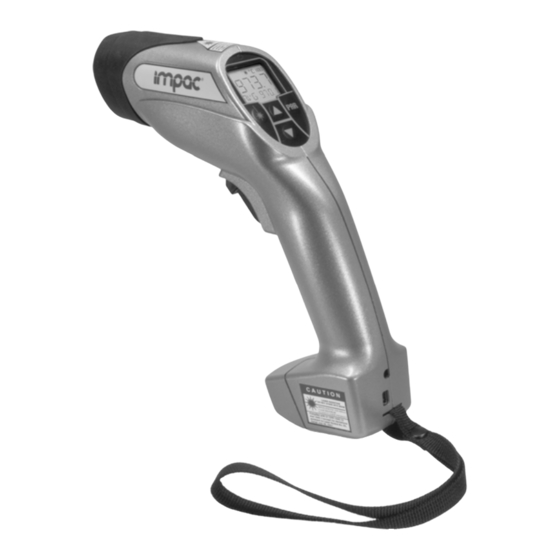

Appropriate use The portable IMPAC pyrometer IGA 15 plus is a robust, digital and highly accurate infrared ther- mometer with built-in data logger (750 temperature values) for non-contact temperature measure- ment on metals, ceramics, graphite etc. with a temperature range of 250 to 1800°C. -
Page 5: Scope Of Delivery
IMPAC pyrometer IGA 15 plus Scope of delivery Instrument (incl. battery), carrying case, inspection sheet, user manual. Safety This section offers an overview about important safety aspects. Additionally in the several sections there are concrete safety aspects to avert danger. These aspects are indicated with symbols. -
Page 6: Commissioning
IMPAC pyrometer IGA 15 plus Commissioning Battery insertion Battery case For operating the IGA 15 plus a 9 V battery or 9 V rechargeable battery Battery case cover is necessary. For insertion of the battery remove the locking screw Battery connector and the battery case cover. -
Page 7: Spot Size
IMPAC pyrometer IGA 15 plus Spot size The size of the measuring spot of the pyrometer and with that the minimum size of the measuring object is dependent on the distance. The smallest spot size of 4 mm in diameter is achieved only in a measuring distance of 800 mm. -
Page 8: Display Functions / Setting Keys
IMPAC pyrometer IGA 15 plus Display functions / Setting keys Additionally to the temperature measurement the IGA 15 plus provides some more functions which are necessary for a correct measurement and usefully enlarging the functionality of the pyrometer. Indication °C or °F... -
Page 9: Parameter Description / Adjustments
Typical emissivity values of various common materials for the spectral range of the IGA 15 plus are listed below. The tolerance of the emissivity values for each material is mainly dependent on the surface conditions. Rough surfaces have higher emissivities. -
Page 10: Dif (Difference Temperature Function)
IMPAC pyrometer IGA 15 plus DIF (difference temperature function) If the DIF function is activated, a start temperature value is stored by pushing the trigger and the temperature difference to the actual reading is indicated. That is why the indication an be positive or negative. -
Page 11: Time
(for connecting cables and software see 13, Reference numbers accesso- ries). USB cable To connect the IGA 15 plus with a PC, a standard cable USB-A to mini-USB (5-pole) is necessary (reference numbers see 13, Reference numbers accessories). -
Page 12: Software Portawin (Accessory)
IMPAC pyrometer IGA 15 plus Software PortaWin PortaWin is a Windows based software which enlarges the functions of the pyrometer, the min. requirement is Windows XP. To install the software, double-click the setup.exe file on the installa- tion CD. Starting the program will show the following icons with the corresponding functions: Transfers the stored measured values of the pyrometer to the PC. -
Page 13: Transport, Packaging, Storage
It is also possible to use standard cleaning tissue for glasses or camera lenses. It is recommended to send the pyrometer every two years to LumaSense for recalibration. Trouble shooting Before sending the pyrometer for repair, try to find the error and to solve the problem with the help of the following list. -
Page 14: Reference Numbers
IMPAC pyrometer IGA 15 plus Reference numbers Pyrometer: 3 887 520 IGA 15 plus (with USB interface) Accessories: 3 749 150 NiMH rechargeable battery 9 V 3 806 540 Universal battery charger for 9 V batteries 3 858 490 Battery charger for connection to charging connector...
