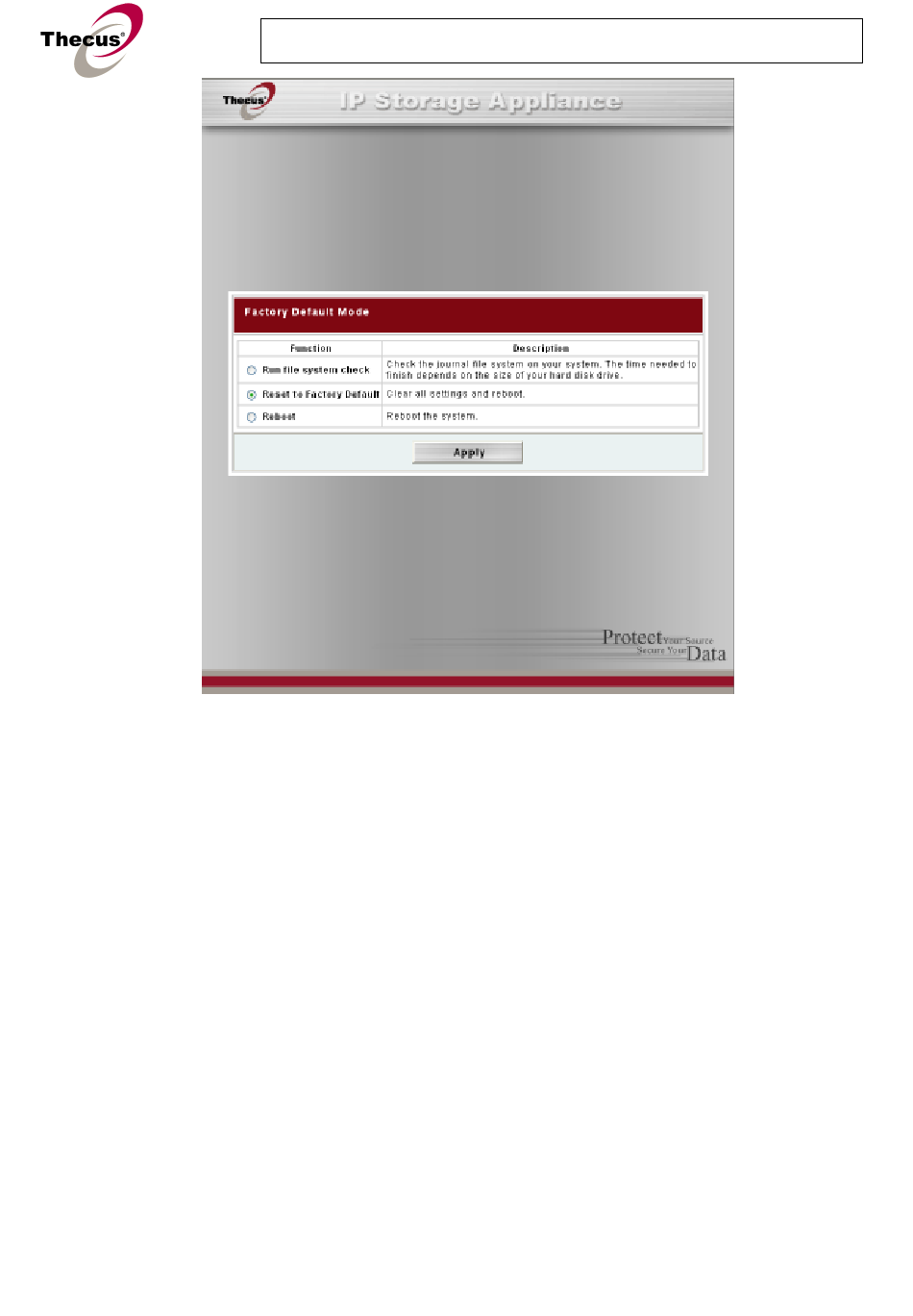

Please select "Reset to Factory Default" option and press the apply button, the system will be
reset.
When select "Reset to Factory Default" option, the system will be reset. Below are the default
system settings:
Admin password → admin
WAN IP address → 192.168.1.100
WAN IP Gateway → 192.168.1.1
LAN Jumbo Frame Support → Off
LAN IP → 192.168.1.100
LAN Jumbo Frame Support → Off
HTTP Port → 80
HTTPS port → 443
2-5. Suppose the N4100+ is bad. If the power LED glows blue and both system and power
fans work fine after power button pressed, the motherboard needs to be checked and
repaired. Otherwise, the power supply unit has problems.
N4100+ simple diagnosis flowchart
N4100+ simple diagnosis flowchart
2/3 10/23/2008
