Thecus N4800 Manual
Mb & dram assemble steps
Hide thumbs
Also See for N4800:
- User manual (165 pages) ,
- Quick installation manual (6 pages) ,
- User manual (132 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Thecus N4800
Summary of Contents for Thecus N4800

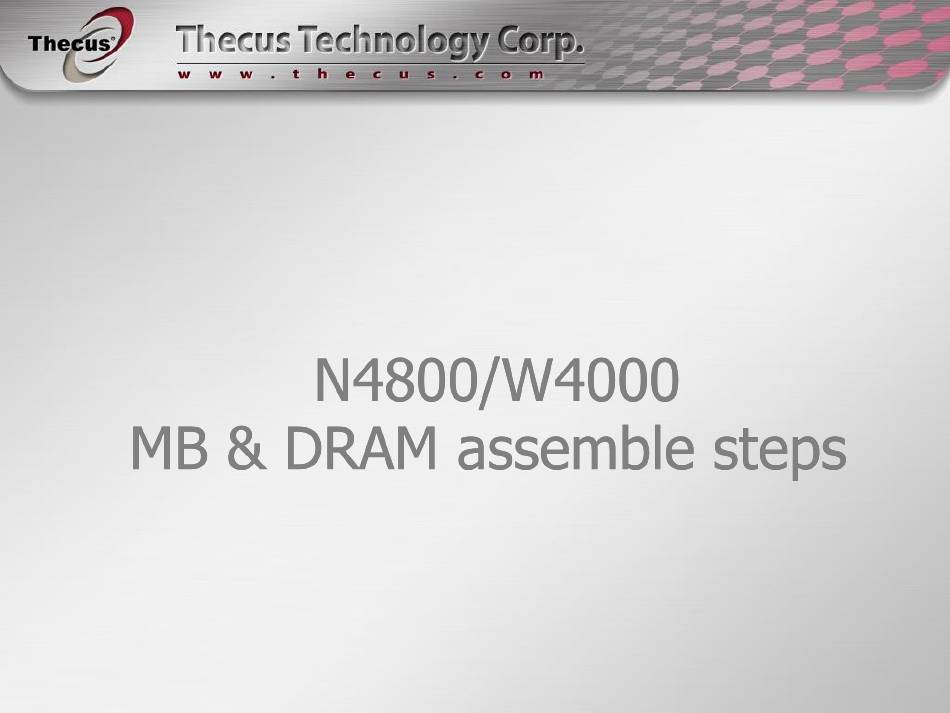

- Page 1 N4800/W4000 MB & DRAM assemble steps V1.2 Mar 09, 2015...
- Page 2 Remove top cover 3 screws (RED Remove Li Battery slot panel screw(BLUE) (optional) M3*4mm 4304001111 背板螺絲 For BTN Board Round Head,Ni Coating...
- Page 3 Remove 4 back panel screws...
- Page 4 Remove 2 MB screws M3*4mm 4304001111 背板螺絲 For BTN Board Round Head,Ni Coating...
- Page 5 Remove FAN Cable (RED) Remove SATA DOM/SSD/HDD cable (BLUE) Remove 4Pin Power Cable (if) (Yellow)
- Page 6 1. Remove SATA & SATA power cable from MB. 2. Slide MB out and replace DRAM module * If install single DRAM module, it is must install at upper DIMM slot. SATA1 SATA2 SATA3 SATA4...
- Page 7 After the MB is slid out, DRAM will be displayed. Please note that DRAM is installed in the upper slot.
- Page 8 If replacing DRAM is needed, please spread out the DRAM lock latches. So the DRAM will pops up. Remove the original DRAM. And then insert the new DRAM into the connection at an angle 45 degrees. Press down on the DRAM so that it is secured with both memory lock latches.
- Page 9 電池 微動開關 CABLE CABLE Additional check point 1...
- Page 10 Additional check point 2...
- Page 11 Button cable (RED line) Additional check point 3 Battery cable...
- Page 12 Additional check point 4...
- Page 13 Additional check point 5...
