1. Purpose: Upgrading from N7700PRO to N7700PROv2
2. Procedures

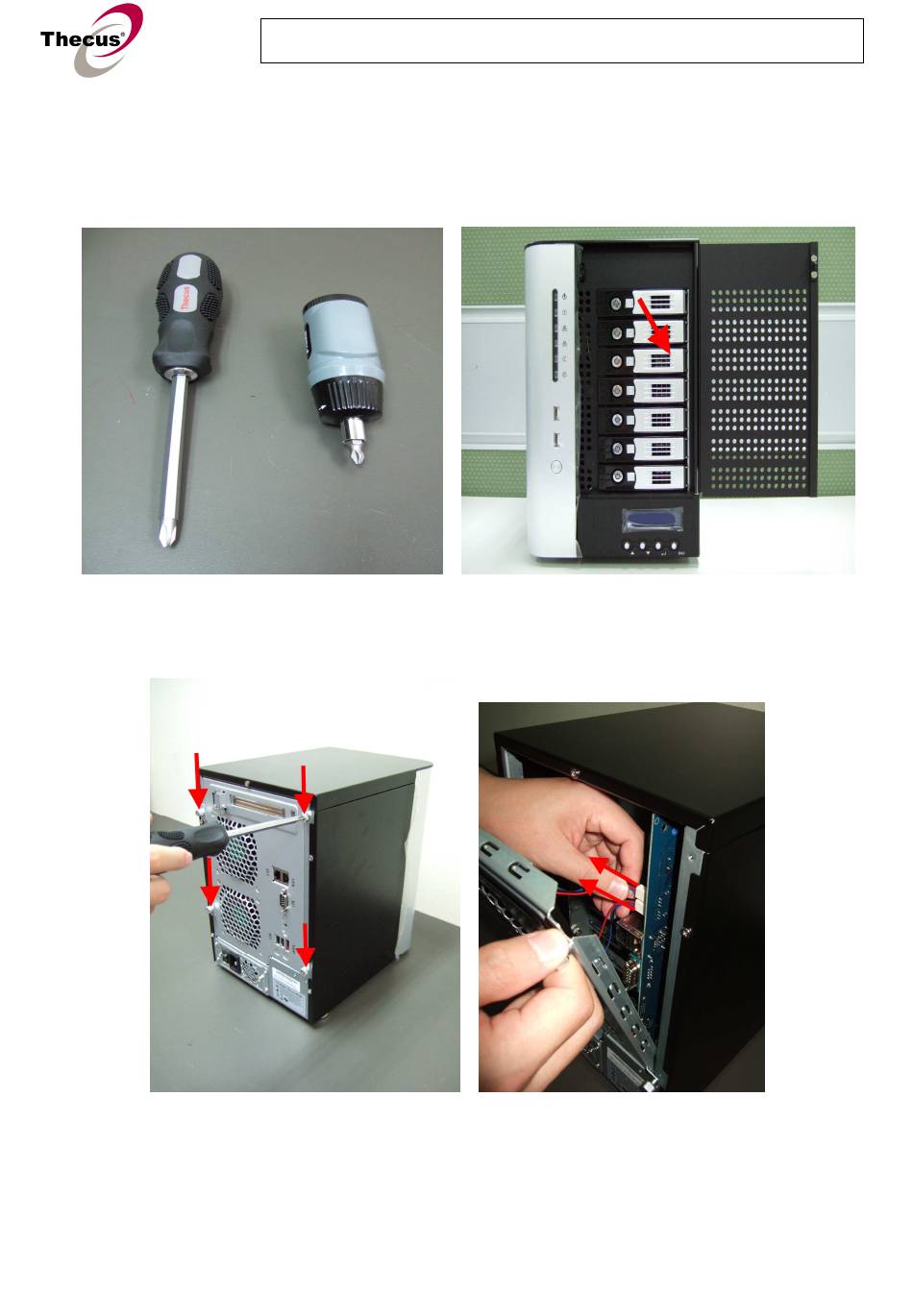

2-1. Prepare for two screw drivers. Pull out HDD trays one by one.
2-2. Loosen four screws on back plate by a screw driver, and then pull out the back plate
module. Detach the fan header.
N7700PRO DOM upgrading V1 to V2 SOP
N7700PRO DOM upgrading V1 to V2 SOP
1/7
05/03/2012

Advertisement

loading
Need help?

Need help?

Do you have a question about the N7700PRO and is the answer not in the manual?

Questions and answers

Related Manuals for Thecus N7700PRO

Summary of Contents for Thecus N7700PRO

  • Page 1 N7700PRO DOM upgrading V1 to V2 SOP 1. Purpose: Upgrading from N7700PRO to N7700PROv2 2. Procedures 2-1. Prepare for two screw drivers. Pull out HDD trays one by one. 2-2. Loosen four screws on back plate by a screw driver, and then pull out the back plate module.
  • Page 2 N7700PRO DOM upgrading V1 to V2 SOP 2-3. Loosen two screws on back plate by a short screw driver, and then slide out the motherboard. N7700PRO DOM upgrading V1 to V2 SOP 05/03/2012...
  • Page 3 N7700PRO DOM upgrading V1 to V2 SOP 2-4. You may have to lift up the backplane board to slide out the motherboard, then loosen the screw on the motherboard, and then detach the backplane board from the motherboard. N7700PRO DOM upgrading V1 to V2 SOP...
  • Page 4 N7700PRO DOM upgrading V1 to V2 SOP 2-5. Detach case open wire from the motherboard to slide out the motherboard. 2-6. Detach ATX 20 pin power connecter to slide out the motherboard. N7700PRO DOM upgrading V1 to V2 SOP 05/03/2012...
  • Page 5 N7700PRO DOM upgrading V1 to V2 SOP 2-7. Detach two flat cable connectors to slide out the motherboard. NOTICE: When you want to connect the flat cable connectors back, please make sure that the pink lines on the flat cable connectors are at the inside of the NAS box.
  • Page 6 N7700PRO DOM upgrading V1 to V2 SOP 2-8. Detach ATX 12V power connectors completely slide out the motherboard from the chassis. N7700PRO DOM upgrading V1 to V2 SOP 05/03/2012...
  • Page 7 N7700PRO DOM upgrading V1 to V2 SOP 2-9. Detach the original Dual DOM from motherboard and then install the new 512 MB DOM on it. 2-10. Reverse the above steps from 2-8 to 2-2 to combine the NAS box back.
